100W LED Teeb pom kev zoo

Lus piav qhia luv luv:

VKS Ozias Series niaj hnub ncej sab saum toj lub teeb tau txais kev yooj yim, dav dav, tsim zoo nkauj, 30/60/90 ° / HOM 3 cov kab teeb no kom tau raws li cov kev xav tau sib txawv rau cov teeb pom kev zoo nkauj, siv hom Lumileds / Osram3030 coj nti thiab qiv nyiaj zoo, kev ua haujlwm zoo tuaj yeem ncav cuag 130lm / w, dav siv hauv thaj chaw nyob, chaw ua si, villas, ob sab ntawm txoj kev, kev lag luam taug kev thiab lwm qhov chaw.


  • Lub zog::50-100 W
  • Input voltage::AC90-305V 50/60Hz
  • Lumen::6500-13000 hli
  • Beam Angle::30/60/90 ° / HOM 3
  • IP Tus Nqi:IP66
  • NTAUB NTAWV

    SPECIFICATON

    daim ntawv thov

    Download tau

    Khoom cim npe

    Feature

    1

    Kev ua qauv yooj yim, Beautify thiab brighten ib puag ncig
    VKS Ozias Series niaj hnub ncej saum lub teeb tau txais kev yooj yim, siab dav, zoo nkauj tsim nyob rau hauv ib qho, nrog cov qauv yooj yim ntawm kev qhia kom tau raws li cov neeg xav tau kev xav, kev xav thiab kev xav tau ntawm qhov chaw ib puag ncig, uas yog qhov nrov tsim qauv hauv lub neej niaj hnub no, kev tsim qauv yooj yim thiab dav, Nws tuaj yeem siv rau hauv thaj chaw nyob, chaw ua si, villas, ob sab ntawm txoj kev, kev lag luam taug kev thiab lwm qhov chaw.Nws yog ib feem tseem ceeb ntawm kev tsim kho hauv nroog niaj hnub.

    2

    Lub kaum sab xis sib txawv rau qhov yuav tsum tau ua rau Toj roob hauv pes teeb pom kev zoo
    VKS Ozias Series coj ncej teeb pom kev zoo sab saum toj, 30/60/90 ° / HOM 3 cov nqaj kaum sab xis no muaj los ua kom tau raws li qhov xav tau ntawm ntau qhov chaw teeb pom kev zoo los ntawm cov teeb pom kev zoo, cov khoom tseem ceeb teeb pom kev zoo rau lub vaj teeb pom kev zoo, hloov tau rau qhov xav tau tsis muaj dej nyab teeb pom kev zoo, tshwj xeeb tshaj yog tsim rau square hmo ntuj scene, vaj teeb pom kev zoo, kho kom zoo nkauj sab hauv, sab nraum zoov teeb pom kev zoo.

    3

    Tsawg lumen-depreciation, dhau kev tiv thaiv tam sim no, lub neej ua haujlwm ntev
    VKS Ozias Series coj ncej sab saum toj teeb pom kev zoo nrog me me lumen depreciation, lub teeb tsis ua hauj lwm tsawg tshaj li 3% ib xyoo, tseem ua tau raws li cov kev cai ntawm kev siv illuminance mus rau 10 xyoo, muaj peev xwm paub nyob rau hauv cov xwm txheej ntawm ua tau raws li qhov yuav tsum tau ntawm lub sij hawm sib txawv teeb pom kev zoo. muaj peev xwm txo tau lub zog, txuag hluav taws xob, hluav taws xob hluav taws xob hluav taws xob yog tag nrho cov khoom siv zoo, txhua lub LED muaj kev tiv thaiv dhau tam sim no ib leeg, tsis tas yuav txhawj txog kev puas tsuaj.

    4

    130lm/w 150lm/w High light efficiency thiab txuag zog
    VKS Ozias Series coj ncej thiab ncej sab saum toj teeb siv hom Lumileds / Osram3030 coj nti thiab cov qiv nyiaj zoo, qhov ua tau zoo tuaj yeem mus txog 130lm / w, txawm 150lm / w, kev siv hluav taws xob piv nrog cov tsoos ncej saum toj kawg nkaus txo los ntawm ib nrab, rau ua tiav kev txuag hluav taws xob ntsuab thiab kev tiv thaiv ib puag ncig, xim rendering dua li cov teeb pom kev hauv vaj ib txwm muaj siab dua, tuaj yeem pom meej dua.

    Specification

    Qauv

    PS-GL50W-O

    PS-GL100W-O

    Hwj chim

    50 W

    100 W

    Cov khoom loj (mm)

    D452 * H542mm

    Input voltage

    AC90-305V 50/60Hz

    LED Hom

    Lumileds (Philips) SMD 3030

    Fais fab mov

    Meanwell / SOSEN / Inventronics tsav tsheb

    Kev ua tau zoo (lm / W)

    130LM/W (5000K, Ra70) yeem

    Lumen tso zis

    6 500 lm

    13 000 LM

    Beam Angle

    30 / 60 ° / 90 ° / HOM 3

    CCT (K)

    3000K/4000K/5000K/5700K

    CRI

    Ra70 (Ra80 rau xaiv)

    Tus nqi IP

    IP66

    PF

    > 0.95

    Dimming

    Tsis-dimming (Default) / 1-10V Dimming / Dali dimming / RF RGBW

    Intelligent Control

    PIR

    Khoom siv

    Die-Cast + PC Lens

    Kev ua haujlwm Tenperature

    -40 ℃ ~ 65 ℃

    Cov av noo

    10% ~ 90%

    Ua kom tiav

    Hmoov Txheej

    Kev tiv thaiv Surge

    4kV kab-kab (10KV, 20KV rau kev xaiv)

    Mounting Option

    Bracket

    Warranty

    5 Xyoo

    Q'TY (PCS) / thawv

    1 Pcs

    1 Pcs

    NW (KG / carton)

    5,6kg ua

    5.8kg ua

    Carton Loj (mm)

    510 * 505 * 595 hli

    GW (KG / thawv)

    6, 3kg

    6, 5kg

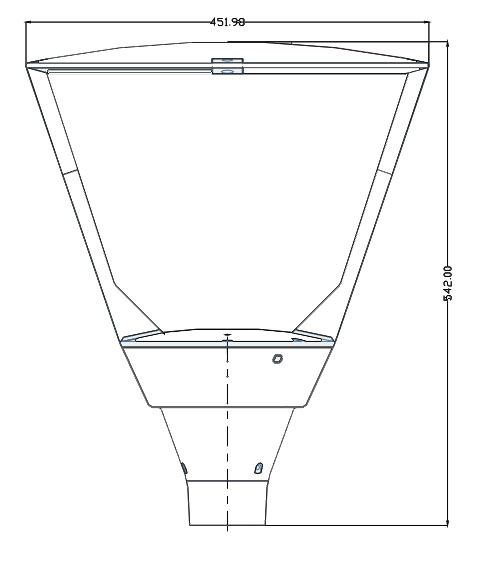

    Daim duab loj

    03

    Ntim

    02 ib

    APPLICATION

    VKS Ozias Series ncej sab saum toj lub teeb tiv thaiv qib IP66, siv lub lens zoo heev thiab cov qauv tiv thaiv glare nrog zoo tiv thaiv glare nyhuv, tsis txhob tsis xis nyob thiab qaug zog, siv lumileds / osram 3030 coj nti, tsawg lumen-depreciation, siab ntseeg thiab ntev lifespan, thiab ntxiv hom tsav tsheb, flicker-dawb, lub teeb yog xis nyob heev thaum koj taug kev hauv chaw ua si, tsev kawm ntawv, lub vaj, villas, zoos, botanical vaj, thiab lwm yam
