Airship UFO High Bay Teeb
Multi-combination Hexagonal Reflector, ACD12 Txhuas
Alloy nrog High Luminous Efficiency ntawm 150lm / W thiab siab
Zog Efficiency.

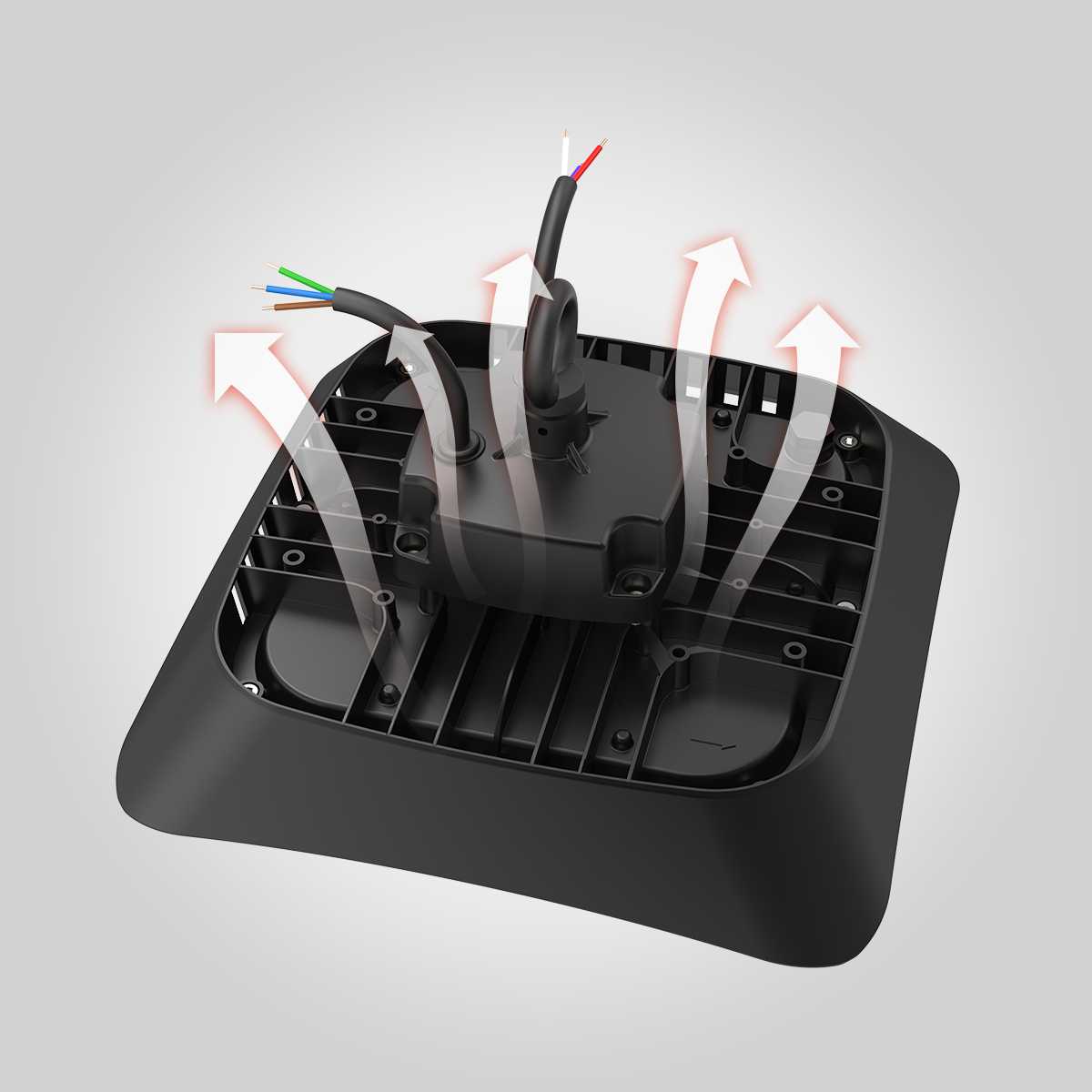

LED high bay teeb pom kev zoo yog lub zog siab nias los ntawm ADC12 aluminium alloy, nrog cov khoom siv zoo heev, zoo flowability, fillability, workability thiab corrosion kuj.LED high bay muaj qhov siab qhov tseeb, kev kho kom zoo, tuag-casting aluminium heat dissipation plhaub, convection ntawm lub qhov cua sab saud thiab qis, ceev cua sov dissipation, uas yog qhov zoo rau kev pab cuam lub neej ntawm lub teeb.
Tus thawj coj teeb lub siab bay lub kaum sab xis ntawm LED yog txog 120 °, txhawm rau ua tiav kev siv lub teeb, qhov thib ob lub teeb faib, kom ua tiav cov teeb pom kev zoo ntawm qhov kev thov, lub teeb thiab teeb yuav siv cov reflectors los tswj lub teeb nyob deb, thaj chaw, qhov chaw cuam tshuam.Qhov no LED siab bay teeb fixtures ua hauj lwm lub teeb siv multi-combination hexagonal reflector, siab optical raug, teeb luminous yam tsis muaj xim daj.Lub teeb pom kev zoo siab bay optical reflectivity ncav cuag 98%, thiab cov zis luminous efficiency ntawm tag nrho lub teeb tuaj yeem ncav cuag 150lm / W.
LED high bay teeb muaj Series cov khoom tsim, sib txawv xaiv rau koj.

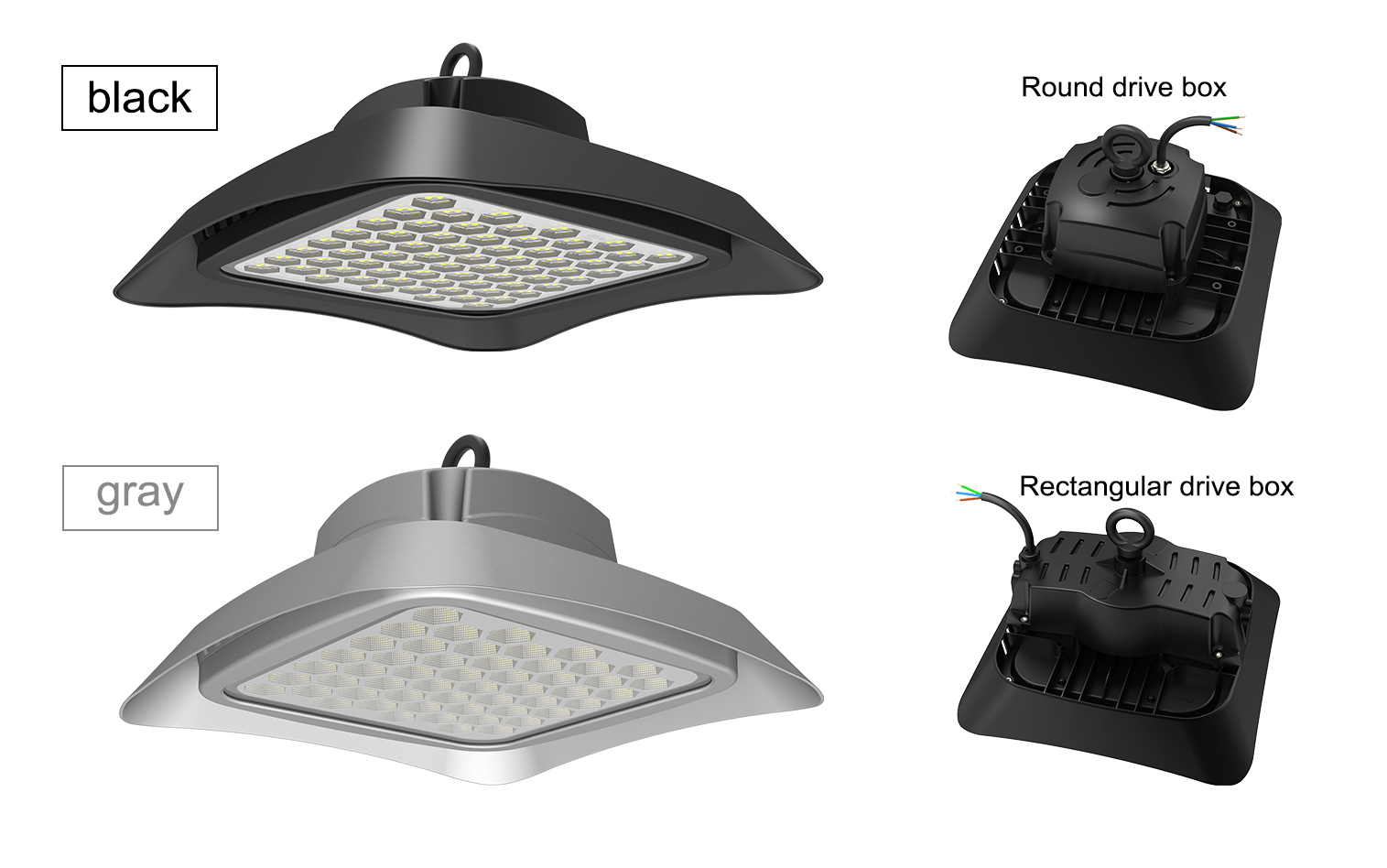

Yeem xim dub / grey
Fais fab lub thawv round / rectangular
Installation txoj kev dai / ncej mounting / bracket mounting thiab lwm yam.

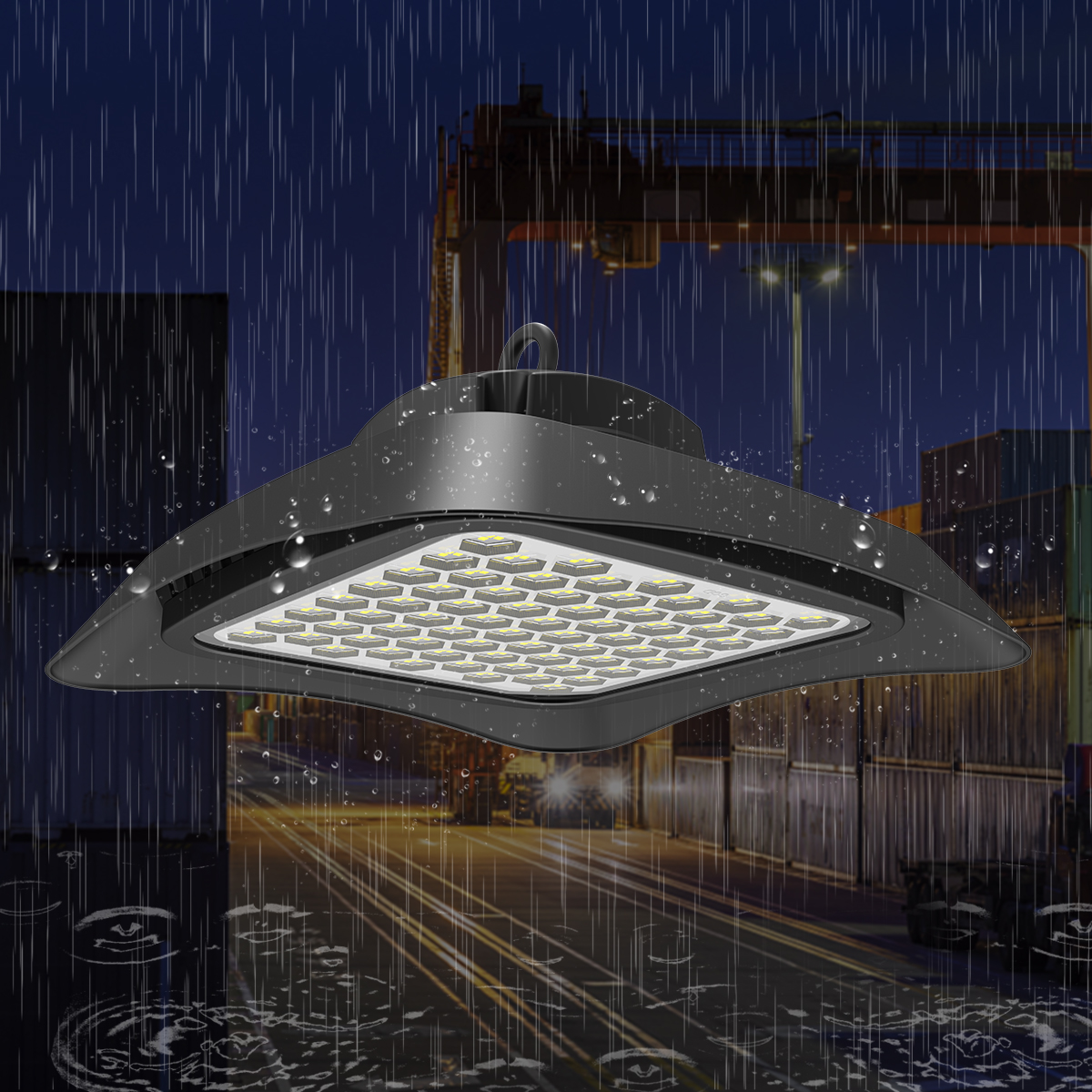

Peb ua raws li lub teeb pom kev zoo siab, lub siab bay coj teeb pom kev zoo rau kev kuaj xyuas zoo yog IP65 tsis muaj dej tsis zoo, IK07 cuam tshuam kev ntsuas, lens tiv thaiv UV huab cua ntsuas, ntsuas hluav taws xob, ntsuas ntsuas kub kom paub tseeb tag nrho cov teeb pom kev siab siab txhua. cov khoom siv hluav taws xob hauv qhov chaw ib puag ncig thaum ua haujlwm ntawm kev ntseeg siab ntawm txhua yam khoom siv rau kev ntsuas kub thiab tshuaj ntsev.Txhawm rau kom ntseeg tau tias cov khoom lag luam coj teeb pom kev siab bay dej nyab teeb khoom tuaj txog ntawm tes ntawm cov neeg siv khoom yog qhov ua tau zoo tshaj plaws.
| Qauv | VKS-HB100W-C | VKS-HB150W-C | VKS-HB200W-C |
| Lub zog nkag | 100 W | 150 W | 200 W |
| Khoom Loj (mm) | φ266x163.5 hli | φ300x165.6mm | φ340x168.6mm |
| Input voltage | AC90-305V 50/60HZ | ||
| LED Hom | Lumileds (Philips) SMD 3030 | ||
| Fais fab mov | Meanwell/SOSEN/Inventronics tsav tsheb | ||
| Kev ua tau zoo (lm / W) ± 5% | 130/140 lm/w | ||
| Lumen tso zis ± 5% | 13 000 LM | 19500 LOJ | 26 000 LM |

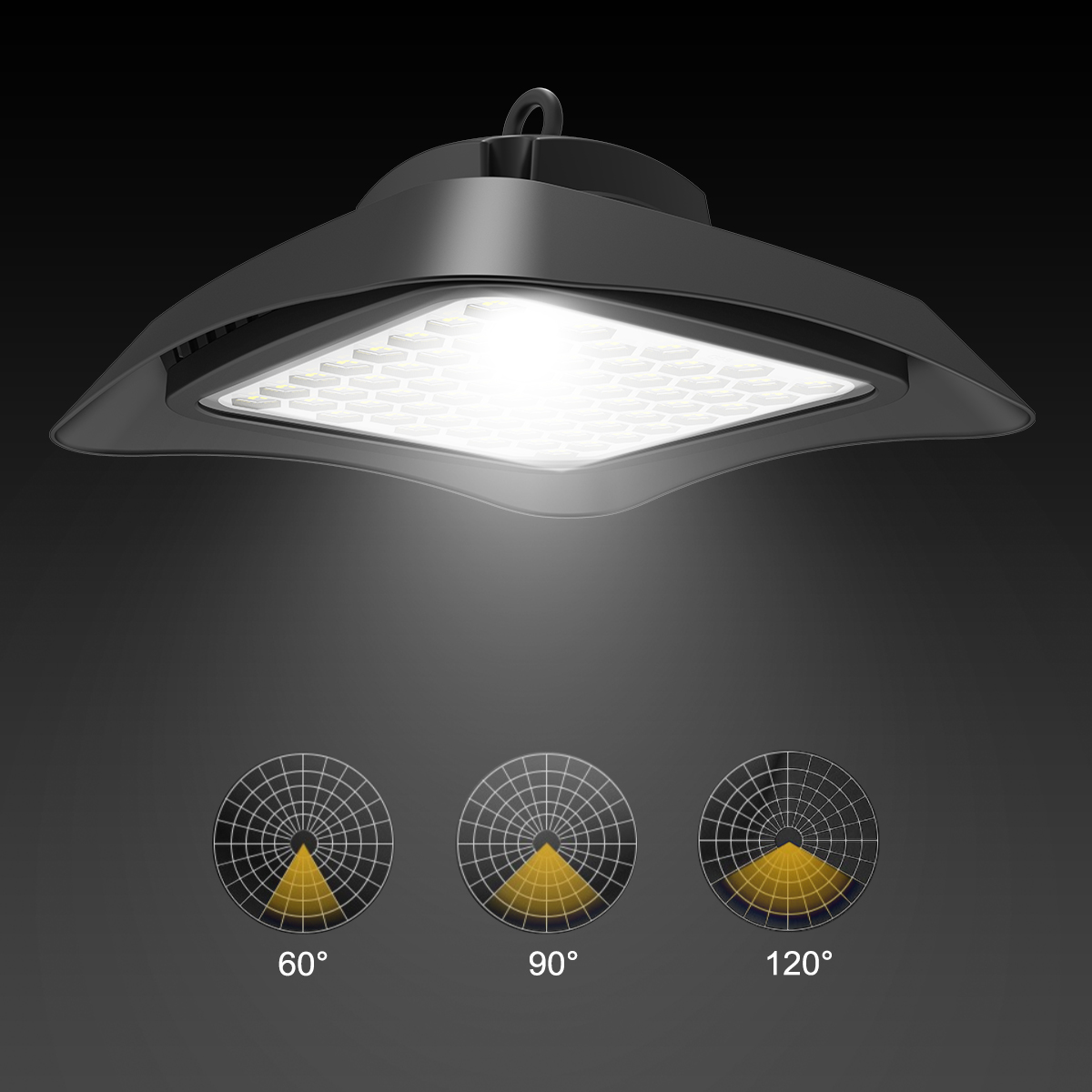

| Beam Angle | 60 ° / 90 ° / 120 ° | ||
| CCT (K) | 4000K/5000K/5700K | ||
| CRI | Ra 70 | ||
| Tus nqi IP | IP65 | ||
| PF | ≥0.9 | ||
| SDCM | ≤ 7 | ||
| IK Qib | ib 07 | ||
| THD | <20% | ||
| Tsis tshua muaj Harmonics | IEC 61000-3-2 Chav Kawm C | ||
| Pib Sijhawm | ≤0.5S (230V) | ||
| Flicker | <8% | ||
| Warranty | 5 xyoo | ||

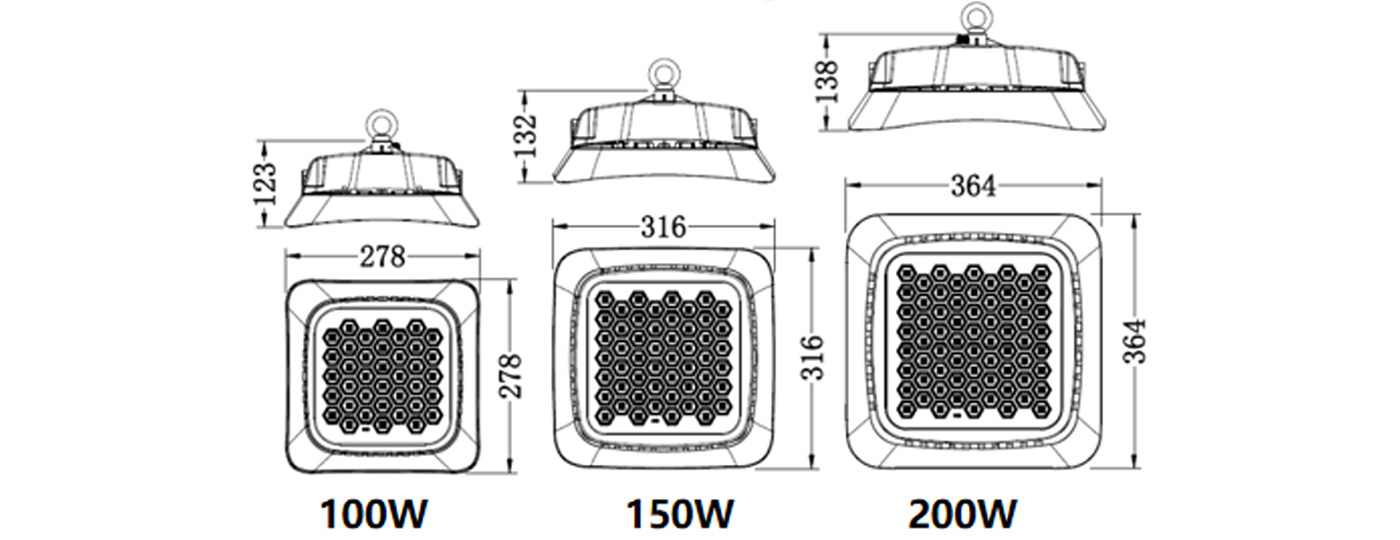

High Bay LED Teeb Fixture Khoom Loj

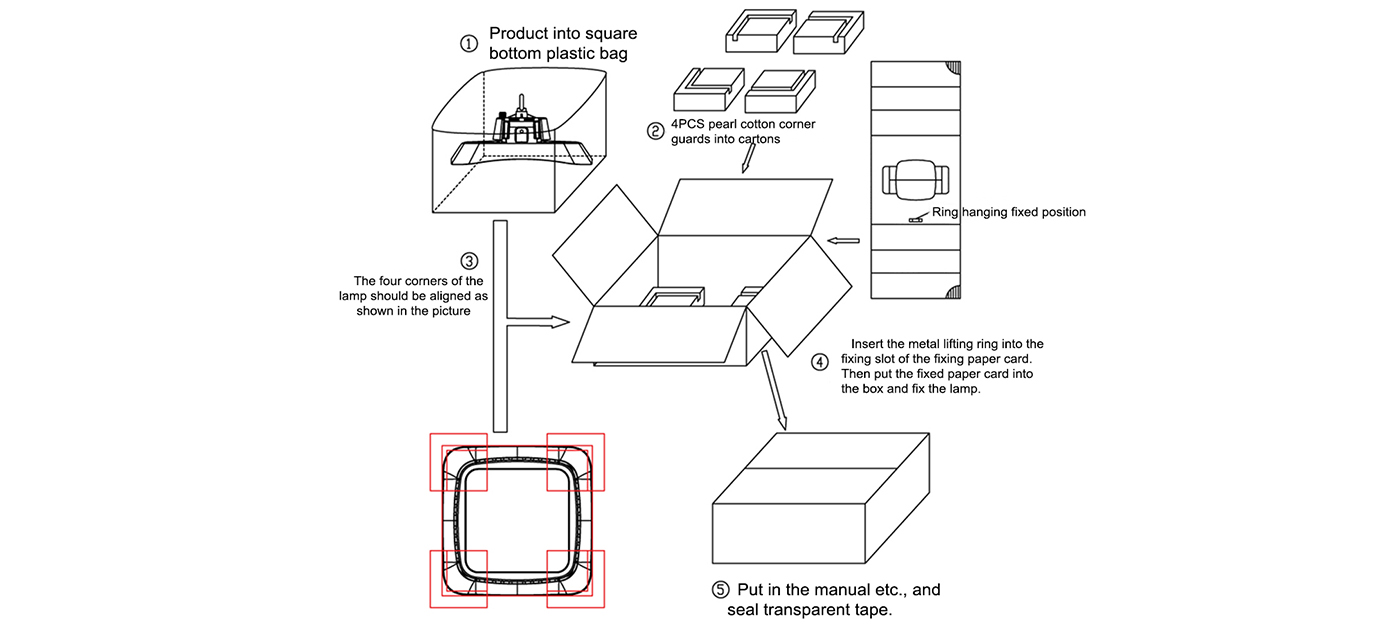

LED High Bay Teeb pom kev zoo ntim

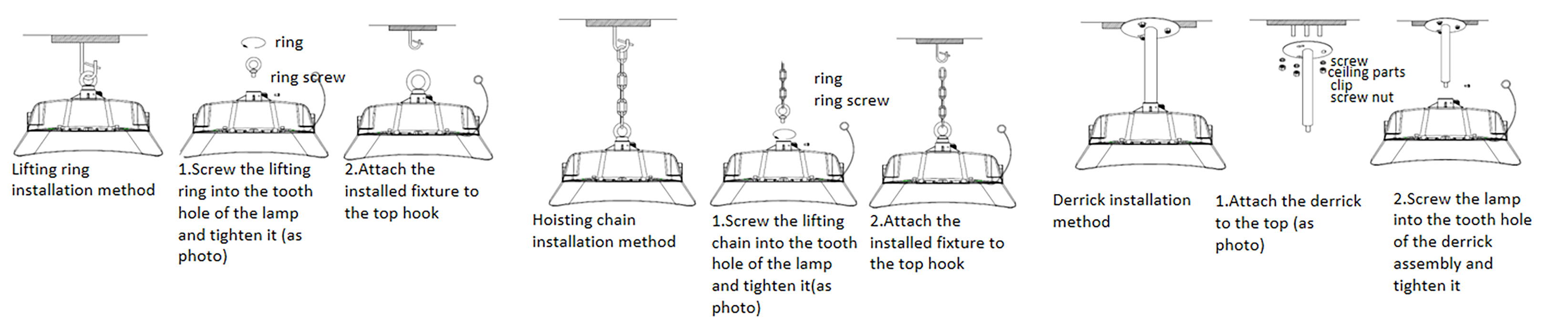

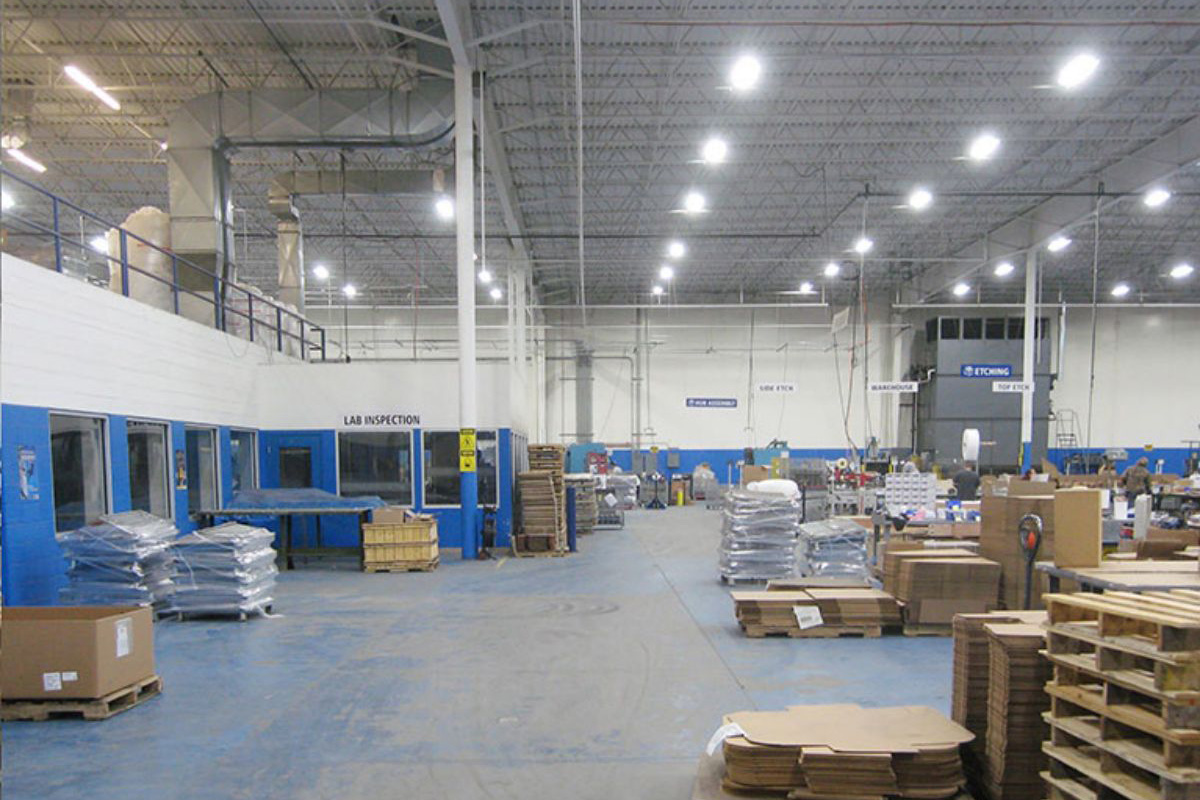

LED Teeb High Bay Installation
Kev lag luam siab bay coj teeb pom kev zoo tsuas yog 20% ntawm sodium teeb, sib npaug rau 100W LED mining teeb tuaj yeem hloov 250W sodium teeb, haum rau ntau thaj chaw.

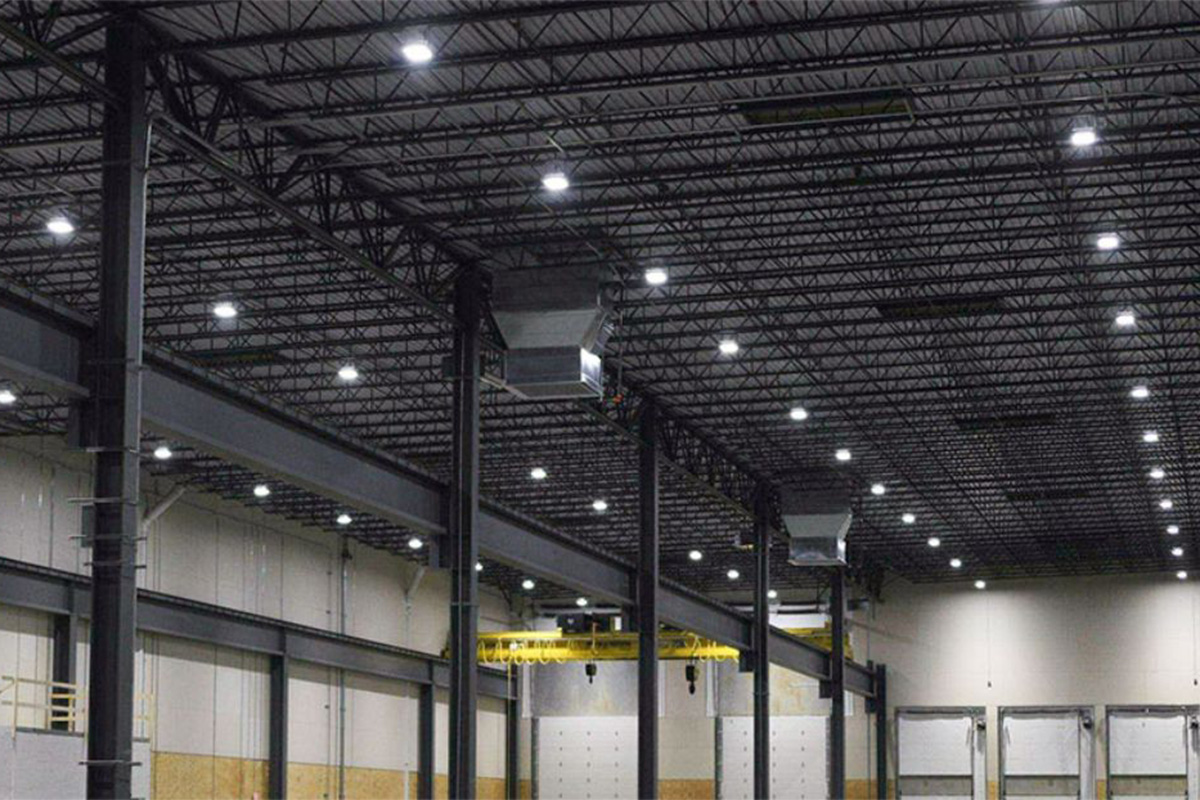

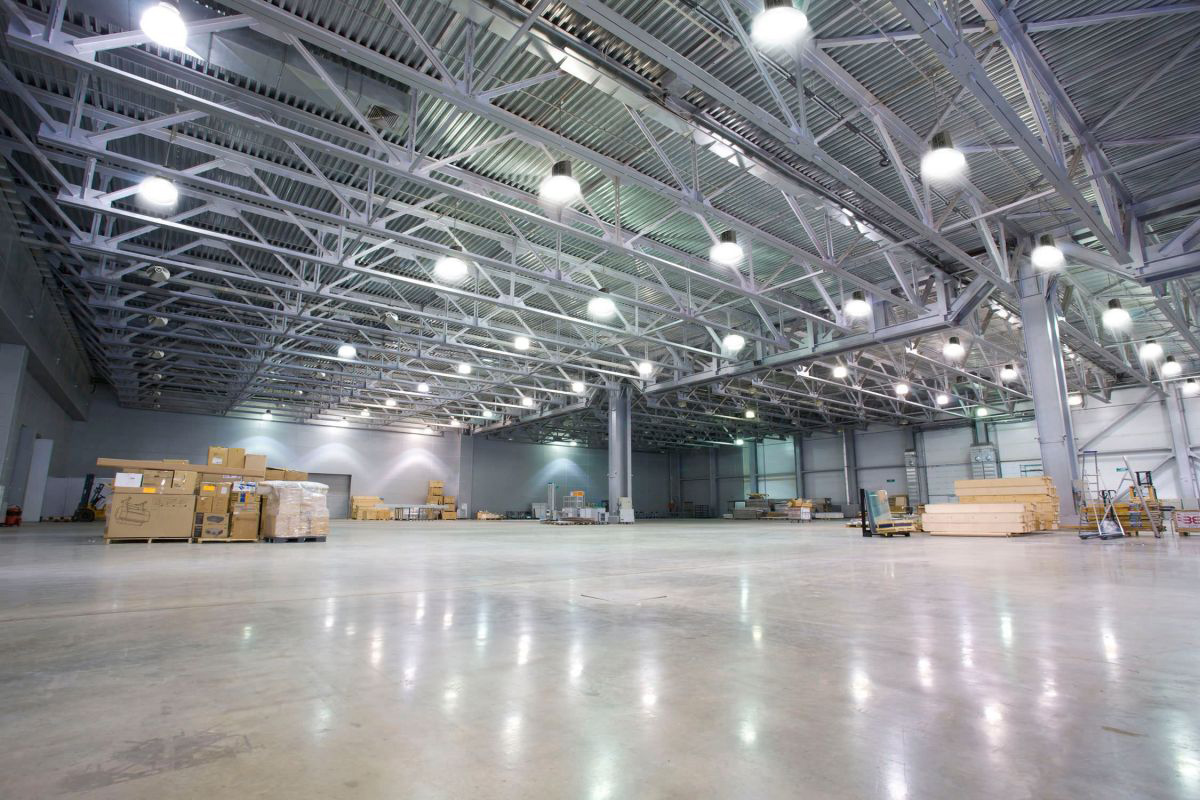

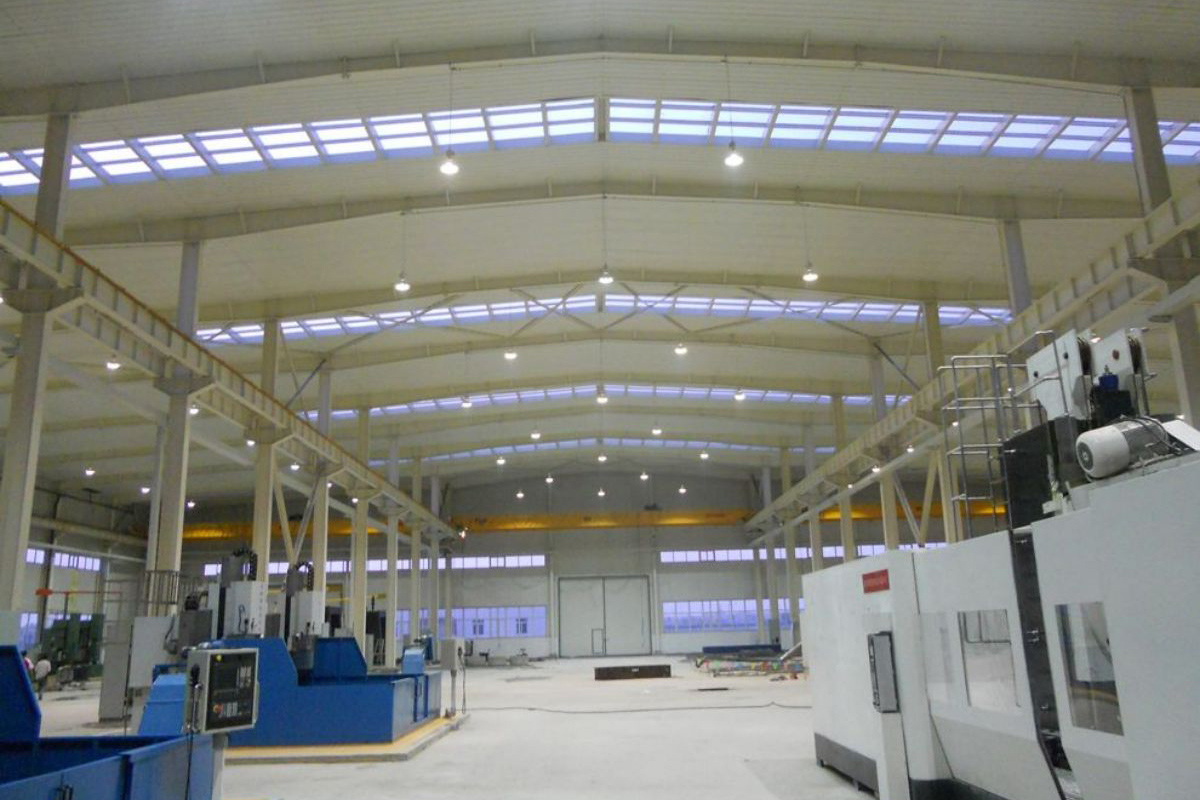

LED high bay teeb yog tsim rau nkoj tsim, mining, rhiav, factories, warehouses, highway xov tooj, chaw nres tsheb roj, supermarkets, exhibition halls, stadiums thiab lwm qhov chaw uas xav tau kev lag luam thiab mining teeb pom kev zoo.
LED siab bay teeb yog tsim rau cov khw muag khoom loj, warehouses, factories, stadiums, tshav dav hlau,
docks, cov tsev loj, cov tuam txhab lag luam, kev lag luam thiab kev lag luam mining, roj av, chemical workshops, factories, warehouses, highway calls, gas stations, large supermarkets, exhibition halls, smelting and other flammable and explosive place for light projection or flood lighting.
