High quality IP65 Led High Mast Lub teeb
Modular khoom, pab pawg neeg hloov tau, haum
rau qhov chaw teeb pom kev zoo sab nraum zoov

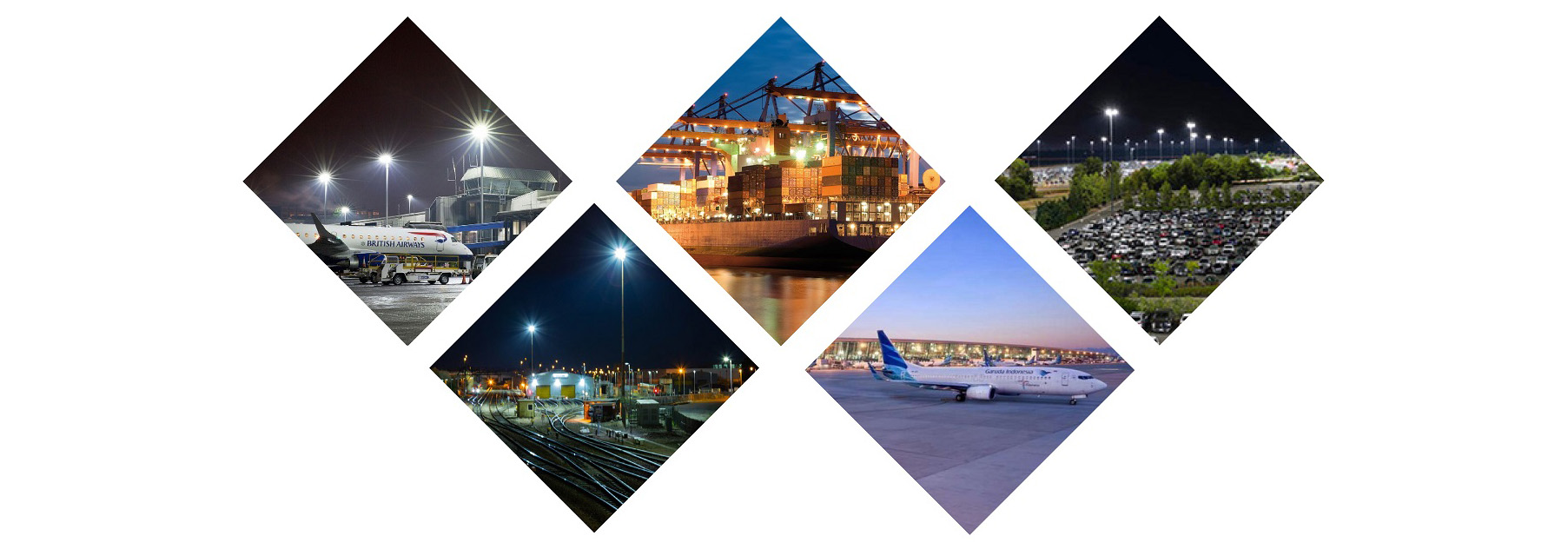

VKS HL2 series coj high mast teeb pom kev zoo system khoom modularization tsim, zuag qhia tag nrho qhov ntev ntawm thoob ntiaj teb, nrog saj zawg zog, muaj zog commonality, txuam qhov ntau haiv neeg, dav scope ntawm daim ntawv thov, qhov txias ua tau zoo, lub neej ntev, tag nrho lub hwj chim dawb series, tag nrho raws li qhov kev thov. ntawm ntau yam kev daws teeb meem, dav siv nyob rau hauv square, chaw nres tsheb, wharf, vaj, txoj kev loj, chaw ntau pob, overpasses thiab lwm qhov chaw ntawm lub teeb pom kev zoo.

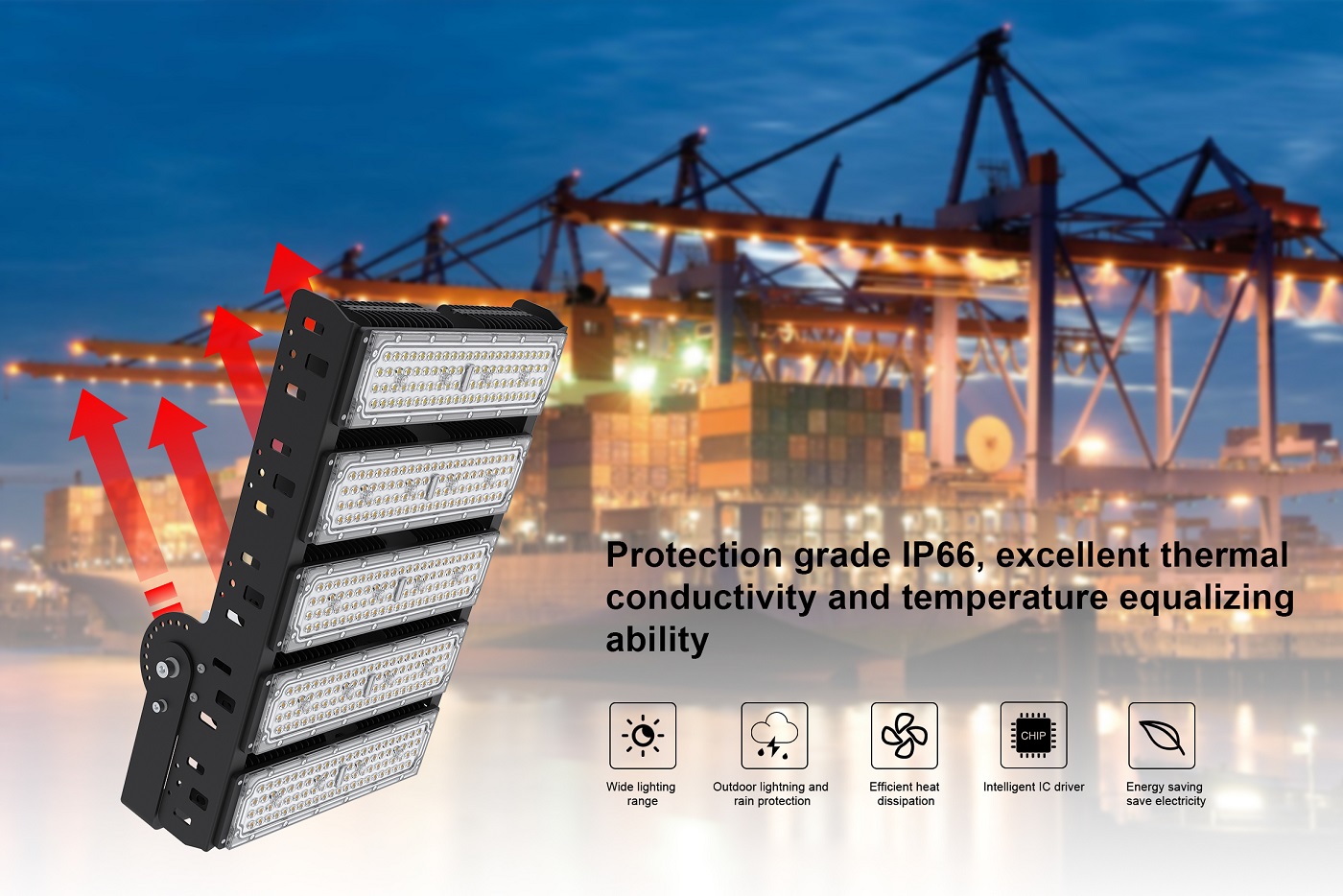

VKS HL2 series high mast coj dej nyab lub teeb tiv thaiv qib IP66, tsis muaj kua nplaum rau kev tiv thaiv theem nrab, ua tau raws li cov qauv kev ntsuas sab nraum zoov ntsev cov qauv ntawm cov radiator phaj los hloov cov tsoos teeb pom kev zoo substrate, lub cim lens khoom qauv kuj yog qhov zoo rau cov cua kub dissipation ntawm lub teeb qhov chaw, thermal conductivity, tshav kub dissipation kev ua tau zoo heev, thaum tsis txhob ua pa ntawm cov tsoos lens tshwm sim los ntawm huab cua impurities rau lub teeb qhov chaw puas.Kev ua tau zoo ntawm cov cua kub dissipation kuj txhim kho tag nrho cov luminous zoo thiab efficiency ntawm cov khoom.

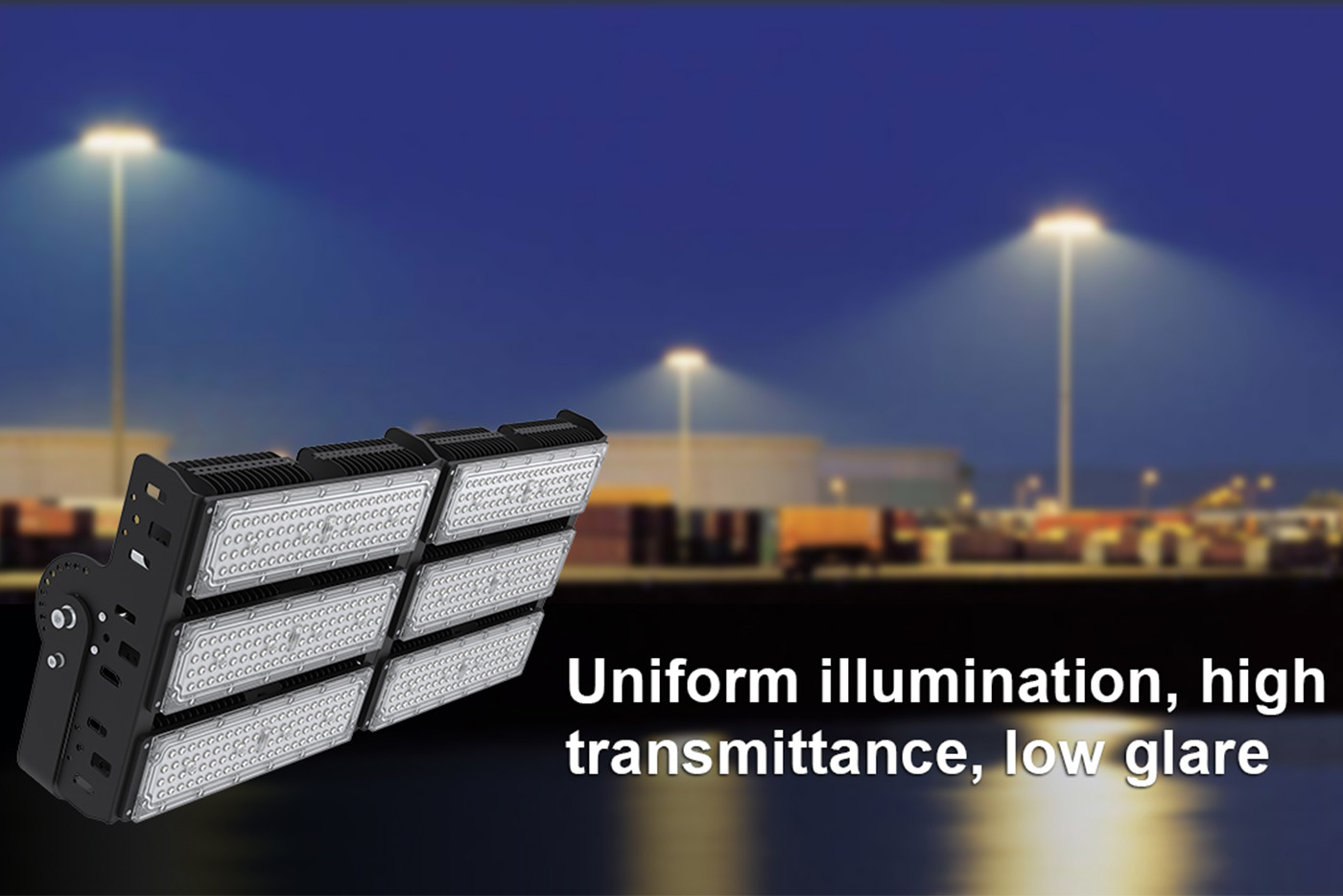

VKS HL2 series coj lub siab mast teeb cuaj xaiv kab teeb lub kaum sab xis, lub teeb pom kev zoo siab, lub teeb pom kev zoo, thaj chaw teeb pom kev zoo, teeb pom kev zoo, teeb pom kev zoo, ci ntsa iab, tsis muaj kev txi lub teeb xim, txhawm rau txhim kho qhov ci kom ntseeg tau. tsis muaj aperture uniform lub teeb xim, tshwj xeeb thib ob kho qhov muag tsim kom pom qhov chaw xav tau, Lub teeb pom kev zoo yog ntxiv txhim kho kom ua tiav lub hom phiaj ntawm kev txuag hluav taws xob.

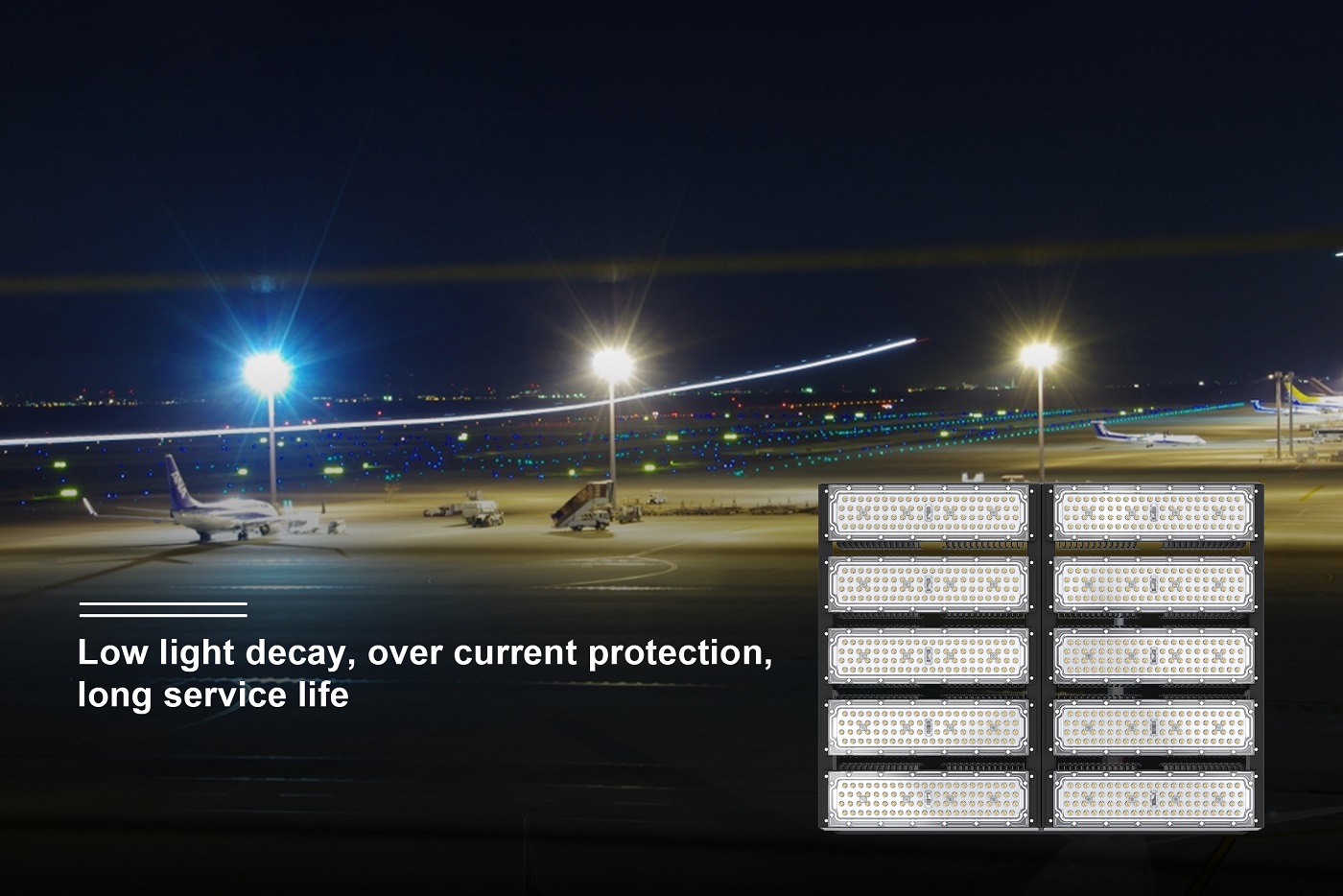

VKS HL2 series coj siab mast teeb pom kev zoo nrog me melumen nqi depreciation, lub teeb tsis ua hauj lwm tsawg dua 3% ib xyoos, tseem ua tau raws li cov kev cai ntawm txoj kev siv illuminance mus txog 10 xyoo, tuaj yeem paub tau raws li qhov yuav tsum tau ua ntawm lub sijhawm sib txawv teeb pom kev zoo tshaj plaws kom txo tau lub zog, txuag hluav taws xob, hluav taws xob hluav taws xob hluav taws xob. yog txhua yam ua los ntawm cov khoom zoo, txhua LED muaj kev tiv thaiv dhau tam sim no ib leeg, tsis tas yuav txhawj txog kev puas tsuaj.
| Qauv | VKS-HFL-100W-C | VKS-HFL-150W-C | VKS-HFL-200W-C | VKS-HFL-250W-C | VKS-HFL-300W-C | VKS-HFL-400W-C | VKS-HFL-500W-C |
| Hwj chim | 100 W | 150 W | 200 W | 250 W | 300 W | 400 W | 500 W |

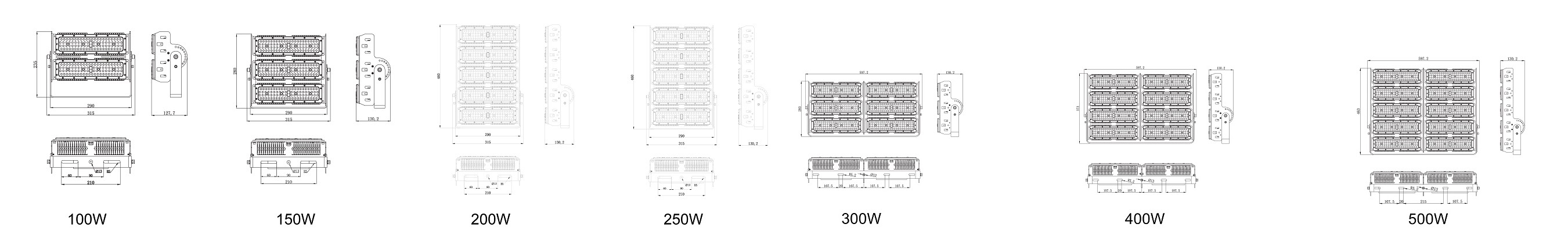

| Cov khoom loj (mm) | L.235 * W315 * H128mm | L280 * W315 * H130mm | L370 * W315 * H130mm | L460 * W315 * H130mm | L283 * W597 * H130mm | L373 * W597 * H130mm | L463 * W597 * H130mm |
| Input voltage | AC90-305V 50/60Hz | ||||||
| LED Hom | Lumileds (Philips) SMD 3030 | ||||||
| Fais fab mov | Meanwell / SOSEN / Inventronics tsav tsheb | ||||||
| Kev ua tau zoo (lm / W) | 130-140LM/W (5000K, Ra70) yeem | ||||||
| Lumen tso zis ± 5% | 13 500 LM | 20 250 LOJ | 27 000 LM | 3 3750 lmx | 40 500 lm | 5 4000 lm | 6 7500 lm |
| Beam Angle | 15/24/40/60/90/120/49 * 21/136 * 78/30 * 70 ° | ||||||
| CCT (K) | 3000K/4000K/5000K/5700K | ||||||
| CRI | Ra70 (Ra80 rau xaiv) | ||||||
| Tus nqi IP | IP66 | ||||||
| PF | > 0.95 | ||||||
| Dimming | Tsis-dimming (Default) / 1-10V Dimming / Dali dimming | ||||||
| Khoom siv | Die-Cast + PC Lens | ||||||
| Kev ua haujlwm Tenperature | -40 ℃ ~ 65 ℃ | ||||||
| Cov av noo | 10% ~ 90% | ||||||
| Ua kom tiav | Hmoov Txheej | ||||||
| Kev tiv thaiv Surge | 4kV kab-kab (10KV, 20KV rau kev xaiv) | ||||||
| Mounting Option | Bracket | ||||||
| Warranty | 5 Xyoo | ||||||
| Q'TY (PCS) / thawv | 1 Pcs | 1 Pcs | 1 Pcs | 1 Pcs | 1 Pcs | 1 Pcs | 1 Pcs |
| NW (KG / carton) | 3.1kg ib | 3.8kg ua | 5kg ua | 5,9kq ua | 6,4kq ua | 8,1kq ua | 10kg ua |
| Carton Loj (mm) | 340 * 250 * 160 hli | 340 * 300 * 160 hli | 390 * 340 * 160 hli | 540 * 340 * 160 hli | 630 * 300 * 130 hli | 635 * 430 * 180 hli | 625 * 525 * 160 hli |
| GW (KG / thawv) | 3.5kg ib | 4.5kg ib | 5,6kg ua | 7,6kg ua | 7,6kg ua | 9,6kq ua | 11.6 kg ib |
High-quality IP66 Led High Mast Lub Teeb Khoom Loj

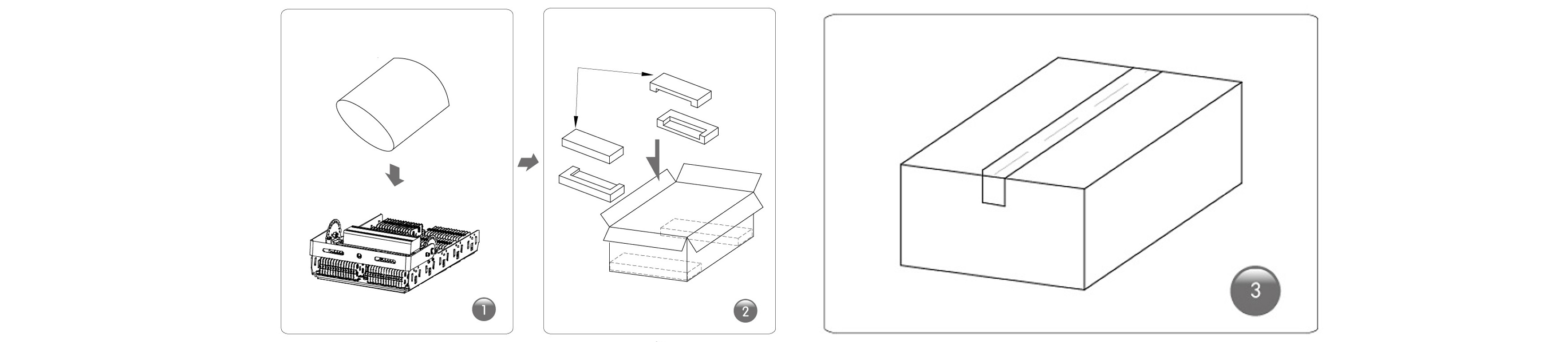

Sports Lighting LED Ntim
VKS HM2 series siab mast coj teeb pom kev zoo irradiation ntau yam, tsim nyog kho kom zoo nkauj teeb pom kev zoo, yog qhov dav siv nyob rau hauv loj cheeb tsam teeb pom kev zoo engineering kuj yog ib yam zoo illumination teeb thiab lanterns, nyob rau hauv lub premise ntawm lub rooj sib tham muaj nuj nqi xav tau ob los yog ntau yam thiab zoo nkauj. ua hauj lwm, mus rau qhov siab tshaj plaws nyob rau sab saum toj ntawm lub teeb irradiation cheeb tsam, ua tau ib tug zoo tagnrho cov nyhuv ntawm lub teeb pom kev zoo, teeb pom kev zoo ntau txog li 10000 square meters, Haum rau ports, tshav dav hlau, docks, expressways, nroog squares, multi-layer interconnect overpasses, loj chaw ntau pob thiab lwm qhov chaw uas xav tau qhov chaw loj hauv nruab nrab teeb pom kev zoo.
VKS HM2 series siab mast lub teeb tau txais kev zoo LED nti, siab ci, tsis tshua muaj teeb pom kev zoo, lub neej ntev kev pab cuam, yooj yim txij nkawm, yooj yim teeb tsim, tsheb thauj mus los, txuag nqi, lub plhaub yog ua los ntawm cov khoom siv txhuas txhuas uas muaj zog, muaj zog. corrosion kuj thiab zoo tshav kub dissipation muaj peev xwm.Nws yog dav siv nyob rau hauv engineering engineering, kev loj, overpass, chaw nres tsheb, chaw ntau pob, khoom vaj khoom tsev, chaw nres nkoj, tshav dav hlau thiab pej xeem leisure square thiab lwm yam sab nraum zoov teeb pom kev zoo tej yaam num.
