LED Sports Flood Lights
Muaj ntau ntau yam corrosive nyob rau hauv ib puag ncig sab nraum zoov, thiab cov khoom yuav tsum tau rau lubkev ua si LED teeb pom kev zoonruj heev.Qhov no LED kev ua si lub tsev hais plaub teeb pom kev zoo muaj ib tug tshwj xeeb tsos tsim, thickened tuag-casting txhuas, siv txhuas integration molding, lub zuag qhia tag nrho nto txau corrosion-resistant polyester hmoov, radiator deg kho siv anodic oxidation txheej txheem, tus ncej thiab bracket siv high-tech ib puag ncig tiv thaiv. Txau kev kho corrosion-resistant xeb, av, corrosion kuj, zoo tiv thaiv oxidation, lub plhaub uas yog lub radiator, integrated yam tsis muaj lwm yam kev twb kev txuas conduction kev ua tau zoo dua los xyuas kom meej cov kev ua si pitch teeb pom kev zoo siab tshaj plaws tshav kub dissipation thiab LED lub neej ntev, thiaj li hais tias cov coj teeb. rau cov kis las kis las teeb pom kev zoo lub teeb tawg yog kev tswj kom zoo dua.
High efficiency tas li tam sim no LED tsav tsheb fais fab mov, siab luminous efficiency hom teeb hlaws, zoo tag nrho kev ua tau zoo

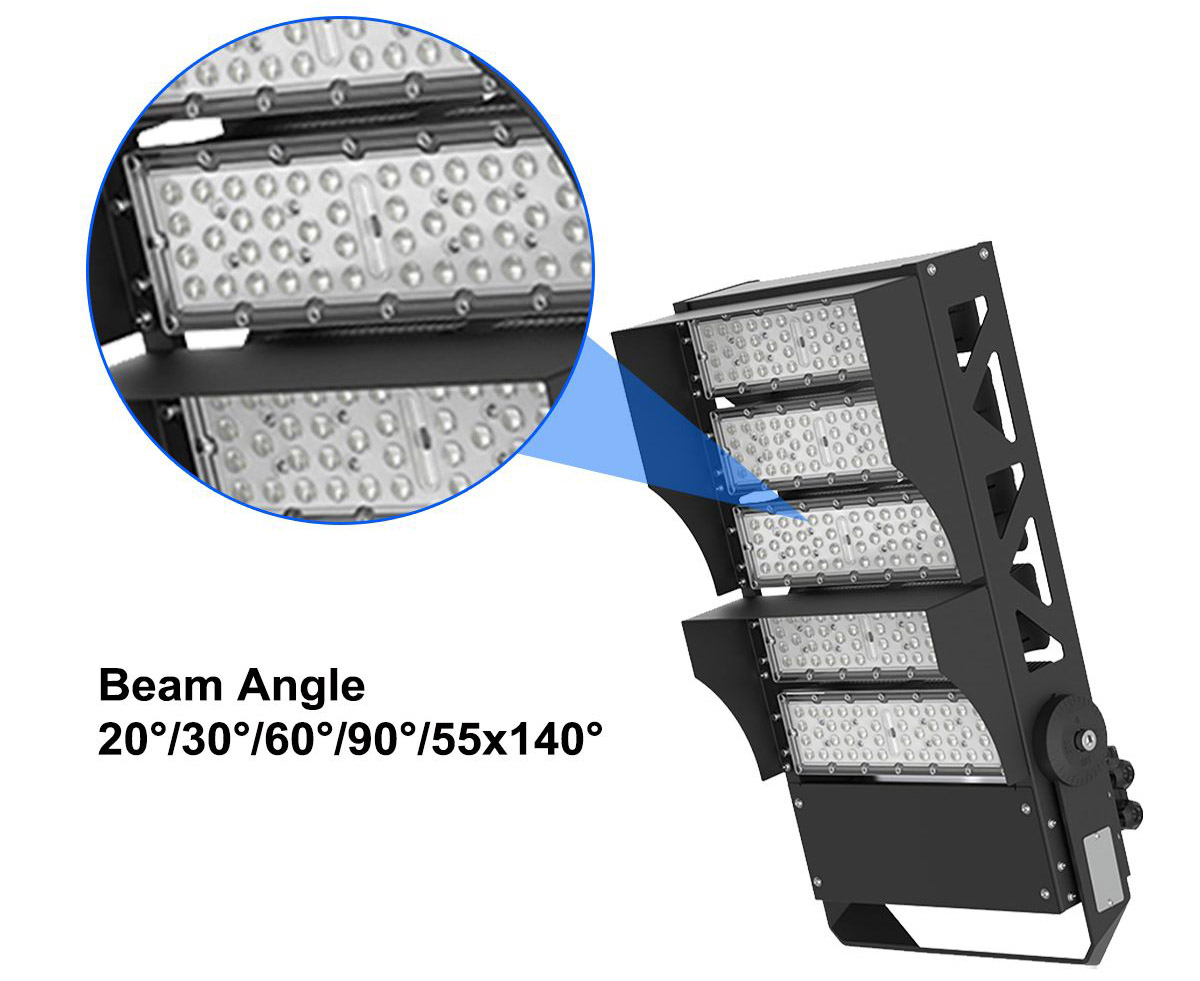

LED kev ua si teeb Led tsav fais fab mov tsav voltage thiab tsav tam sim no yuav ncaj qha cuam tshuam rau lub neej ntawm cov coj.Kev ua haujlwm ntawm tus neeg tsav tsheb fais fab cuam tshuam rau lub zog hloov pauv ntawm LED teeb pom kev zoo, thiab cov zis tam sim no ntawm tus neeg tsav tsheb fais fab mov cuam tshuam rau qhov zoo ntawm LED teeb.Peb siv lub ntiaj teb nto moo hom Ming Wei fais fab mov, Philips teeb hlaws, zoo heev txhim khu kev ruaj ntseg ntawm lub teeb thiab teeb thiab kev siv ntawm kev ua tau zoo.LED lub tsev hais plaub kev ua si nawv teeb muaj ntau yam teeb pom kev zoo sib xws kom tau raws li cov kev xav tau sib txawv, lub kaum sab xis ntawm lub teeb tuaj yeem ncav cuag 20 ° / 30 ° / 60 ° / 90 ° / 55x140 ° tsib, kev siv tau zoo dua.
Module tsim, yooj yim rau nruab thiab tswj.

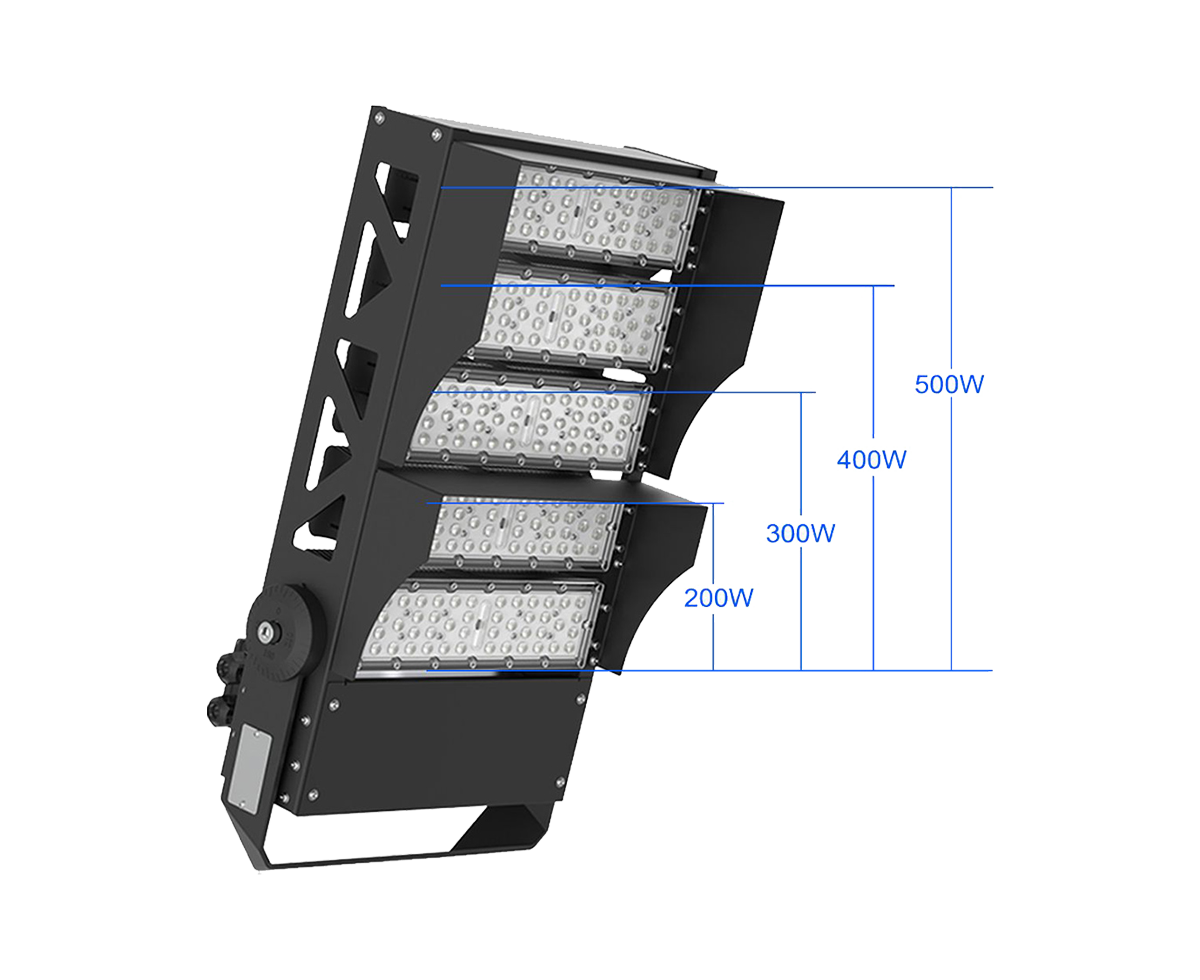

LED kev ua si nrog lub teeb pom kev zoo Module yog tus tsim ywj pheej, tag nrho lub hwj chim dawb series, 200W / 300W / 400W / 500W tuaj yeem xaiv, yooj yim sib dhos thiab disassembly, txij nkawm yooj yim dua thiab ceev, tag nrho cov kev xav tau.
| Qauv | VKS-SFL200W-A | VKS-SFL300W-A | VKS-SFL400W-A | VKS-SFL500W-A |
| Lub zog nkag | 200 W | 300 W | 400 W | 500 W |
| Khoom Loj (mm) | 316 * 388 * 115 | 408 * 388 * 115 hli | 500 * 388 * 190 | 592 * 388 * 190 hli |
| Input voltage | AC90-305V 50-60Hz | |||
| LED Hom | lus 5050 | |||
| Fais fab mov | Meanwell XLG-200W | Meanwell ELG-300W | Meanwell XLG-200W * 2 | Meanwell ELG-250W * 2 |
| Kev ntsuas IP | IP65 | |||
| Tag nrho Harmonic Distortion | AC230V (10%) | |||
| Odd Harmonic txwv tus nqi | IEC 61000-3-2 Chav Kawm C | |||
| PF | > 0.9 | |||
| Pib Sijhawm | 0.5S (230V) | |||
| Strobe | Flicker dawb | |||
| Xim tsev | Frosted dub / RAL9017 | |||
| Kev ua tau zoo (lm / W) | 140 | |||
| Lumen tso zis ± 10% | 28,000 ib | 42,000 ib | 56,000 ib | 70,000 |
| Beam Angle | 20 ° / 30 ° / 60 ° / 90 ° / 55 × 140 ° | |||
| CCT (K) | 4000K/5000K/5700K | |||
| CRI | Ra> 70 / Ra> 80 | |||
| Ua haujlwm kub | -30 ~ 45 ℃ | |||
| QTY (PCS) / thawv | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
| Packing Loj (mm) | 590 * 505 * 250 hli | 680 * 505 * 250 hli | 680 * 505 * 250 hli | 680 * 505 * 250 hli |

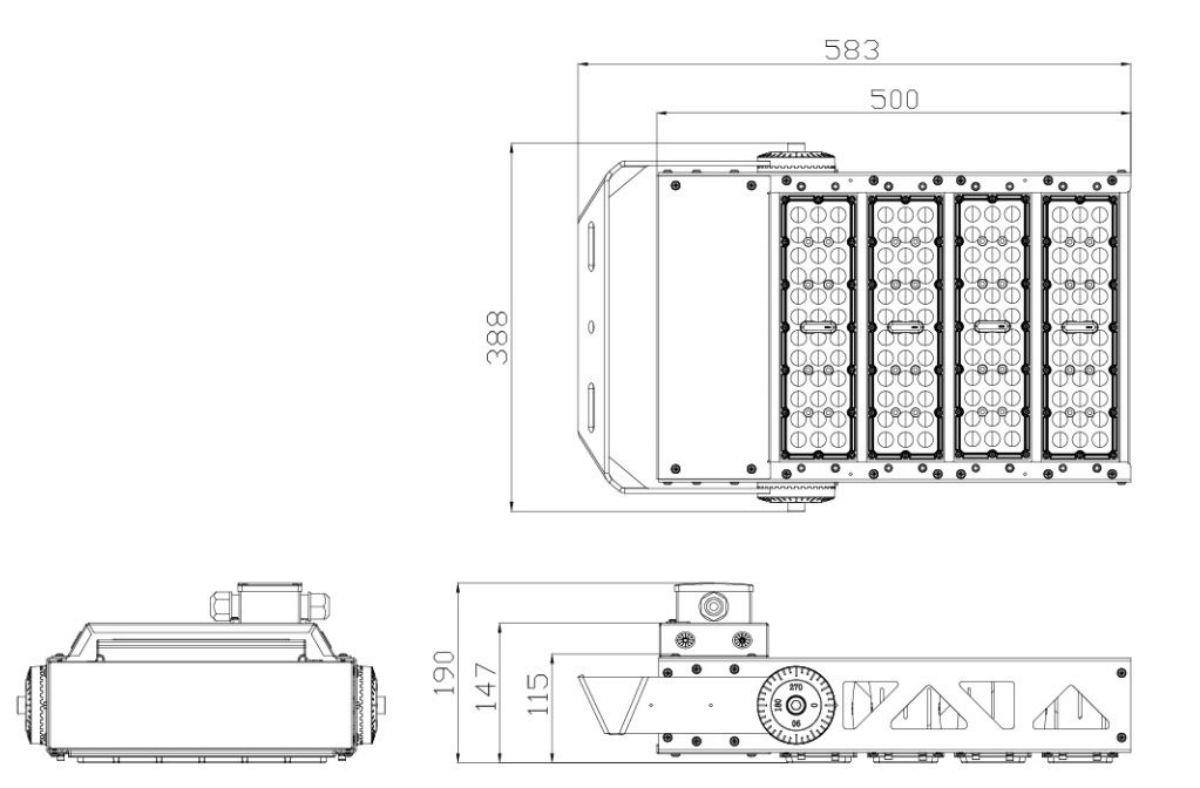

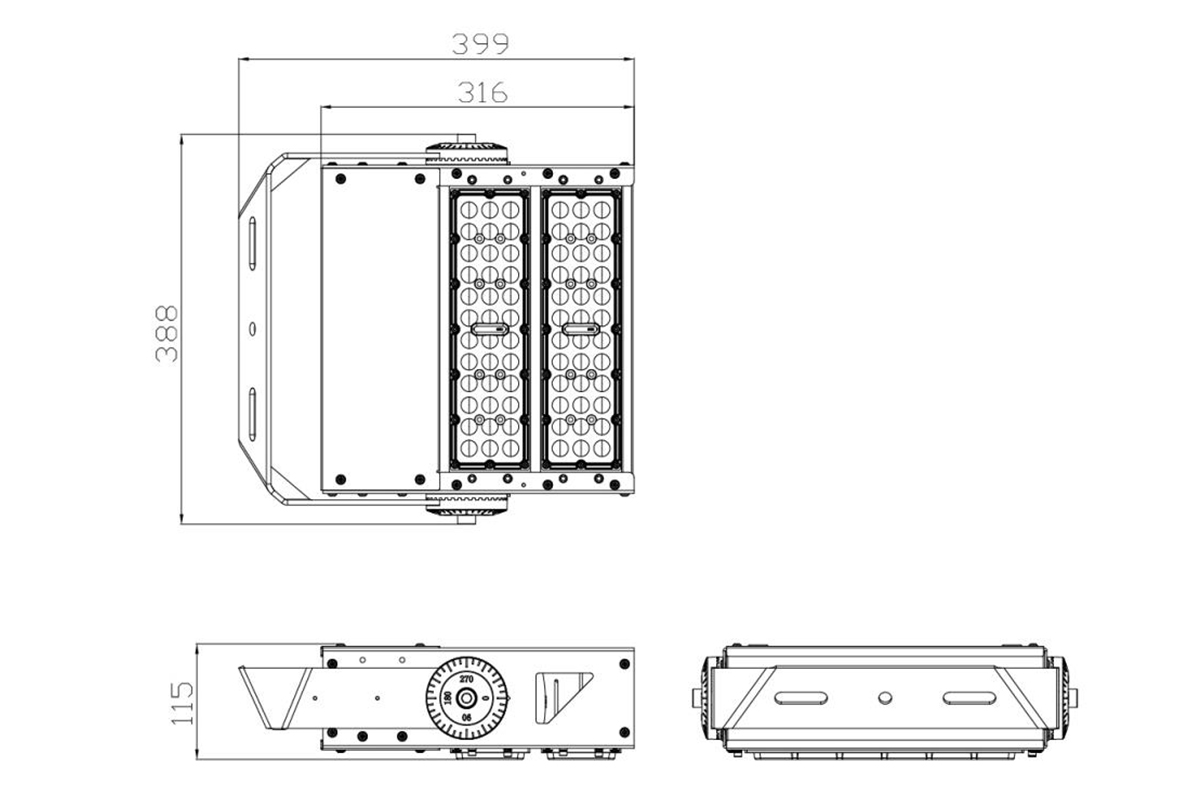

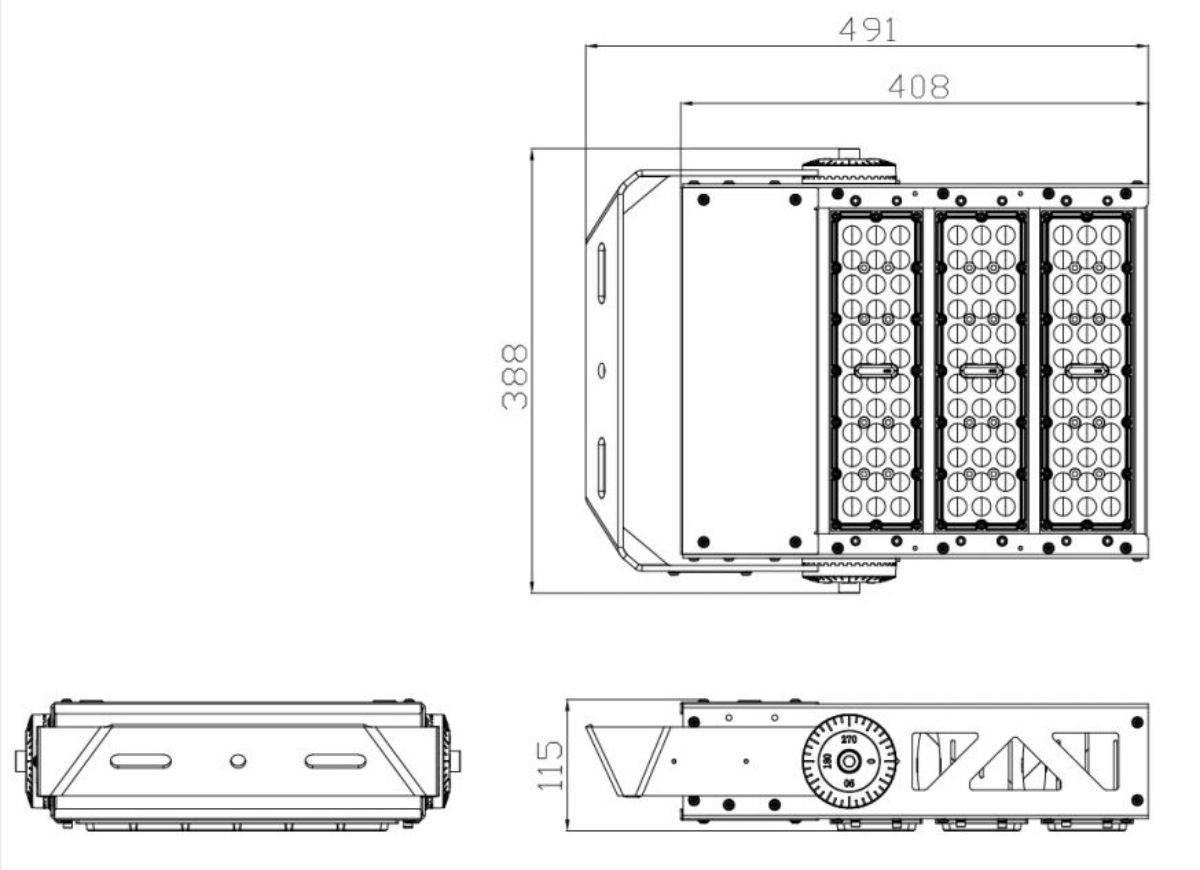

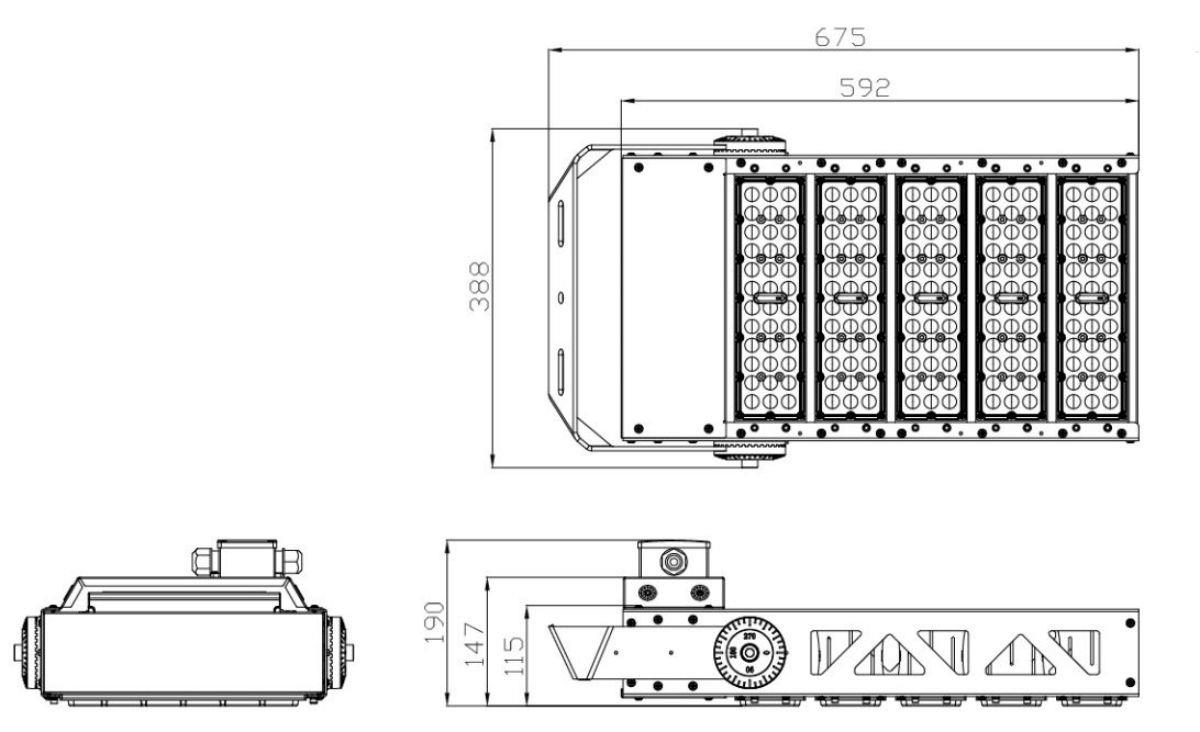

Kev ua si nawv teeb LED Khoom Loj

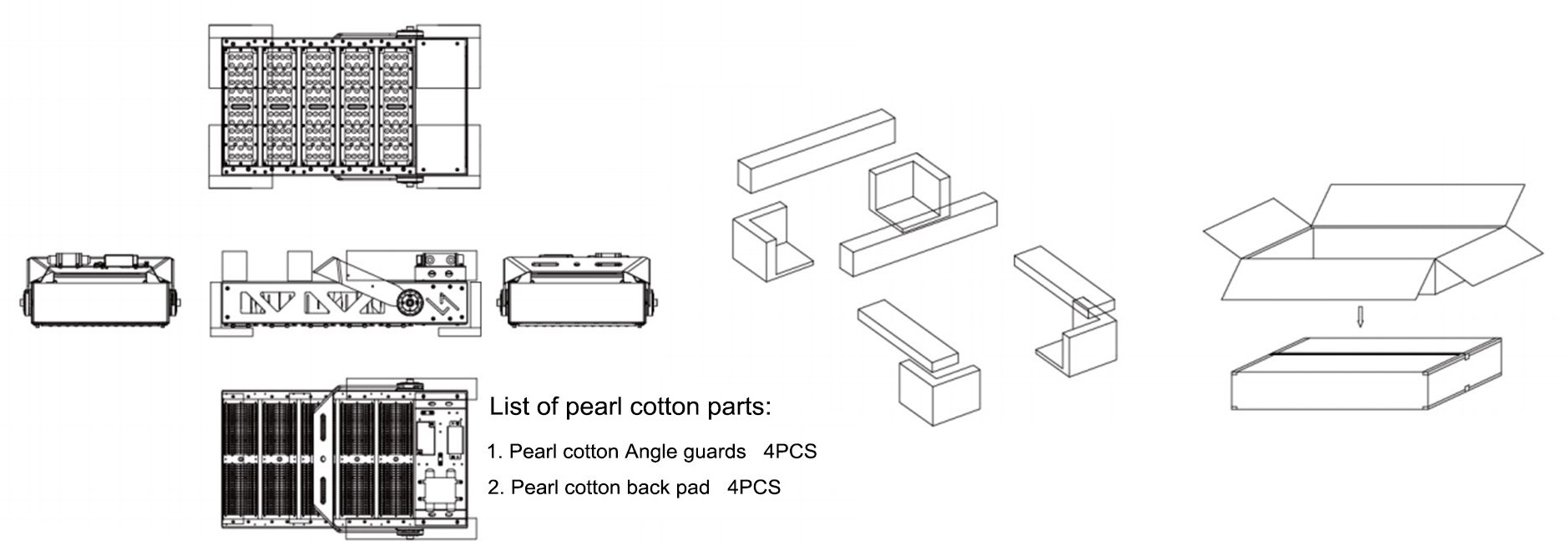

Sports Lighting LED Ntim

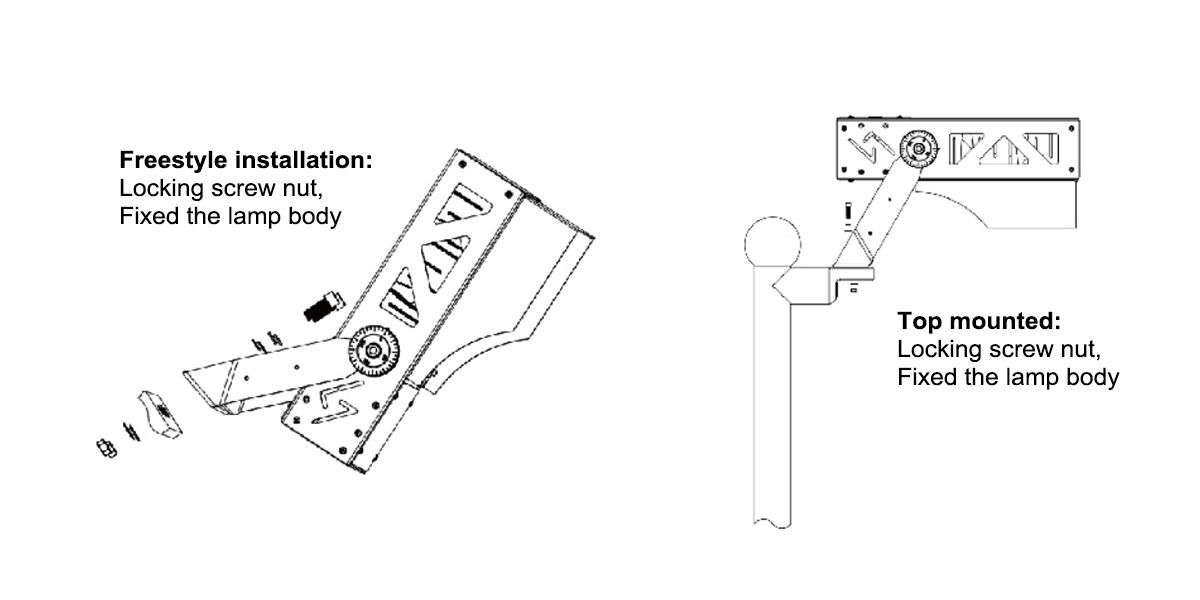

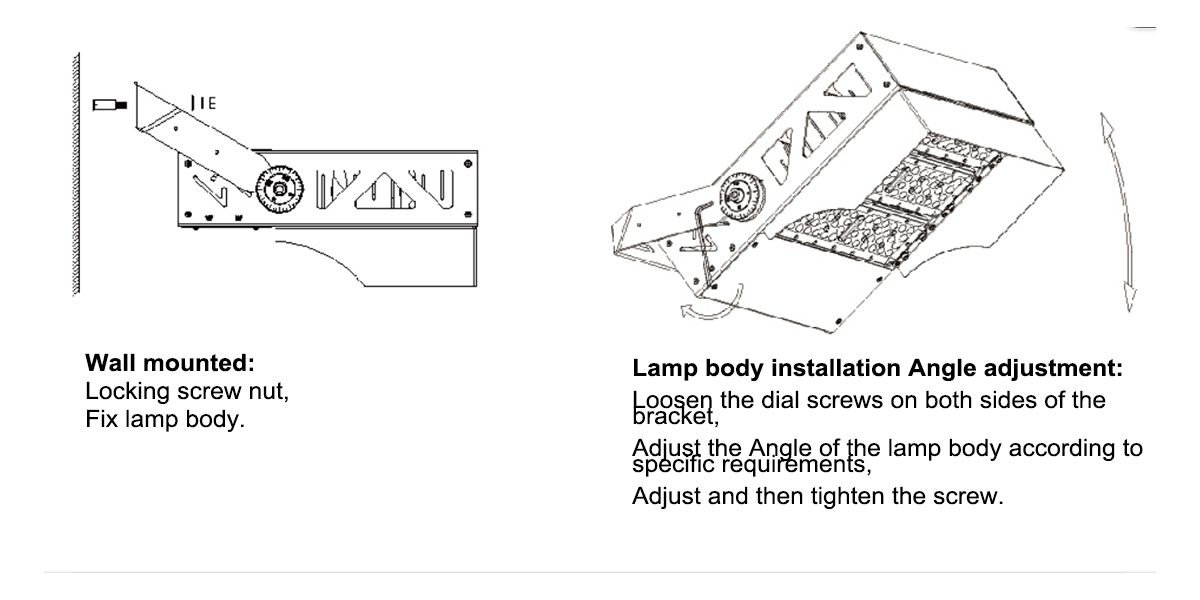

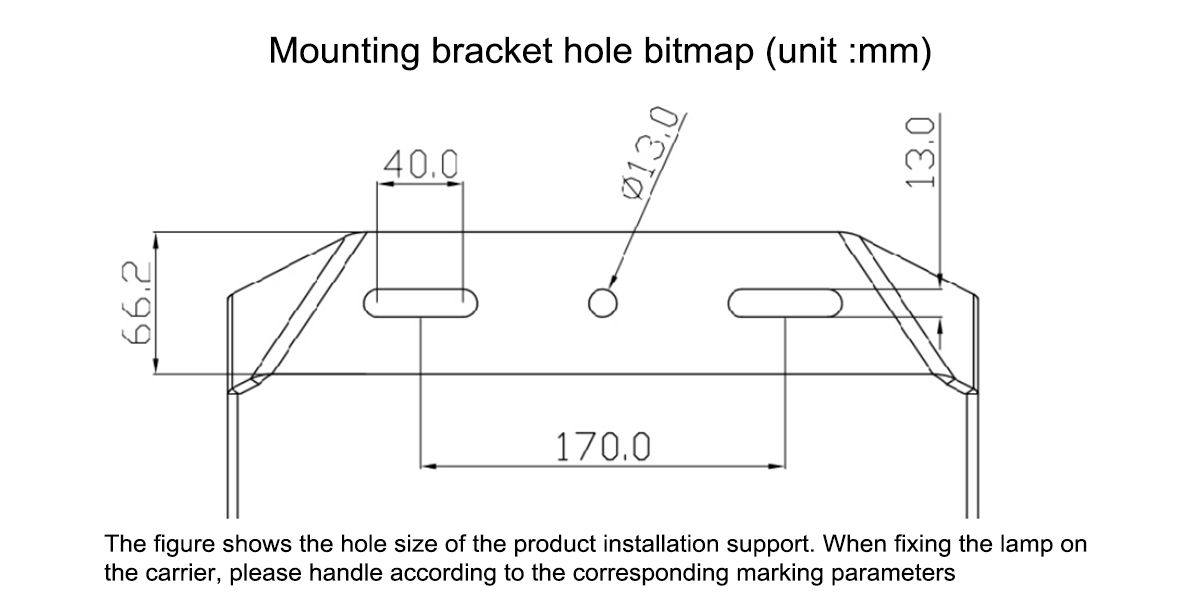

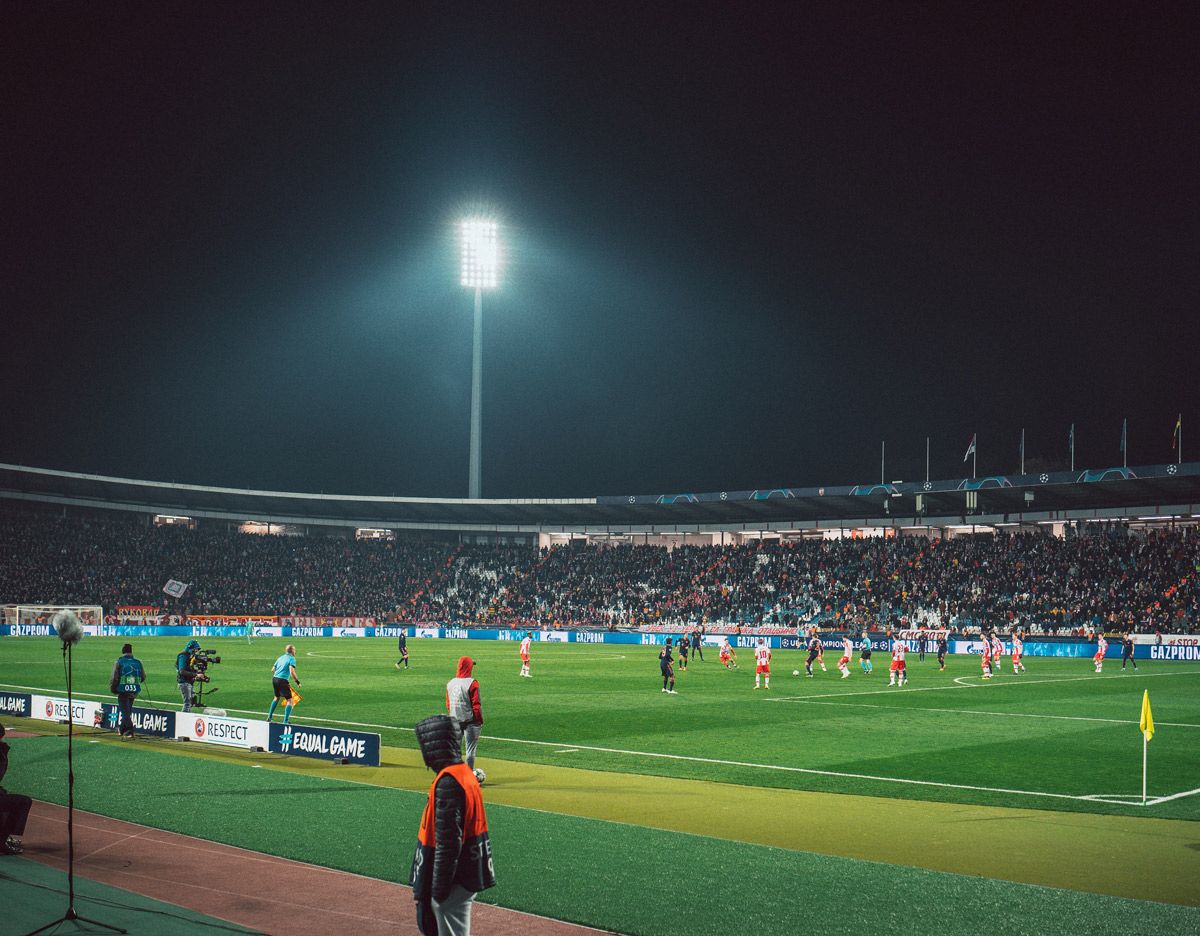

Kev ua si nawv teeb pom kev zoo LED Installation

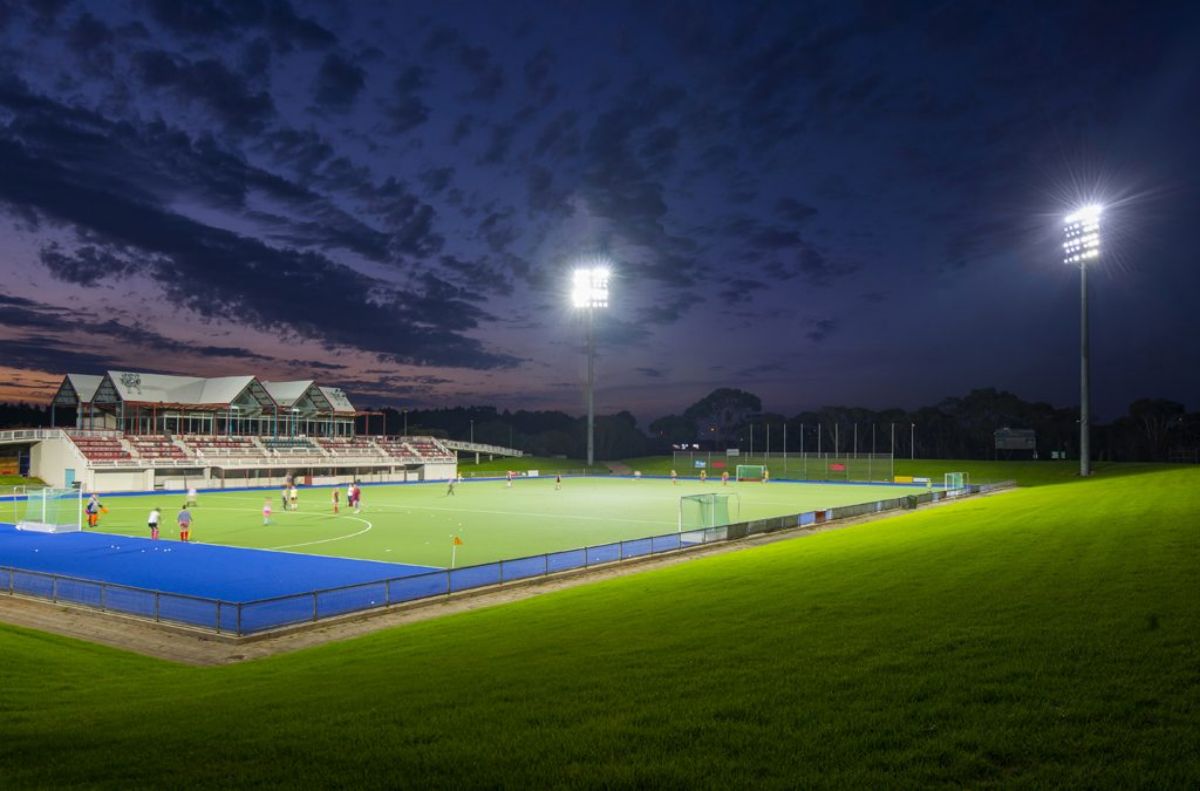

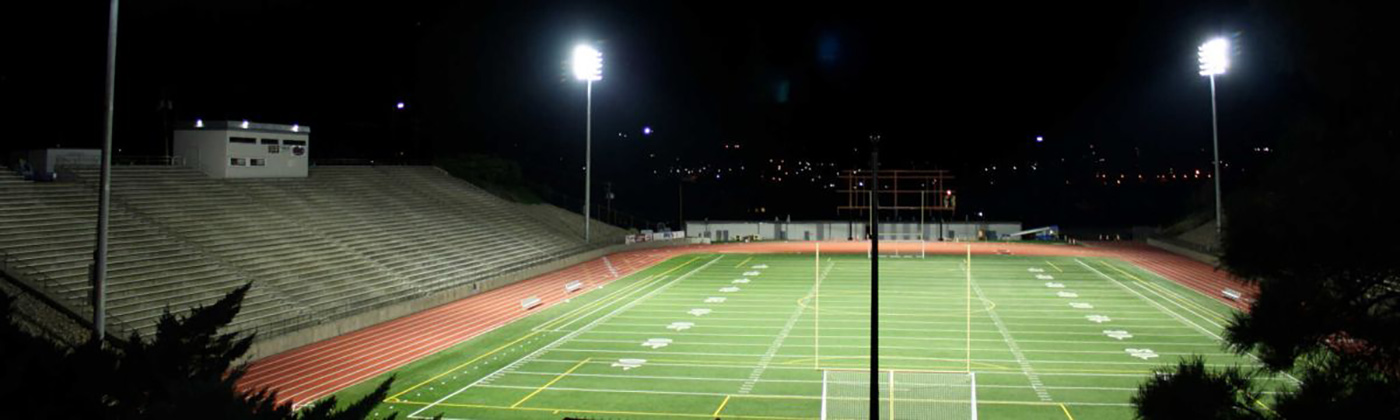

Qhov no module sab hauv tsev kis las teeb pom kev zoo thiab sab nraum zoov teeb rau kev ua si lub kaum sab xis adjustable LED dej nyab teeb yuav dav siv nyob rau hauv txoj kev loj overpasses, nroog txoj kev junctions, chaw nres nkoj terminal yards, txoj kev loj kev pab cuam cheeb tsam, roj depots thiab tank cheeb tsam, railway cargo hloov yards, lub teeb choj thiab lighthouses. , thiab lwm yam Installation platform, Hoobkas Rhiav, cog, Hoobkas warehouses, khoom chav, Loj square, Mus ncig teb chaws crane, shore crane, gantry crane, thiab lwm yam Exhibition center, exhibition hall, Sports stadiums.
