UFO LED High Bay Teeb

Lus piav qhia luv luv:

High bay teeb yog streamlined qauv, tiv thaiv plua plav tsub zuj zuj, zoo xyuas kom meej tias lub teeb thiab lanterns tshav kub dissipation, ncua lub neej kev pab cuam ntawm lub teeb thiab teeb.
High bay LED lub teeb yog High-density die-casting aluminium heat sink nrog anti-corrosion hmoov txheej kho ntawm qhov chaw.
High bay teeb LED ua ke nrog patented technology ntawm high thermal conductivity media daim ntawv thov, lub teeb yog me me thiab lub teeb nyob rau hauv hnyav, yooj yim rau thauj, nruab thiab tswj.

Lawv siab bay yog UFO saucer-zoo li tus tsim, zoo nkauj tsos, khoom qauv, kom tau raws li cov kev xav tau ntawm ntau yam ib puag ncig qhov siab thiab installation.
Optical theem nrab lub teeb faib los txhim kho illumination uniformity thiab kev nplij siab hauv thaj chaw teeb pom kev zoo.
Kev tiv thaiv siab (IP65) kev ntsuas rau ntau qhov chaw ua haujlwm hnyav.




  • Lub zog:100W / 150W / 200W
  • Input voltage:100V-240VAC 50/60HZ
  • Lumen:13000LM-26000LM
  • Beam Angle:60 ° / 90 ° / 120 °
  • IP Tus Nqi:IP 65
  • NTAUB NTAWV

    SPECIFICATON

    APPLICATION

    Download tau

    Khoom cim npe

    Peb lub hom phiaj yog los pab peb cov neeg siv khoom thiab cov neeg siv khoom nrog cov khoom zoo tshaj plaws thiab kev sib tw portable digital khoom rau Kev xa khoom sai rau Tuam Tshoj 5 Xyoo Warranty Aluminium Efficency 150lm / W UFO Industrial LED High Bay Teeb rau Warehouse Factory Rhiav, Prospects first!Txhua yam koj xav tau, peb yuav tsum ua peb lub siab tshaj plaws los pab koj.Peb sov siab txais tos cov neeg siv khoom los ntawm thoob plaws lub ntiaj teb los koom tes nrog peb rau kev sib nrig sib pab.
    Peb lub hom phiaj yog los pab peb cov neeg siv khoom thiab cov neeg siv khoom nrog cov khoom zoo tshaj plaws thiab kev sib tw portable digital khoom rauTuam Tshoj Industrial Teeb, LED Industrial Teeb, Tam sim no peb cov khoom muag thoob plaws hauv lub tebchaws thiab txawv teb chaws ua tsaug rau cov neeg siv khoom tsis tu ncua thiab kev txhawb nqa tshiab.Peb muab cov khoom lag luam zoo thiab tus nqi sib tw, txais tos cov neeg siv khoom tsis tu ncua thiab tshiab koom tes nrog peb!

    UFO Disc Shape Design, Ua ke nrog Patented
    High Thermal Conductivity Media Application, Ua rau
    Luminaire Me me thiab lub teeb, yooj yim rau kev thauj mus los, nruab thiab tswj.

    coj ufo teeb

    LED round high bay lub teeb txais lub teeb pom kev zoo ntawm lub teeb pom kev, tsis muaj qhov cuam tshuam ntxiv lub teeb faib, tus nqi tsheb thauj mus los kuj qis dua.UFO high bay teeb muaj cov xim zoo, qhov kev nthuav qhia ntawm cov xim tiag tiag yog ntau dua.Ntau lub teeb xim tuaj yeem raug xaiv kom ua tau raws li qhov xav tau ntawm qhov chaw sib txawv, tshem tawm kev nyuaj siab los ntawm qhov kub siab lossis qis xim ntawm cov teeb ci thiab teeb ci, ua rau lub zeem muag zoo dua thiab txhim kho kev ua haujlwm ntawm cov neeg ua haujlwm.

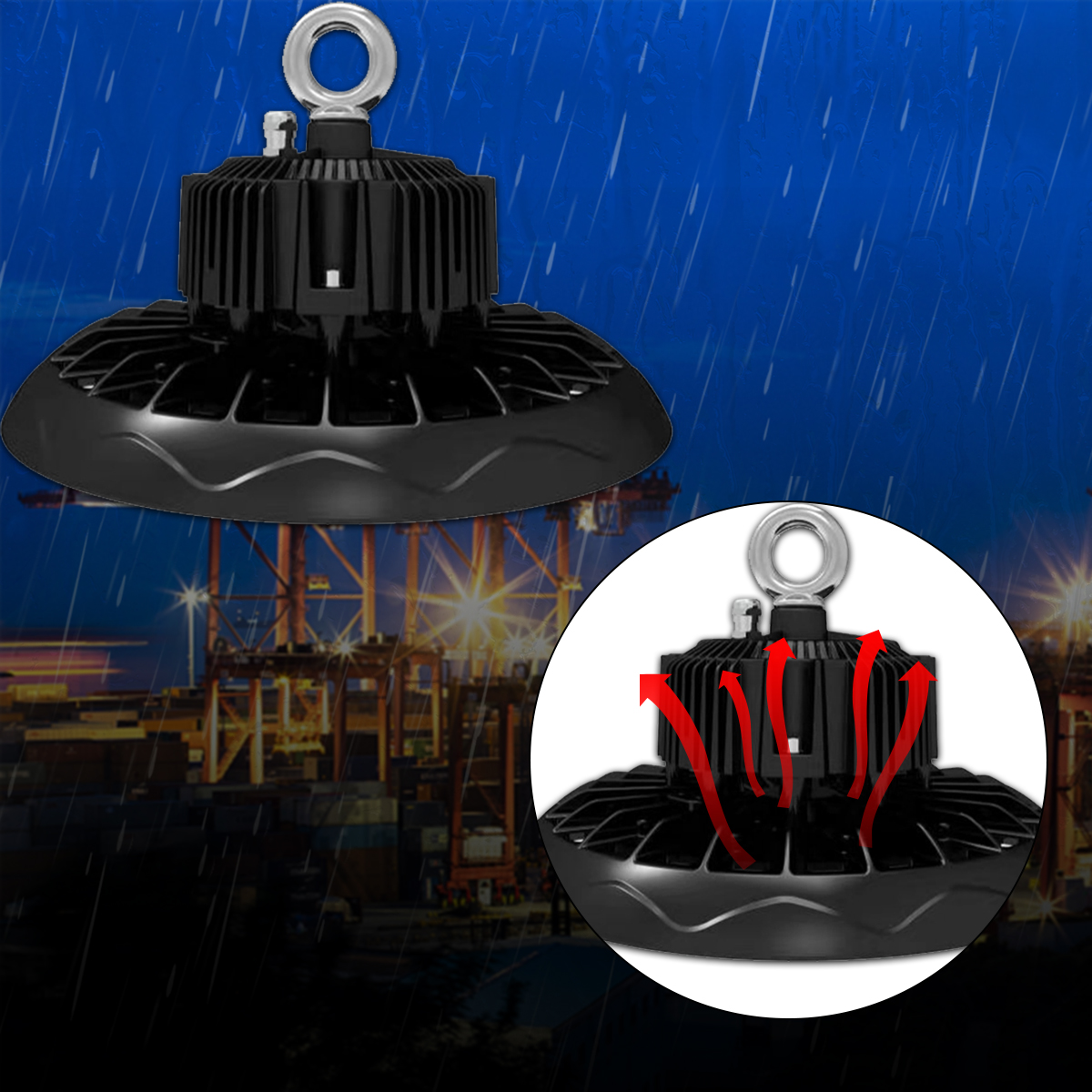

    Lub LED siab bay muaj teeb pom kev zoo cuam tshuam tiv thaiv fogging vim qhov kub ntawm qhov sib txawv, dej tsis zoo thiab tsis muaj plua plav.High bay led fixture muaj lub neej ntev, me me lub teeb lwj, higy bay coj teeb pom kev zoo tuaj yeem siv dav hauv sab nraum zoov thiab sab hauv tsev ntau yam kev thov hnyav.

    ua bay
    high bay ua

    Ntau yam kev xaiv rau coj high bay teeb

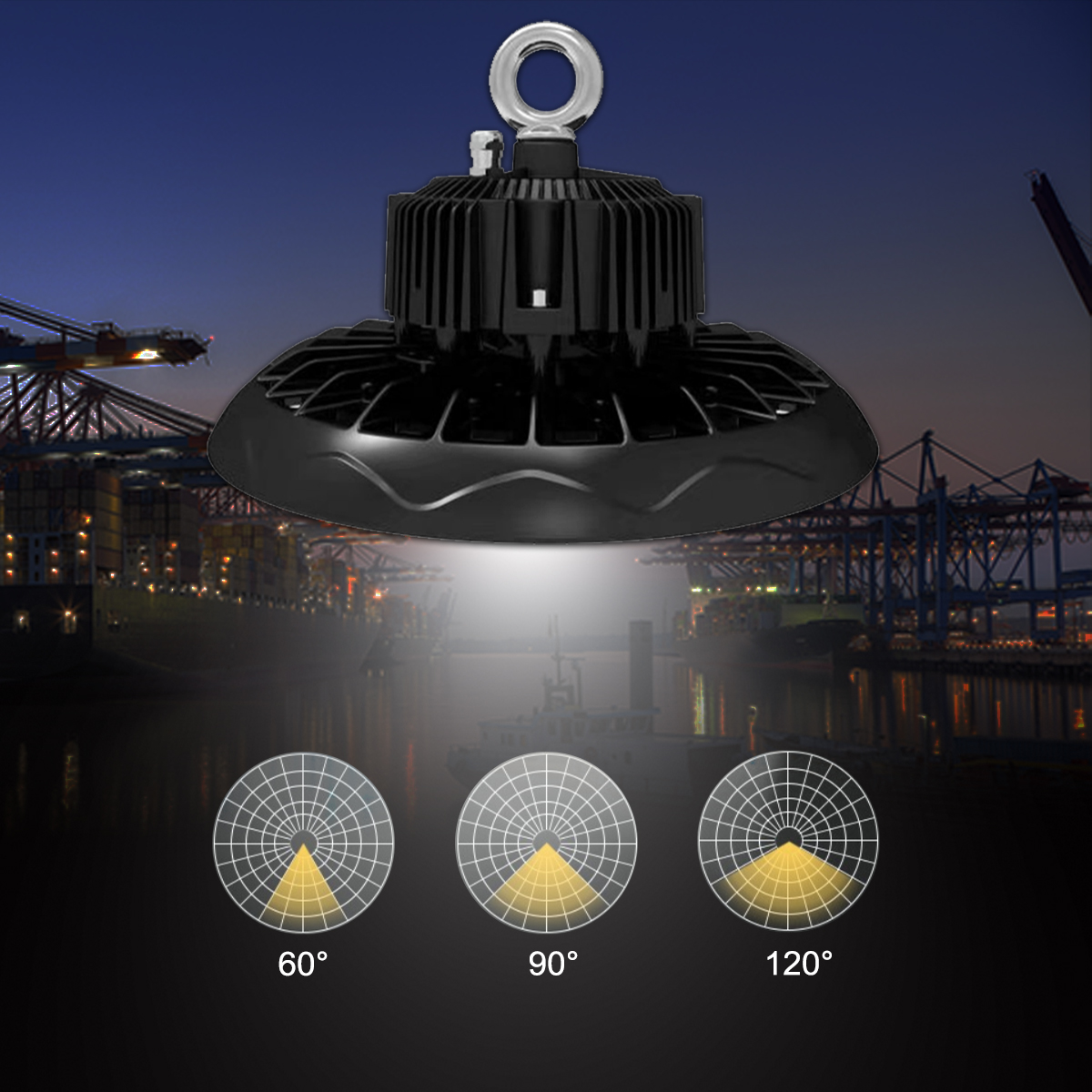

    Lub kaum ntse ntseCov khoom siv PC lens 60 ° / 90 °, pob tshab tiaj tus PC npog 120 °

    Bracket: yeem rotating sheet hlau bracket

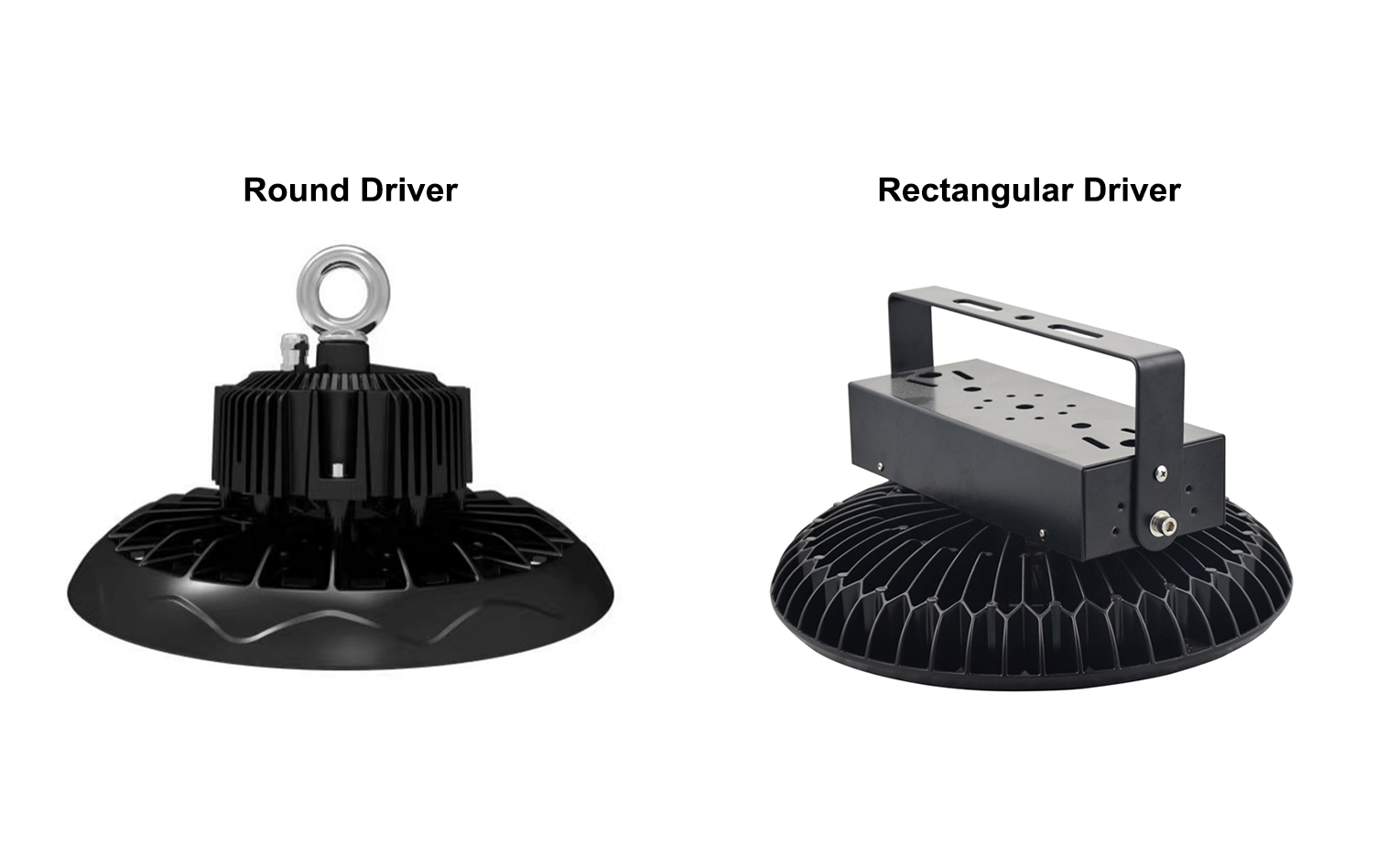

    Lub thawv fais fab: round / square hwj chim lub thawv (tuaj yeem xaiv lawv tus kheej lub hwj chim lub thawv sab saum toj npog)

    SPECIFICATON

    Qauv VKS-HB100W-E VKS-HB150W-E VKS-HB200W-E
    Lub zog nkag 100 W 150 W 200 W
    Khoom Loj (mm) φ266 × 163.5 hli φ300 × 165.6 hli φ340 × 168.6 hli
    Input voltage AC90-305V 50/60HZ
    LED Hom Lumileds (Philips) SMD 3030
    Fais fab mov Meanwell / ELG / SOSEN / Inventronics tsav tsheb
    Kev ua tau zoo (lm / W) ± 5% 130/140 lm/w
    Lumen tso zis ± 5% 13 000 LM 19500 LOJ 26 000 LM
    Beam Angle 60 ° / 90 ° / 120 °
    CCT (K) 4000K/5000K/5700K
    CRI Ra 70
    Tus nqi IP IP65
    PF ≥0.9
    SDCM ≤ 7
    IK Qib ib 07
    THD <20%
    Tsis tshua muaj Harmonics IEC 61000-3-2 Chav Kawm C
    Pib Sijhawm ≤0.5S (230V)
    Flicker <8%
    Warranty 5 xyoo

    LED UFO High Bay Lub Teeb Khoom Loj

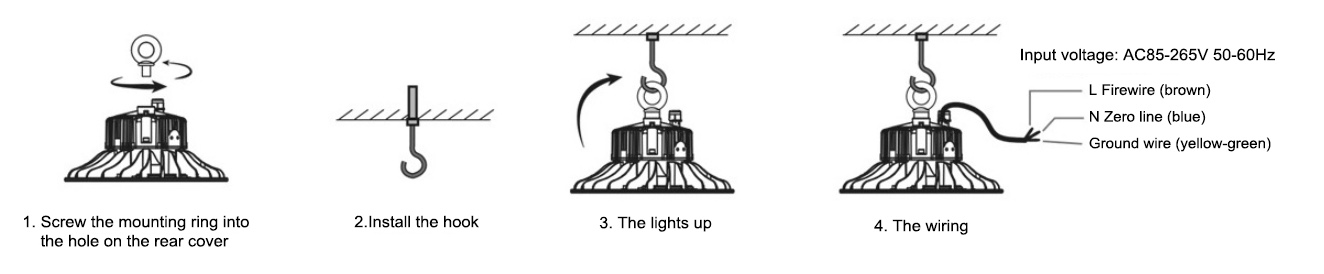

    LED UFO High Bay Teeb Kev teeb tsa

    LED UFO High Bay Teeb Pob

    APPLICATION

    Tsev kawm ntawv auditorium, tsev so, Hoobkas, chaw nres tsheb roj, hauv tsev gymnasium, exhibition hall, tsheb ciav hlau chaw tos tsheb, tsev qiv ntawv, logistics warehouse, txias cia, thiab lwm yam.
