100w rau 300w dej nyab teeb pom kev zoo

Lus piav qhia luv luv:

VKS slim ip65 dej nyab teeb pom kev zoo Nari Series muaj tag nrho wattage los ntawm 100w mus rau 300w siab zog ntau yam .Nari series kuj muaj tag nrho cov loj los ntawm cov teeb pom kev zoo no .it siv slim tempered glassed ik 08 npog tsim thiab zoo cua sov dab dej .Lim siv lumileds smd 3030 nti . mus txog 170lm / w lumen tso zis.

Lub zog::100w 150w 200w 300w

Input voltage::AC90-305V 50/60Hz

Lumen::15000-45000 hli

Beam Angle::30 ° / 60 ° / 90 ° / HOM Ⅱ / HOM Ⅲ / HOM Ⅳ

Xa email rau peb

NTAUB NTAWV

SPECIFICATON

daim ntawv thov

Download tau

Khoom cim npe

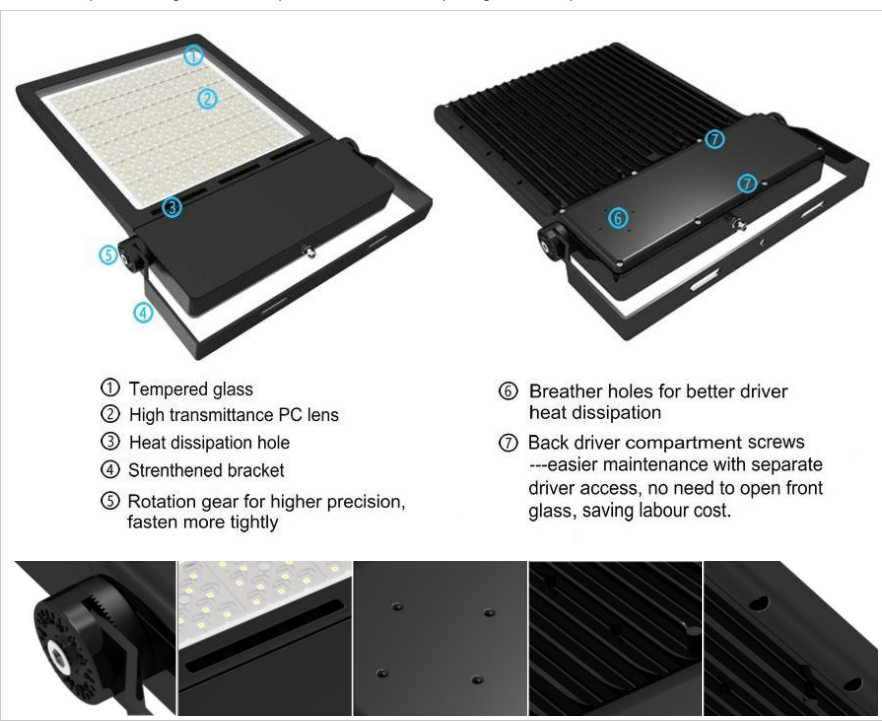

Feature

▪Watt ntawm 100w mus rau 300w, Mus txog 170lm siab lumen tso zis
▪ IP65 waterproof, Tuag-casting txhuas cov ntaub ntawv .Tam sim no cov tshuaj tsuag tshuaj . teeb pom kev zoo tuaj yeem ua haujlwm zoo hauv huab cua phem.
▪ Temper iav IK08, muaj kev nyab xeeb dua thiab ruaj khov, txheej txheej txheej txheej txheej.
▪ Smd 3030 nti, lub neej ntev, ua 5 xyoo lav
▪ Lens optics, Qib muaj 30/60/90/TPⅡ/TPⅢ/TPIV/TPV muaj kev xaiv

Lub teeb pom kev zoo dej nyab no nrog cov ntsiab lus ua haujlwm siab sab nraum zoov teeb pom kev zoo .peb lub tsev teeb pom kev zoo nrog lub dab dej kub kom zoo dua .Thiab teeb pom kev zoo siv bracket adjustable, tuaj yeem kho koj lub teeb kev taw qhia uas koj xav tau.

170lm / w siab lumen kev ua tau zoo coj dej nyab 300w siab lub zog teeb pom kev zoo, peb dhau CE CB TUV, ENEC, SAA RCM daim ntawv pov thawj .Peb lub teeb pom kev zoo kuj tuaj yeem dais theem ntawm kev cuam tshuam yog ik08.Peb lub teeb pom kev tsis zoo ip65 tuaj yeem kav 7-10 hnub hauv hnub los nag.

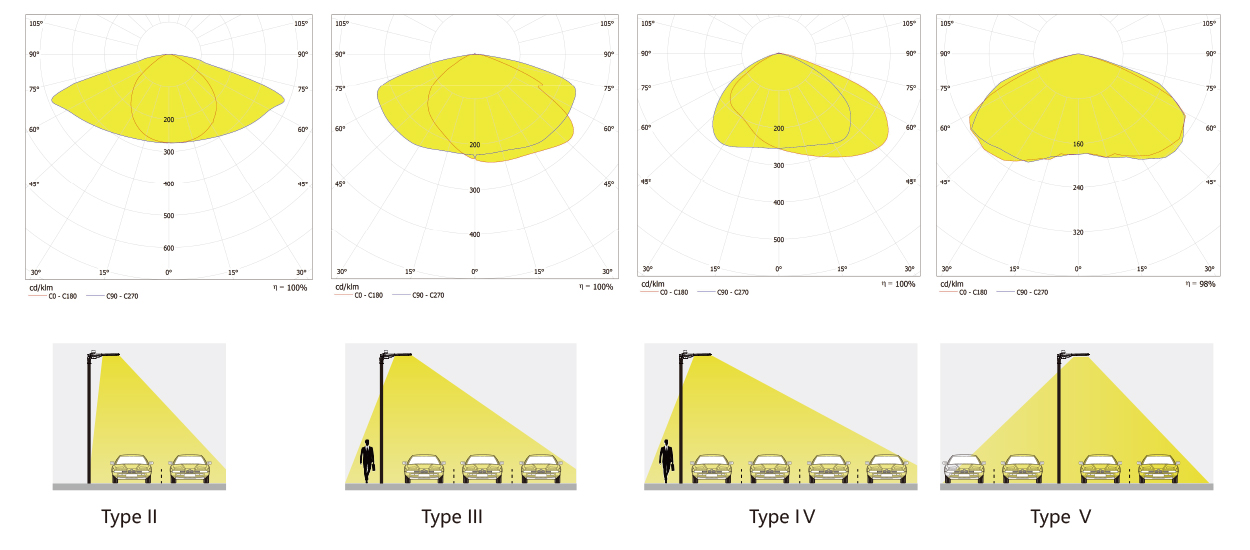

Powerstar teeb pom kev zoo muaj ntau yam kev xaiv nrog lub lens optics .Ntawm li ib txwm degree zoo li 30/60/90degree, kuj tuaj yeem ua Hom ⅡⅢ Ⅳ rau packing ntau cheeb tsam .TypeⅡ tuaj yeem npog ob lub tsheb .type Ⅲ tuaj yeem npog peb lub tsheb thiab txoj kev taug kev .rau IV Hom , Lub kaum sab xis dav dua tuaj yeem npog plaub lub tsheb thiab txoj kev taug kev, hom V tuaj yeem npog ob sab teeb.Koj tuaj yeem xaiv lub teeb pom kev zoo rau koj qhov project.

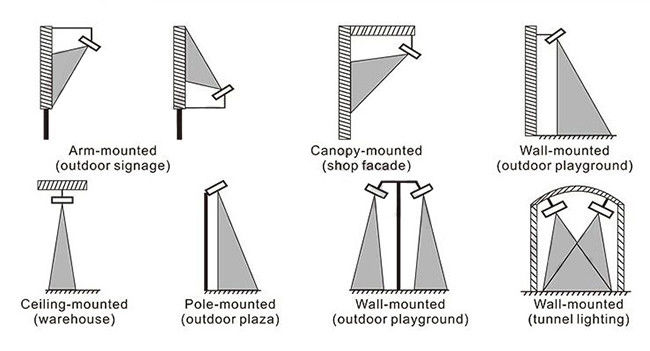

Dej nyab lighitng slim muaj kev xaiv sib txawv .Rau adjustable bracket tuaj yeem 180degree rotataion .koj tuaj yeem ua Arm mounted, phab ntsa mounted, qab nthab mounted, ncej-mounted thiab lwm yam.

Specification

Qauv	VKS-FL100W-N	VKS-FL150W-N	VKS-FL200W-N	VKS-FL300W-N
Hwj chim	100 W	150 W	200 W	300 W
Cov khoom loj (mm)	Φ314.9 * 244.8 hli	Φ364.9 * 289.8 hli	Φ492.6 * 378.7 hli	Φ530 * 444 hli
Input voltage	AC90-305V 50/60Hz
LED Hom	Lumileds (Philips) SMD 3030
Fais fab mov	Meanwell / SOSEN / Inventronics tsav tsheb
Kev ua tau zoo (lm / W) ± 5%	150-170 LM / W
Lumen tso zis ± 5%	15 000 LM	22 500 LM	30 000 LM	45 000 LM
Beam Angle	30 ° / 60 ° / 90 ° / HOM Ⅱ / HOM Ⅲ / HOM Ⅳ
CCT (K)	3000K/4000K/5000K/5700K
CRI	Ra70 (Ra80 rau xaiv)
Tus nqi IP	IP65
PF	> 0.95
Dimming	Tsis-dimming (Default) / 1-10V Dimming / Dali dimming
Khoom siv	Die-Cast + Lens
Kev ua haujlwm Tenperature	-40 ℃ ~ 65 ℃
Cov av noo	10% ~ 90%
Ua kom tiav	Hmoov Txheej
Kev tiv thaiv Surge	4kV kab-kab (10KV, 20KV rau kev xaiv)
Mounting Option	Bracket
Warranty	5 Xyoo
Q'TY (PCS) / thawv	1 Pcs
Carton Loj (mm)	3.6kg ib	4,5 Kg	5 ,42kg	8,6g :ua
GW (KG / thawv)	415 * 350 * 100 hli	475 * 395 * 98mm	540 * 420 * 90mm	630 * 490 * 97 hli
	4.05kg ib	5.1kg ua	6kg ua	9.5 Kg ib

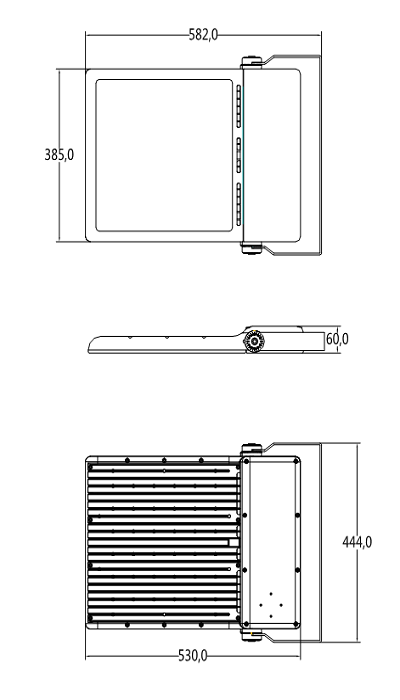

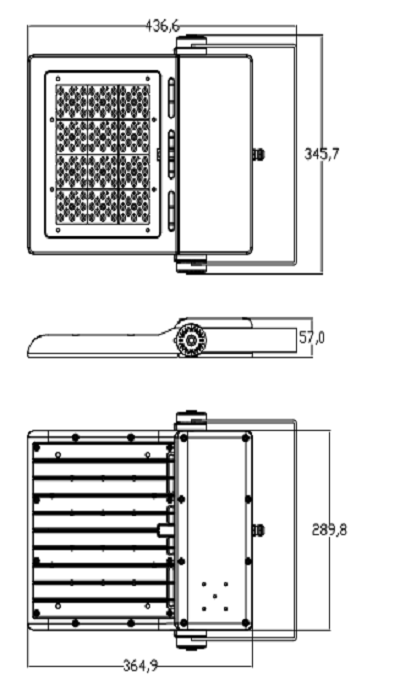

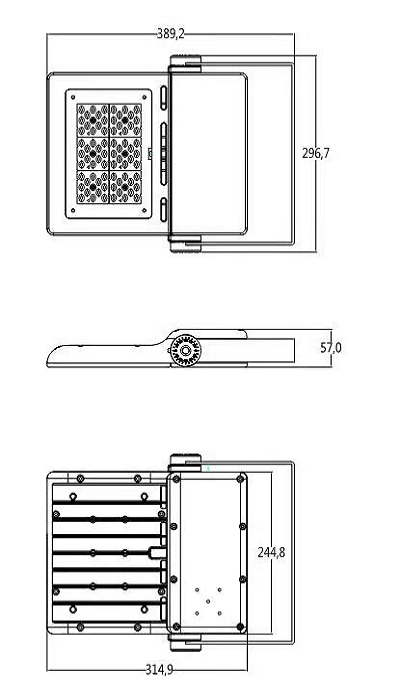

Daim duab loj

APPLICATION

Qhov no slim high luminous efficiency dej nyab teeb tau dav siv rau hauv nroog teeb pom kev zoo los ntawm cov tsev mus rau cov choj, los ntawm txoj kev mus rau cov chaw nres tsheb, los ntawm thaj chaw ntsuab mus rau cov neeg taug kev, los ntawm cov chaw ua si mus rau cov chaw ua si.
