130lm / w 150lm / w 170lm / w Led Street Teeb pom kev zoo

Lus piav qhia luv luv:

VKS yog cov chaw tsim khoom siv hluav taws xob tsis muaj dej tsis zoo, muab cov khoom lag luam zoo patent ntiag tug-pwm cov khoom, ST8 series coj txoj kev teeb pom kev zoo txais cov kev tiv thaiv glare lens, ntau lub lens optical yog xaiv tau nrog Philips Lumileds 3030/5050 LED, zoo cua sov dissipation kev ua tau zoo thiab qib tiv thaiv mus txog IP66.

Lub zog::50W, 75W, 120W, 1800W,

Input voltage::AC90-305V 50/60Hz

Lumen::6500-30600 hli

Beam Angle::60/90/120°/T2M/T3M/T4M

IP tus nqi: :IP66

Xa email rau peb

NTAUB NTAWV

SPCIFICATION

APPLICATION

Download tau

Khoom cim npe

130lmw 150lmw 170lmw Led Street Lighting

130lmw 150lmw 170lmw Led Street Teeb pom kev zoo (2)

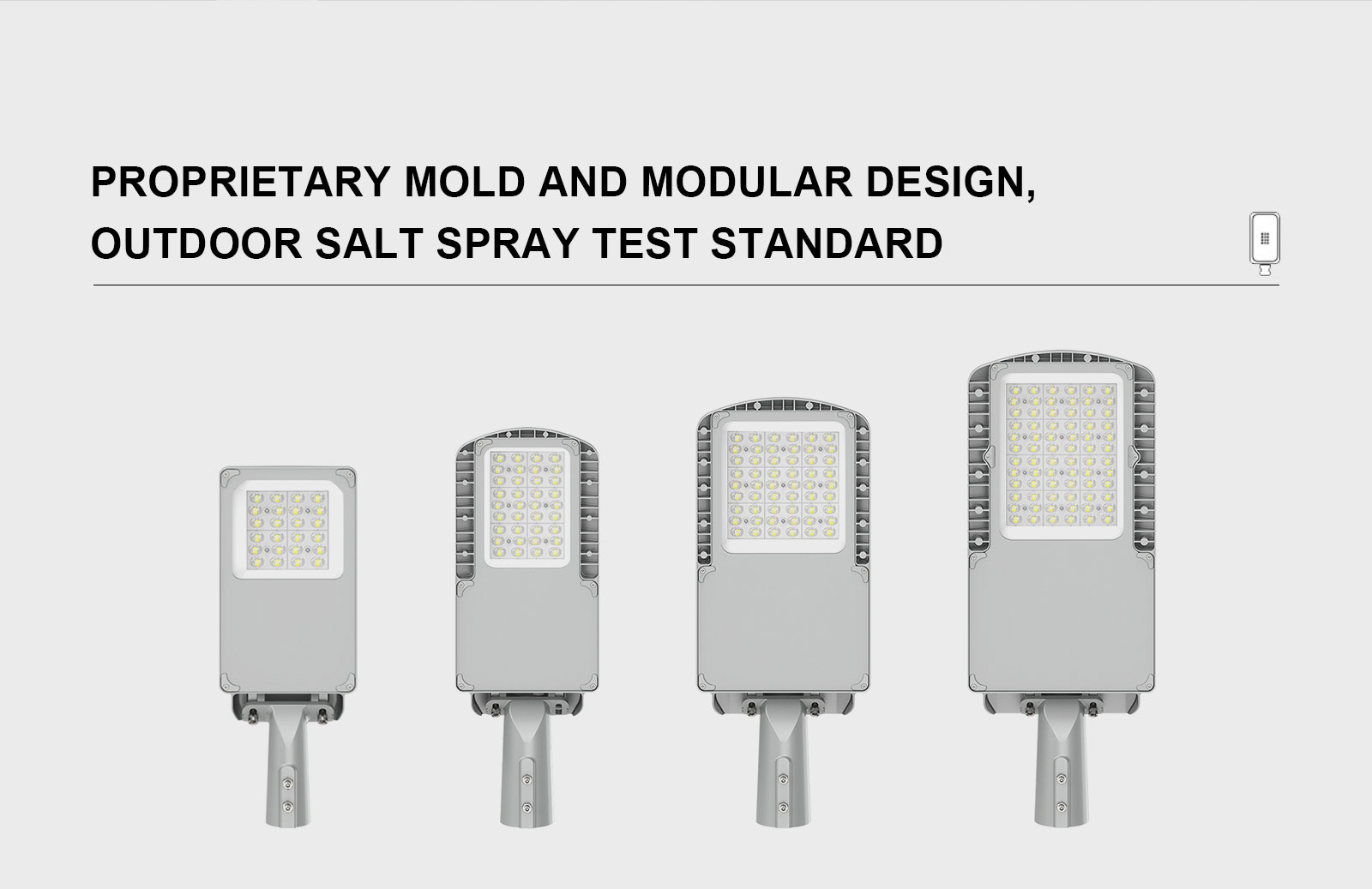

VKS SL8seriesIP66 LED txoj kev teeb pom kev zoomodule tsim, tus kheej pwm, tshwj xeeb patent, nto hmoov txau, qhov tseem ceeb dawb sab nraum zoov tshwj xeeb, me thiab zoo heev qhov cua qauv tsim, txhim kho lub tshav kub dissipation coefficient thiab tag nrho convection muaj peev xwm, raws li sab nraum zoov ntsev tsuag tshuaj ntsuam qauv thiab hnub ci hluav taws xob kuaj qauv.

Anti-glare thiab lub zog txuag, nyab xeeb thiab txhim khu kev qha

VKS SL8 series 60W-180W coj txoj kev teeb pom kev zoo xav txog kev hloov pauv ntawm tus neeg tsav tsheb mus rau lub teeb hloov pauv, tsim nyog siv lub teeb lub zog, nyob rau hauv lub teeb loj dua los muab kev tswj lub teeb, teeb pom kev zoo, tsis muaj glare, tsis muaj qhov sib txawv, zoo rau cov neeg tsav tsheb thiab cov neeg taug kev- los ntawm kev txheeb xyuas qhov xwm txheej ntawm txoj kev, muaj kev nyab xeeb thiab txhim khu kev qha, lub teeb ua haujlwm txog li 170lm / W, kev siv hluav taws xob tsawg, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig.

130lmw 150lmw 170lmw Led Street Teeb pom kev zoo (4)

130lmw 150lmw 170lmw Led Street Teeb (5)

Ntau yam ntawm cov tshuab kho qhov muag muaj thiab muab cov qauv tsim teeb pom kev zoo tshaj plaws

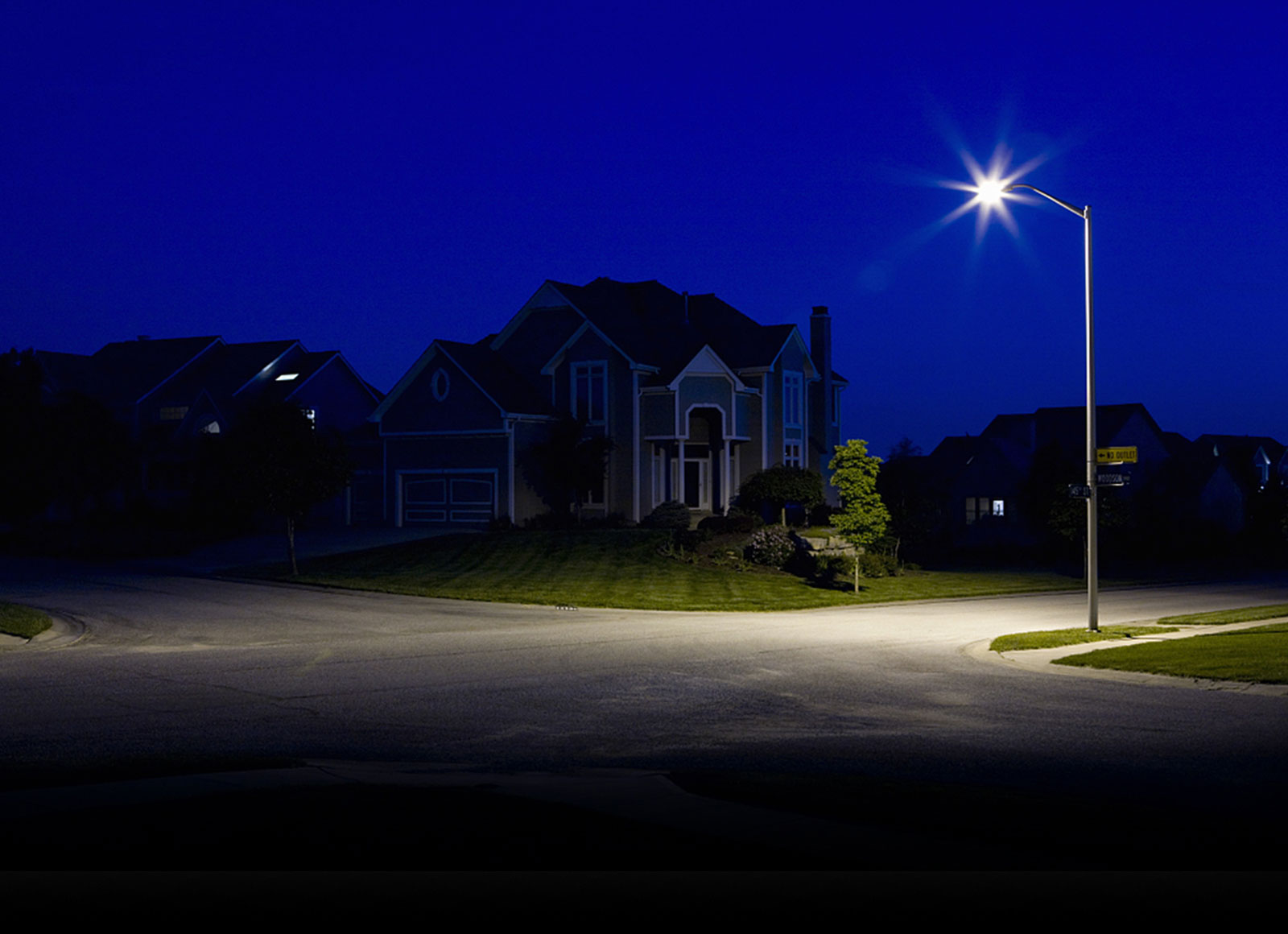

Txoj kev teeb pom kev zoo yog siv rau hauv kev sib tshuam, kev nkhaus, ramps, railway crossings, crosswalks thiab lwm qhov chaw tshwj xeeb.Cov kws tshaj lij coj txoj kev teeb pom kev zoo cov neeg muag khoom yuav xav txog lub zog ntawm txoj kev teeb, kev teeb tsa qhov siab thiab qhov sib nrug ntev los muab cov qauv tsim teeb pom kev zoo, kev pom kev zoo nkauj, thiab ua tiav cov teeb pom kev zoo tshaj plaws.

VKS SL8 series ntse teeb pom kev zoo tuaj yeem siv Is Taws Nem ntawm Yam thiab huab suav thev naus laus zis txhawm rau txhim kho lub nroog pej xeem teeb pom kev zoo tswj kev tswj hwm, paub txog kev tswj hwm lub hauv paus ntawm txoj kev teeb, kev ua haujlwm thiab kev saib xyuas cov ntaub ntawv, teeb pom kev ntse, tuaj yeem paub lub sijhawm ua haujlwm, ntse dimming. , active tswb, thiab lwm yam.

SPECIFICATON

Qauv	VKS-ST50W-F	VKS-ST75W-F	VKS-ST120W-F	VKS-ST180W-F
Hwj chim	50 W	75w ua	120 W	180 W

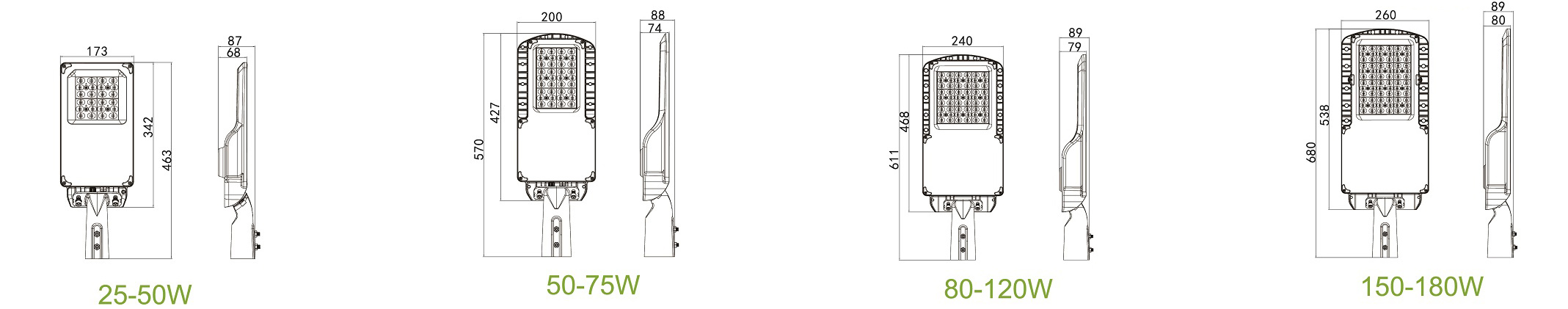

Cov khoom loj (mm)	L463 * W173 * H87mm	L570 * W200 * H88 hli	L611 * W240 * H89mm	L680 * W260 * H89 hli

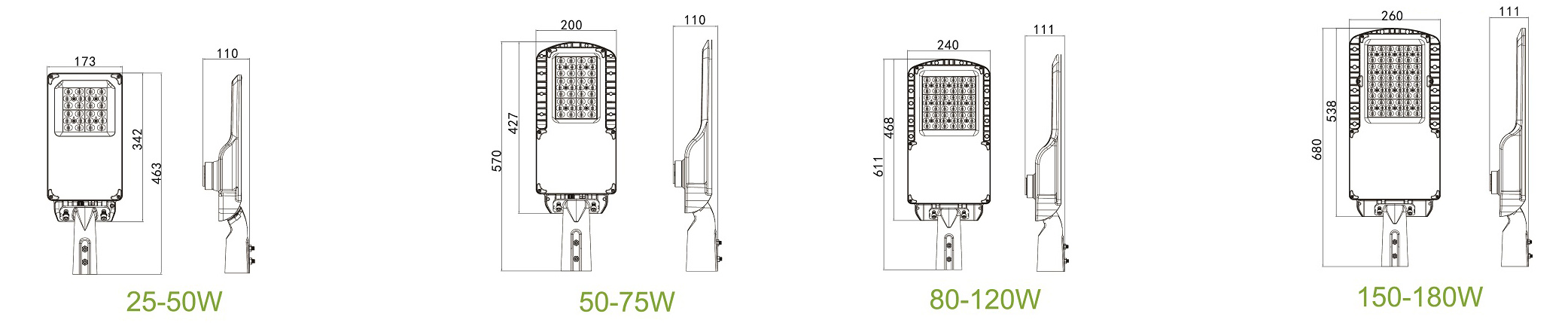

Khoom Loj nrog lub teeb sensor (mm)	L463 * W173 * H110mm	L570 * W200 * H110mm	L611 * W240 * H111mm	L680 * W260 * H111 hli
Input voltage	AC90-305V 50/60Hz
LED Hom	Lumileds (Philips) SMD 3030/5050
Fais fab mov	Meanwell / SOSEN / Inventronics tsav tsheb
Kev ua tau zoo (lm / W)	130/150/170LM/W (5000K, Ra70) yeem
Lumen tso zis ± 5%	6500-8500 LM	9750-12750 dr hab	15600-20400 LWM	23400-30600 LWM

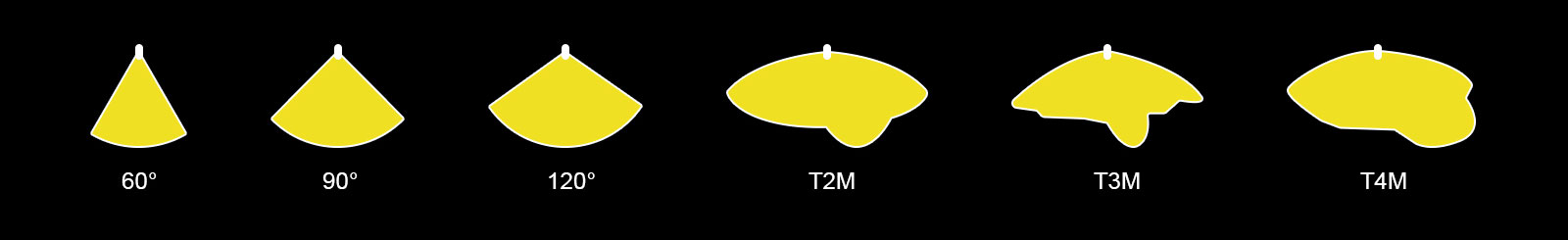

Beam Angle	60 ° / 90 ° / 120 ° / T2M / T3M / T4M
CCT (K)	3000K/4000K/5000K/5700K
CRI	Ra70 (Ra80 rau xaiv)
Tus nqi IP	IP66
PF	> 0.95
Dimming	Tsis-dimming (Default) / 1-10V Dimming / Dali dimming
Intelligent Control	Lub sijhawm tswj / Lub teeb Sensor
Khoom siv	Die-Cast + PC Lens
Kev ua haujlwm Tenperature	-40 ℃ ~ 65 ℃
Cov av noo	10% ~ 90%
Ua kom tiav	Hmoov Txheej
Kev tiv thaiv Surge	4kV kab-kab (10KV, 20KV rau kev xaiv)
Mounting Option	Bracket
Warranty	5 Xyoo
Q'TY (PCS) / thawv	1 Pcs	1 Pcs	1 Pcs	1 Pcs
NW (KG / carton)	2.0kg ib	3.1kg ib	3.8kg ua	4.6kg ua
Carton Loj (mm)	540 * 266 * 165mm	623 * 255 * 150 hli	666 * 295 * 150 hli	736 * 315 * 150 hli
GW (KG / thawv)	2.4kg ib	3.6kg ib	4.5kg ib	5,4kq ua
