50w rau 200w slim ip65 dej nyab teeb pom kev zoo

Lus piav qhia luv luv:

VKS slim ip65 dej nyab teeb pom kev zoo Jarett Series muaj tag nrho wattage los ntawm 50w mus rau 200w siab zog ntau yam .Nari series kuj muaj tag nrho cov loj los ntawm cov teeb pom kev zoo no .it siv slim tempered glassed ik 08 npog tsim thiab zoo tshav kub dab dej .Lim siv lumileds smd 3030 nti . mus txog 150lm / w lumen tso zis.

Lub zog::50w 100w 150w 200w

Input voltage::AC90-305V 50/60Hz

Lumen::7500-30000 hli

Beam Angle::30 ° / 60 ° / 90 ° / 120 °

Xa email rau peb

NTAUB NTAWV

SPECIFICATON

daim ntawv thov

Download tau

Khoom cim npe

Feature

▪Watt ntawm 50w mus rau 200w, Mus txog 150lm siab lumen tso zis
▪ Kev ntsuam xyuas IP65 xyuas kom meej tias cov teeb pom kev zoo no tsis muaj dej tsis zoo thiab haum rau siv sab hauv tsev lossis sab nraum zoov
▪ Temper iav IK08, muaj kev nyab xeeb dua thiab ruaj khov, txheej txheej txheej txheej txheej.
▪ Smd 3030 nti, lub neej ntev, ua 5 xyoo lav
▪Slim tiaj tus tsim, adjustable bracket 270 degree

Peb ip65 dej nyab teeb pom kev zoo teeb duab kos duab los ntawm powerstar engineer team .Peb tsuas yog xav qhia peb cov ntsiab lus ntau lub teeb rau qhov sab nraum zoov lighitng .peb siv cov iav tempered thiab tshwj xeeb pcb puag .uas tuaj yeem tso ntau smd nti .kom peb tuaj yeem muab siab lumen tshaj lwm tus. .

Peb lub teeb pom kev nyab xeeb tuaj yeem tso rau hauv qhov chaw ntub dej .ip65 teeb pom kev zoo tuaj yeem txuag tau li 75% lub zog txuag .qee lub teb chaws yuav rov qab nyiaj rau kev txuag hluav taws xob .nws tuaj yeem hloov tau 700w halogen noob .qhov teeb pom kev zoo no peb muab 5 xyoo lav .peb tau dhau daim ntawv pov thawj ce rhos .

Ntse dej nyab teeb pom kev tuaj yeem ua tau RGBW Teeb pom kev zoo .koj tuaj yeem xaiv wireless xws li wifi, 2.4G, Bluetooth, zigbeer thiab lwm yam los ua app tswj .rau koj lub teeb vaj tsev sab nraum zoov, thaum koj caw koj cov phooj ywg los koom tog hauv koj lub sam thiaj lossis vaj . muaj yeeb yuj teeb pom kev zoo yuav ua rau koj zoo siab thiab txaus siab rau koj lub sijhawm.

Specification

Qauv	VKS-FL-50W-J	VKS-FL-100W-J	VKS-FL-150W-J	VKS-FL-200W-J
Hwj chim	50 W	100 W	150 W	200 W
Cov khoom loj (mm)	Φ216.5 * 152 hli	Φ310.5 * 220mm	Φ402.5 * 295 hli	Φ470 * 360 hli
Input voltage	AC90-305V 50/60Hz
LED Hom	Lumileds (Philips) SMD 3030
Fais fab mov	Meanwell / SOSEN / Inventronics tsav tsheb
Kev ua tau zoo (lm / W) ± 5%	150 LM / W
Lumen tso zis ± 5%	7 500 lm	15 000 LM	22 500 LM	30 000 LM
Beam Angle	30 ° / 60 ° / 90 ° / 120 °
CCT (K)	3000K/4000K/5000K/5700K
CRI	Ra70 (Ra80 rau xaiv)
Tus nqi IP	IP65
PF	> 0.95
Dimming	1-10V Dimming / Dali dimming / ntse teeb pom kev zoo
Khoom siv	Die-Cast + Lens
Kev ua haujlwm Tenperature	-40 ℃ ~ 65 ℃
Ua kom tiav	Hmoov Txheej
Mounting Option	Bracket
Warranty	5 Xyoo

Daim duab loj

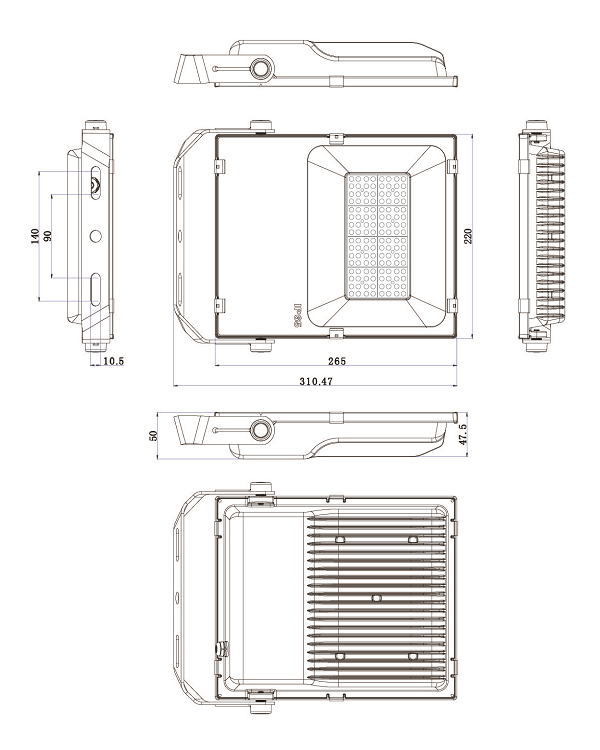

100w 150000lm kos duab dej nyab teeb daim ntawv thov

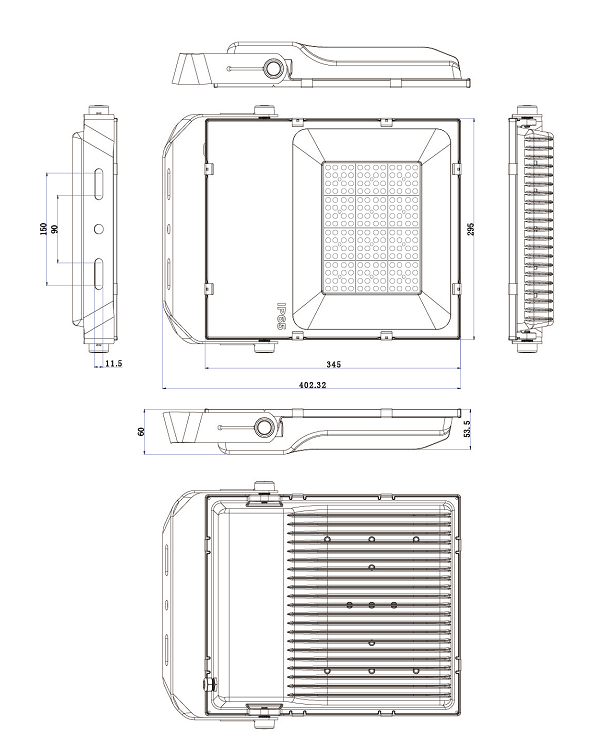

150w 225000lm siab lumen IP65 qhov teeb pom kev zoo applicaiton

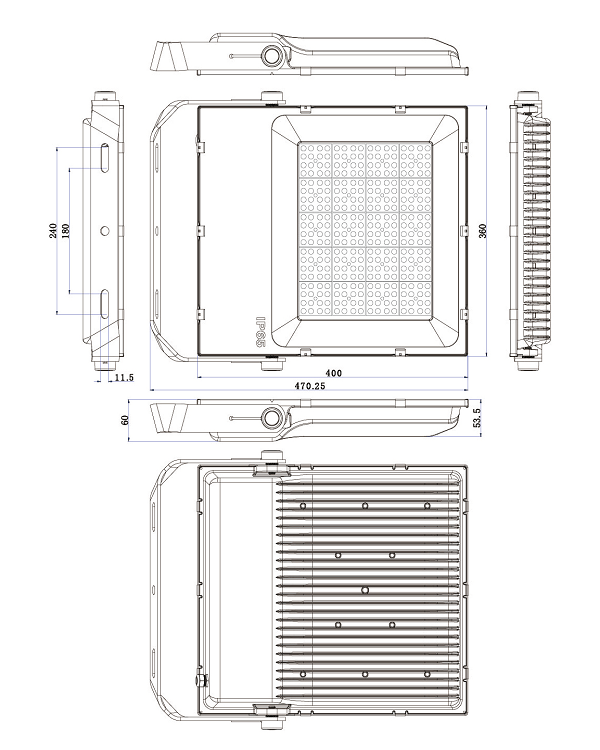

200w 30000lm phab ntsa washer IP65 Sab nraum zoov teeb pom kev zoo daim ntawv thov

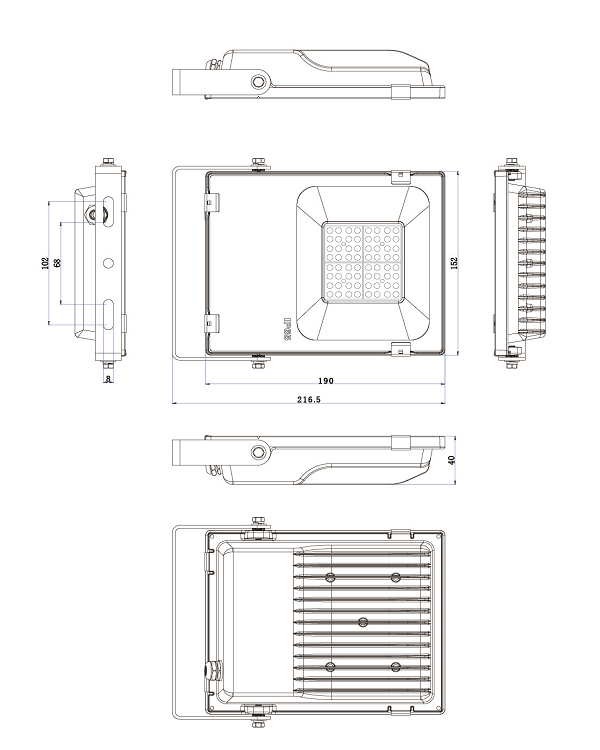

kos duab rau 50w dej nyab teeb pom kev zoo

APPLICATION

Qhov no slim high luminous efficiency dej nyab teeb tau dav siv rau hauv nroog teeb pom kev zoo los ntawm cov tsev mus rau cov choj, los ntawm txoj kev mus rau cov chaw nres tsheb, los ntawm thaj chaw ntsuab mus rau cov neeg taug kev, los ntawm cov chaw ua si mus rau cov chaw ua si.
