LED High Bay Lub teeb 200W

Lus piav qhia luv luv:

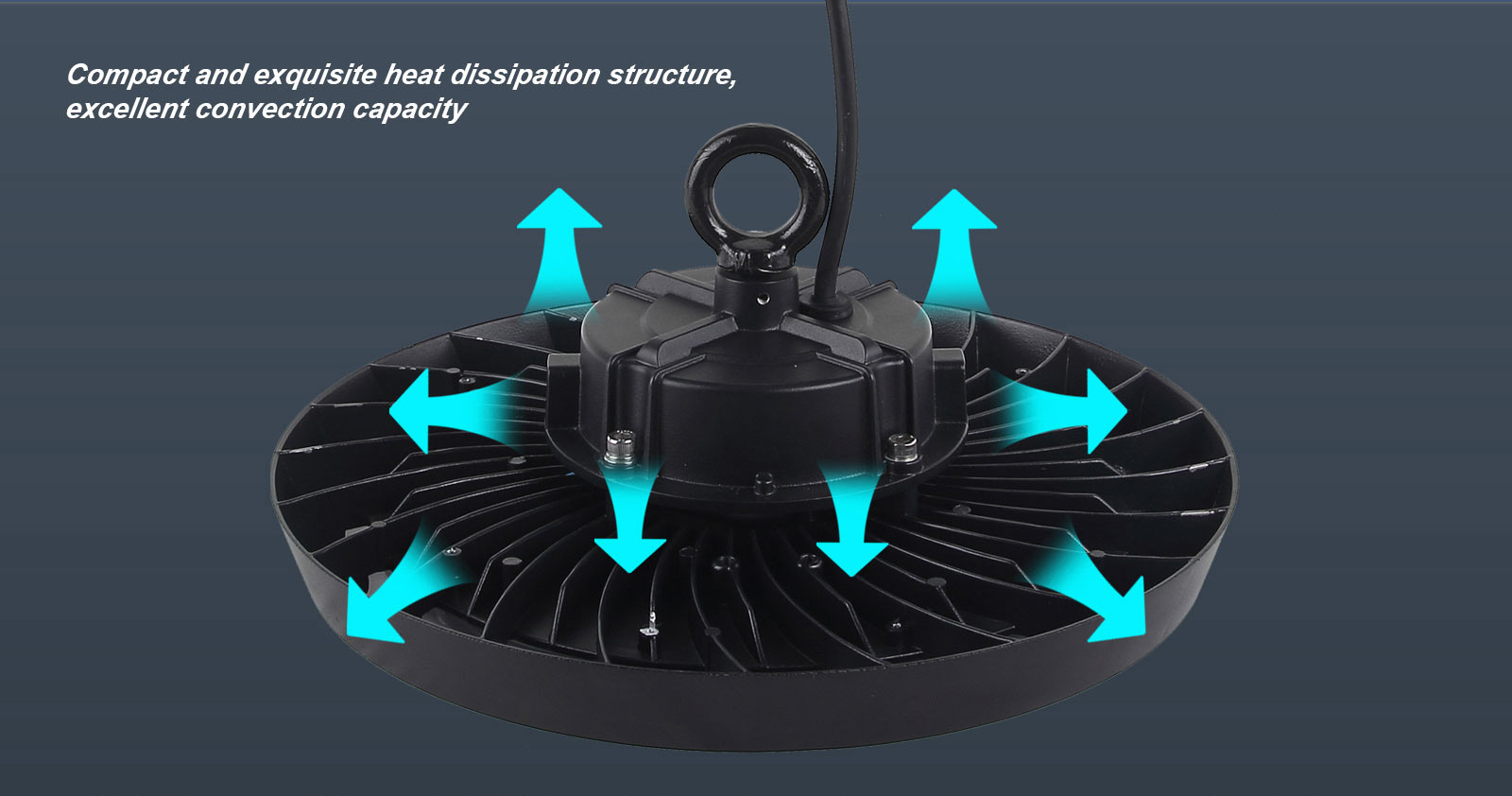

VKS lub teeb ua haujlwm siab UFO coj lub teeb ci siab, txuag hluav taws xob thiab siv hluav taws xob tsawg nrog kev ua haujlwm zoo ib puag ncig, muag muag thiab me me vaj tse thiab tawg-pov thawj qauv tsim, zoo heev tshav kub dissipation qauv, tsis tshua muaj thermal nqi, dav siv rau warehouse teeb pom kev zoo, kev ua si. teeb pom kev zoo, Rhiav teeb pom kev zoo, khw muag khoom teeb pom kev zoo, lub tsev loj teeb pom kev zoo thiab gym teeb pom kev zoo thiab lwm yam.


  • Lub zog::50W, 100W, 150W, 200W, 240W
  • Input voltage::AC90-305V 50/60Hz
  • Lumen::8250-39600 hli

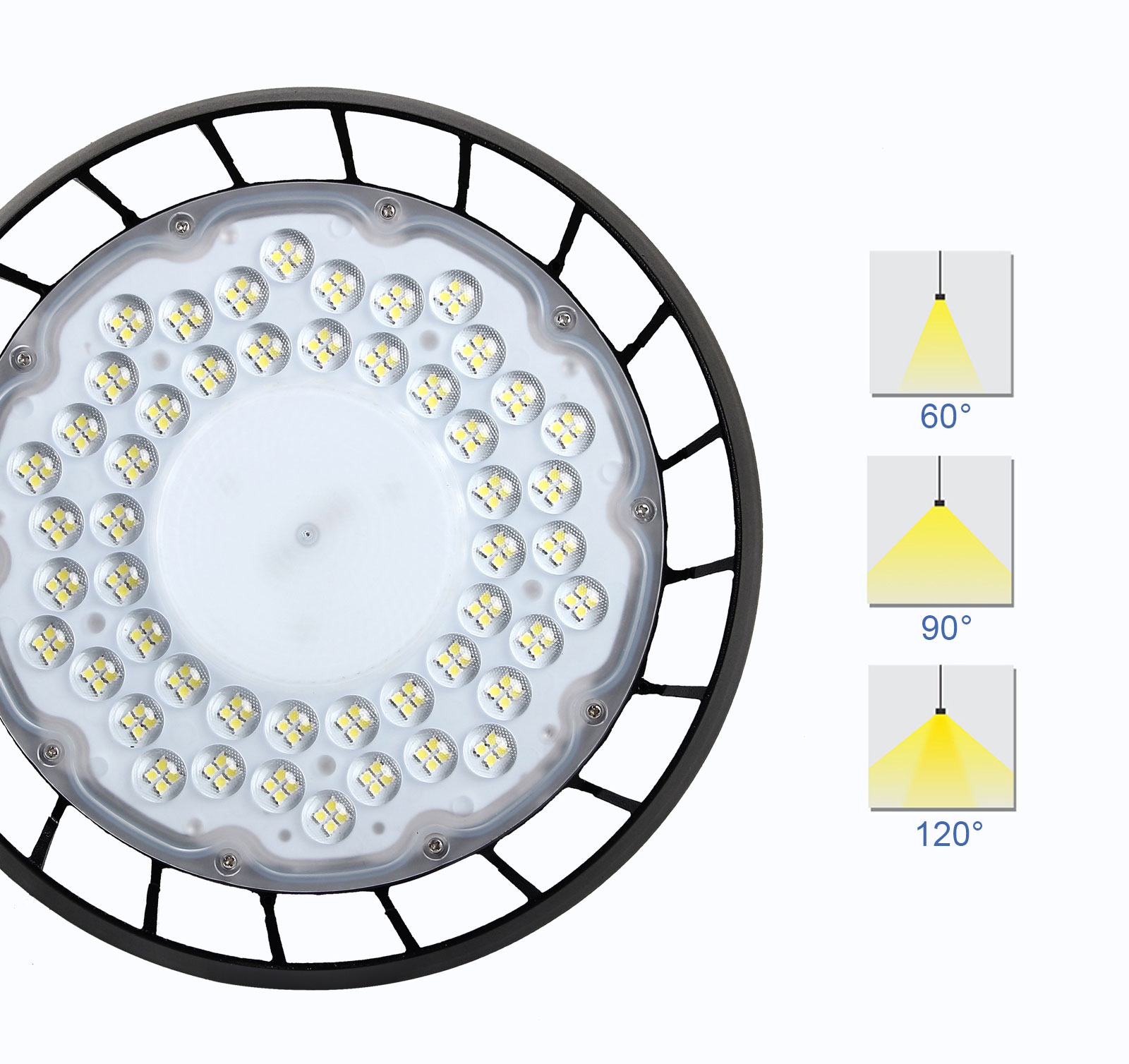

  • Beam Angle::60/90/120 °

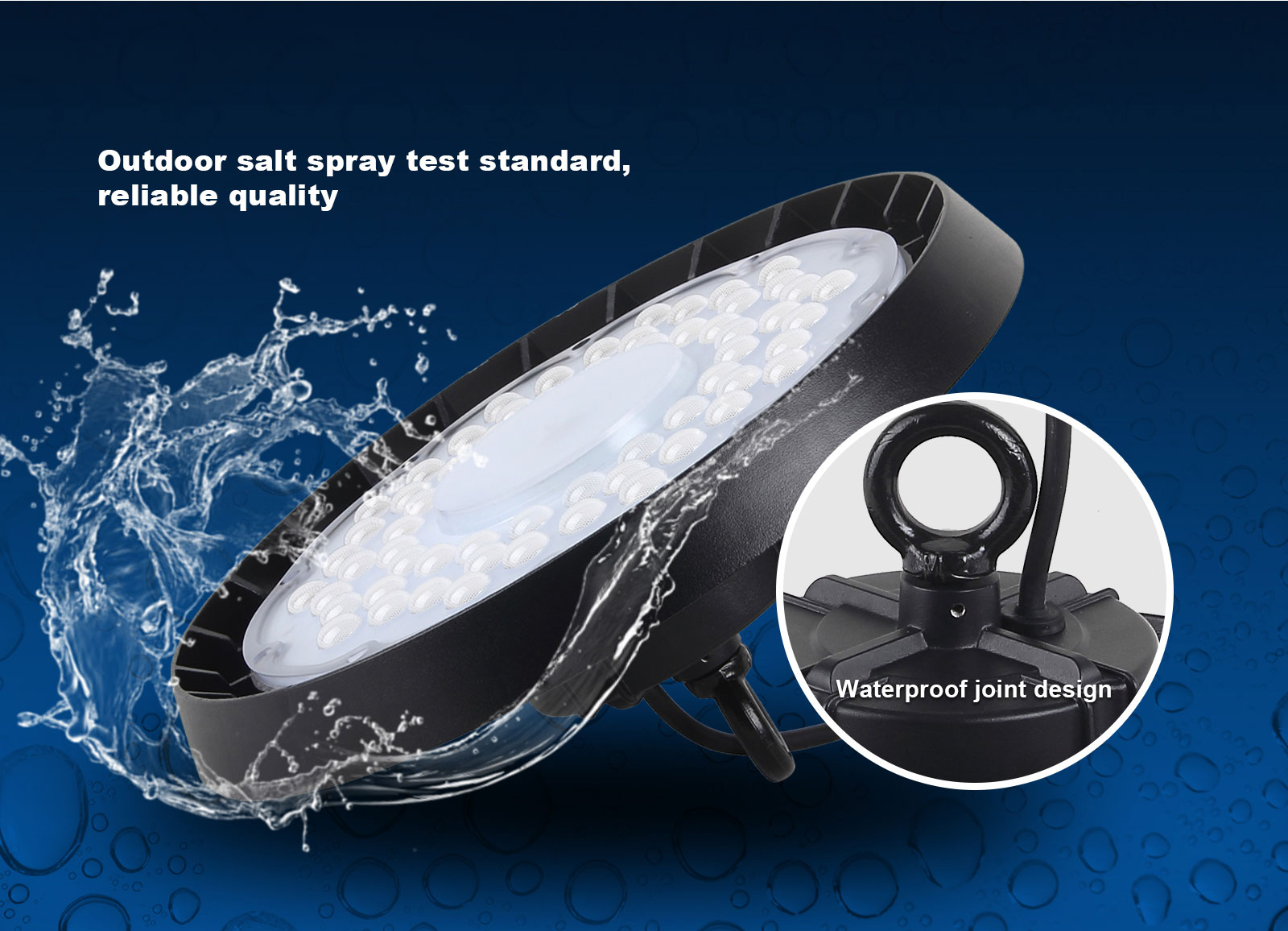

  • IP tus nqi: :IP65
  • NTAUB NTAWV

    SPECIFICATON

    APPLICATION

    Download tau

    Khoom cim npe

    Tau txais cov neeg yuav khoom ua tiav yog peb lub tuam txhab lub hom phiaj tsis muaj qhov kawg.Peb yuav ua cov thawj coj zoo kawg nkaus kom tau txais cov kev daws teeb meem tshiab thiab zoo tshaj plaws, ntsib nrog koj cov kev tshwj xeeb tshwj xeeb thiab muab rau koj nrog kev muag khoom ua ntej, muag thiab tom qab muag rau LED High Bay Teeb 200W, Peb ntseeg tias muaj kev mob siab rau, hloov pauv. thiab pab neeg tau txais kev cob qhia zoo yuav tsum muaj peev xwm tsim kom muaj kev lag luam zoo thiab muaj txiaj ntsig kev lag luam kev sib raug zoo nrog koj sai sai.Thov tiag tiag tsis muaj nqi los tuav peb kom paub meej ntxiv.
    Tau txais cov neeg yuav khoom ua tiav yog peb lub tuam txhab lub hom phiaj tsis muaj qhov kawg.Peb yuav ua cov tswv yim zoo heev kom tau txais cov kev daws teeb meem tshiab thiab zoo tshaj plaws, ntsib nrog koj qhov tshwj xeeb tshwj xeeb thiab muab rau koj nrog kev muag khoom ua ntej, ntawm-muag thiab tom qab-muag muab kev pabcuam rauTuam Tshoj LED Dej nyab lub teeb, Industrial LED Teeb pom kev zoo, Peb muaj ntau tshaj 10 xyoo exported kev thiab peb cov khoom tau exported ntau tshaj 30 lub teb chaws nyob ib ncig ntawm lo lus.Peb ib txwm tuav cov kev pabcuam tenet Client ua ntej, Zoo ua ntej hauv peb lub siab, thiab nruj nrog cov khoom zoo.Zoo siab txais tos koj tuaj xyuas!

    Super zog txuag, siv hluav taws xob tsawg, kev noj qab haus huv thiab kev tiv thaiv ib puag ncig

    VKS HB3 series LED UFO teeb ntsuas 170lm / w, kev teeb pom kev zoo, tsis muaj ultraviolet, thermal hluav taws xob tsawg, zam lub teeb pom kev zoo uas muaj nyob rau hauv infrared thiab ultraviolet kev puas tsuaj rau tib neeg lub cev, lub teeb ua haujlwm siab, tsis muaj zog noj, txo kev noj ntawm hluav taws xob, ua kom muaj kev siv ntau tshaj plaws, txuag nqi tib lub sijhawm kuj tiv thaiv ib puag ncig.









    170lmW UFO LED High Bay Teeb (2)
    170lmW UFO LED High Bay Teeb (3)
    170lmW UFO LED High Bay Teeb (4)
    170lmW UFO LED High Bay Teeb (5)
    170lmW UFO LED High Bay Teeb (6)

    SPECIFICATON

    Qauv VKS-HB50W-D VKS-HB100W-D VKS-HB150W-D VKS-HB200W-D VKS-HB-240W-D
    Hwj chim

    50 W

    100 W

    150 W

    200 W

    240 W

    Cov khoom loj (mm) Φ254 * 112 hli Φ254 * 112 hli Φ295 * 112 hli Φ335 * 160mm Φ335 * 160mm
    Input voltage

    AC90-305V 50/60Hz

    LED Hom

    Lumileds (Philips) SMD 3030

    Fais fab mov

    Meanwell / ELG / SOSEN / Inventronics tsav tsheb

    Kev ua tau zoo (lm / W) ± 5%

    160-170LM / W (5000K, Ra70)

    Lumen tso zis ± 5%

    8 250 lm

    16 500 LM

    24 750 lmx

    33 000 LM

    3 9600 lmx

    Beam Angle

    60 ° / 90 ° / 120 °

    CCT (K)

    3000K/4000K/5000K/5700K

    CRI

    Ra70 (Ra80 rau xaiv)

    Tus nqi IP

    IP65

    PF

    > 0.95

    Dimming

    Tsis-dimming (Default) / 1-10V Dimming / Dali dimming

    Intelligent Control

    Motion Sensor

    Khoom siv

    Die-Cast + PC Lens

    Kev ua haujlwm Tenperature

    -40 ℃ ~ 65 ℃

    Cov av noo

    10% ~ 90%

    Ua kom tiav

    Hmoov Txheej

    Kev tiv thaiv Surge

    4kV kab-kab (10KV, 20KV rau kev xaiv)

    Mounting Option

    Bracket

    Warranty

    5 Xyoo

    Q'TY (PCS) / thawv

    1 Pcs

    1 Pcs

    1 Pcs

    1 Pcs

    1 Pcs

    NW (KG / carton)

    1.3kg ib

    1.3kg ib

    1.9kg ib

    2.3kg ib

    2.3kg ib

    Carton Loj (mm) 268 * 268 * 140 hli 268 * 268 * 140 hli 310 * 310 * 142 hli 347 * 347 * 145 hli 347 * 347 * 145 hli
    GW (KG / thawv)

    1.7kg ib

    1.7kg ib

    2.3kg ib

    2.7kg ib

    2.7k ib

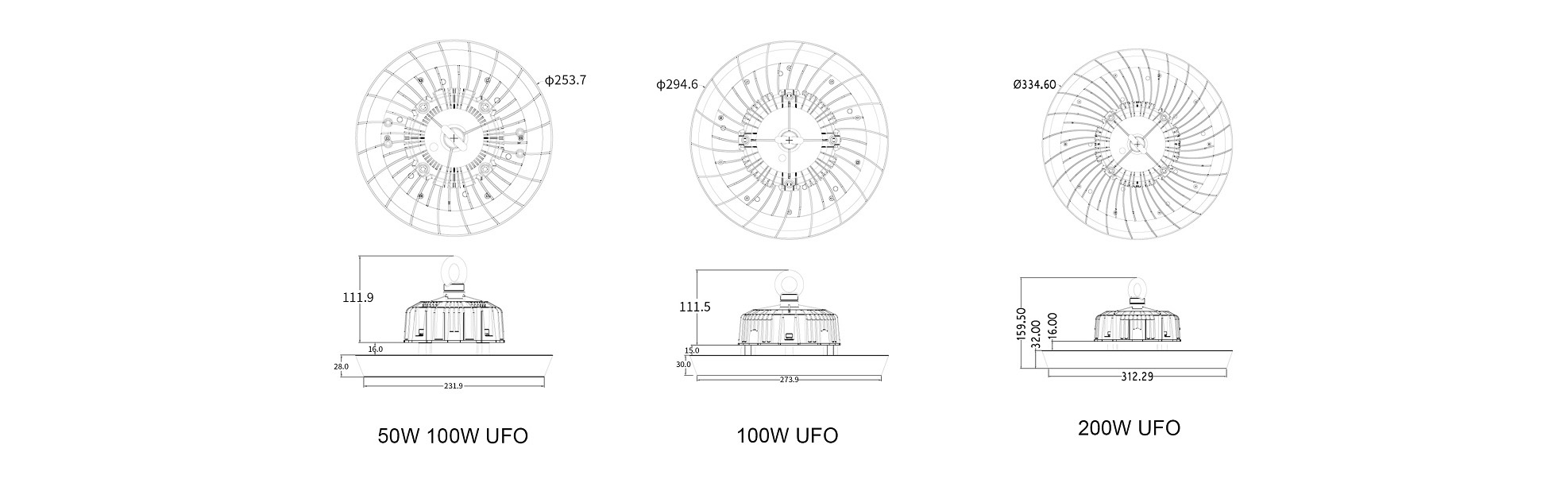

    170lm/w UFO LED High Bay Lub Teeb Khoom Loj

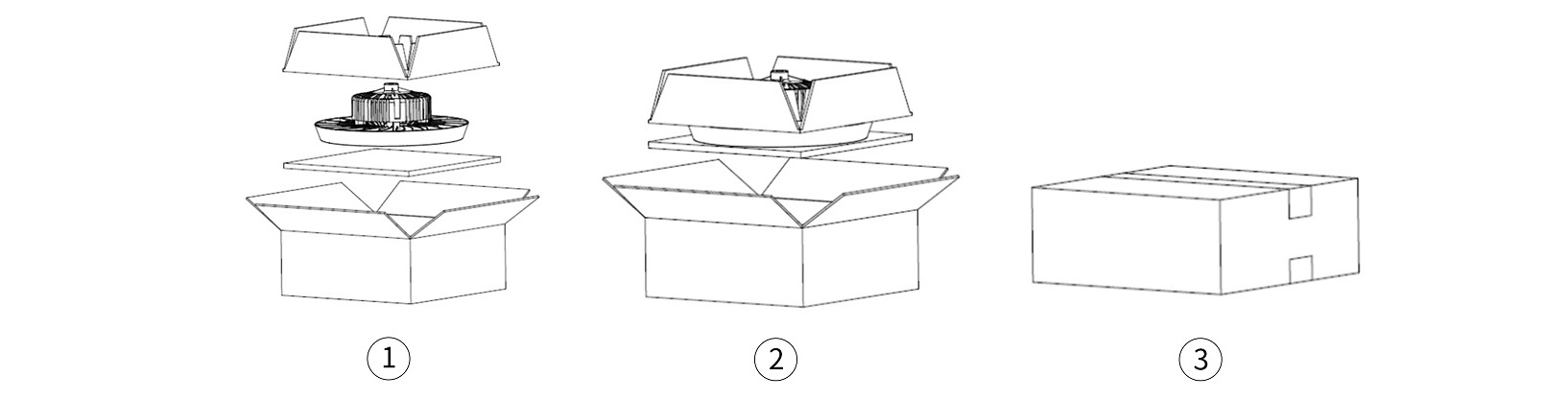

    170lm / w UFO LED High Bay Lub Teeb Ntim

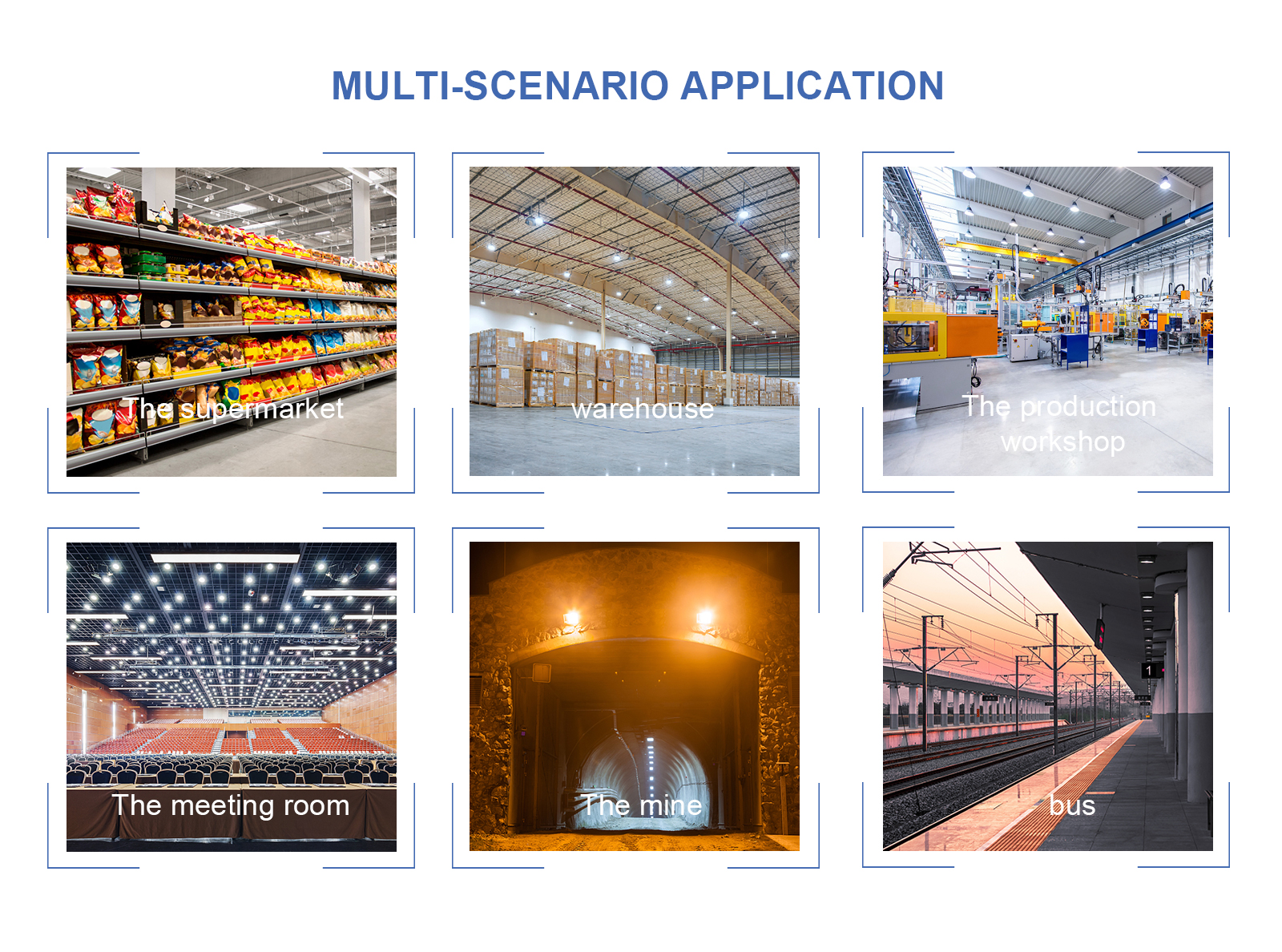

    APPLICATION

    VKS HB3 series high bay coj lub khw teeb txais lub zog siab LED ua lub teeb ci, txais yuav cov hmoov phosphor zoo heev, ua tiav qhov zoo ntawm lub teeb poob qis, lub teeb pom kev zoo, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, xyuas kom nws cov thermal conductivity, lub teeb me me poob. , ntshiab lub teeb xim, tsis muaj ghosting thiab lwm yam ntxwv.Haum rau factories, industrial thiab mining enterprises, roj av, tshuaj rhiav, rhiav, warehouse, txoj kev loj xov tooj, chaw nres tsheb roj, loj supermarkets, exhibition hall, smelting thiab lwm yam flammable thiab tawg qhov chaw rau teeb pom kev zoo los yog dej nyab teeb pom kev zoo.

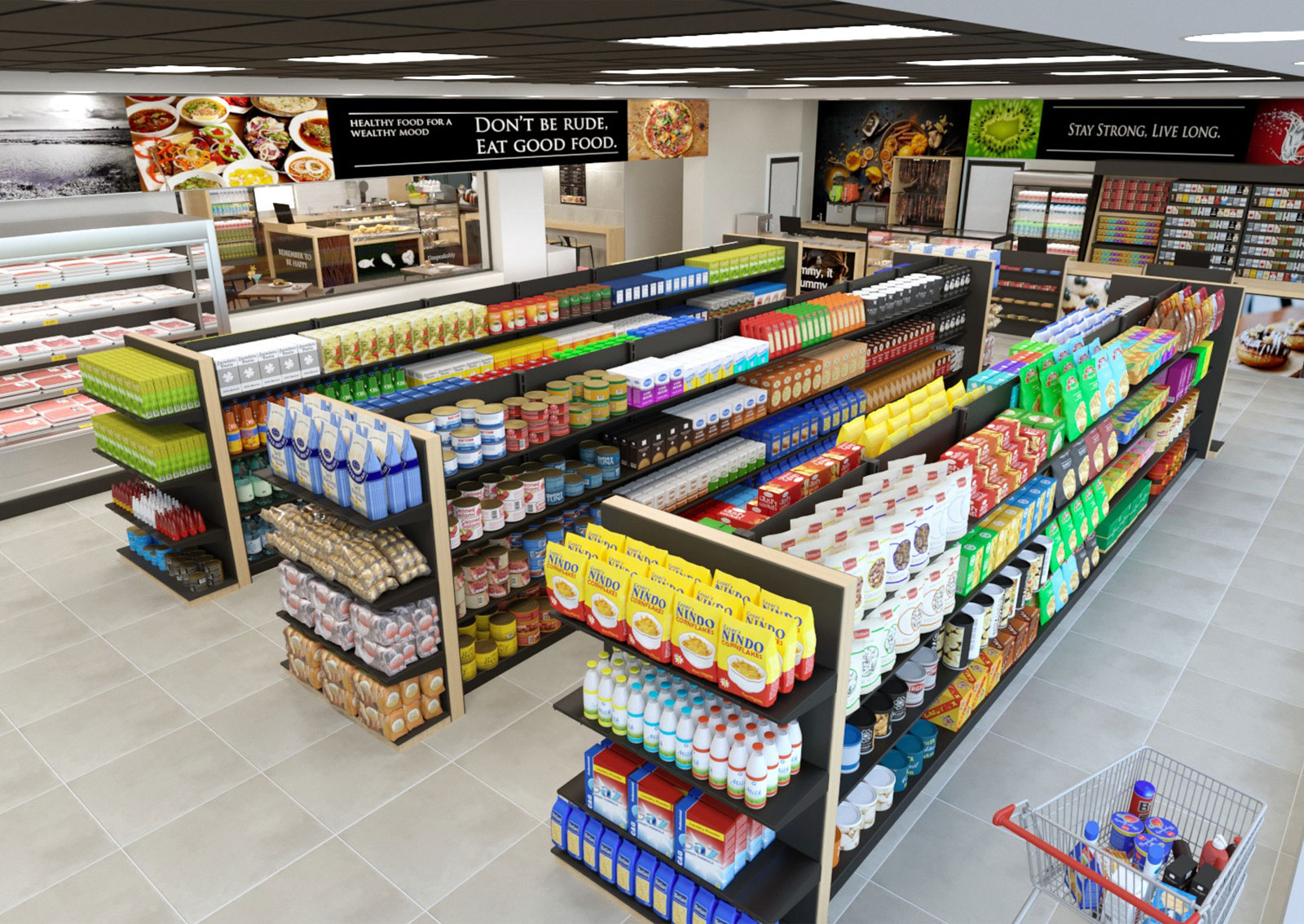

    VKS HB3 series high bay teeb fixtures kub dissipation lub cev nto txheej ua, compact qauv thiab zoo nkauj, zoo xim rendering, muaj peev xwm cia cov xim tiag tiag rendering ntau vivid, muaj ntau yam xim xaiv, muaj peev xwm ua tau raws li qhov xav tau ntawm ntau qhov chaw, yog dav siv. nyob rau hauv factories, warehouses, thiab lwm yam loj supermarket txiv hmab txiv ntoo siab brightness illumination xav tau kev pab, tshwj xeeb tshaj yog nyob rau hauv lub tsev muag khoom teeb pom kev zoo tsim, los qhia cov yam ntxwv ntawm cov khoom, nyiam cov neeg muas zaub thiab beautify lub sab hauv tsev thiab lwm yam hom phiaj.


    Tau txais cov neeg yuav khoom ua tiav yog peb lub tuam txhab lub hom phiaj tsis muaj qhov kawg.Peb yuav ua cov thawj coj zoo heev kom tau txais cov kev daws teeb meem tshiab thiab zoo tshaj plaws, ntsib nrog koj cov kev tshwj xeeb tshwj xeeb thiab muab rau koj nrog kev muag khoom ua ntej, ntawm-muag thiab tom qab-muag cov chaw muab kev pabcuam rau Tuam Tshoj Tuam Tshoj pheej yig wholesale Penel Teeb 60W 200W 300W Sab nraum zoov Waterproof Pendant Surface Spot LED Flood Ceiling Light for Industrial High Bay Lighting Fixture or House Wall, Peb ntseeg hais tias ib pab neeg mob siab rau, kiv puag ncig thiab kev cob qhia zoo yuav tsum muaj peev xwm tsim kom muaj kev lag luam zoo thiab kev sib raug zoo nrog koj sai sai.Thov tiag tiag tsis muaj nqi los tuav peb kom paub meej ntxiv.
    Professional Tuam TshojTuam Tshoj LED Dej nyab lub teeb, Industrial LED Teeb pom kev zoo, Peb muaj ntau tshaj 10 xyoo exported kev thiab peb cov khoom tau exported ntau tshaj 30 lub teb chaws nyob ib ncig ntawm lo lus.Peb ib txwm tuav cov kev pabcuam tenet Client ua ntej, Zoo ua ntej hauv peb lub siab, thiab nruj nrog cov khoom zoo.Zoo siab txais tos koj tuaj xyuas!
