LED Linear High Bay Lub teeb

Lus piav qhia luv luv:

High bay teeb yog streamlined qauv, tiv thaiv plua plav tsub zuj zuj, zoo xyuas kom meej tias lub teeb thiab lanterns tshav kub dissipation, ncua lub neej kev pab cuam ntawm lub teeb thiab teeb.
High bay LED lub teeb yog High-density die-casting aluminium heat sink nrog anti-corrosion hmoov txheej kho ntawm qhov chaw.
High bay teeb LED ua ke nrog patented technology ntawm high thermal conductivity media daim ntawv thov, lub teeb yog me me thiab lub teeb nyob rau hauv hnyav, yooj yim rau thauj, nruab thiab tswj.

Lawv siab bay yog UFO saucer-zoo li tus tsim, zoo nkauj tsos, khoom qauv, kom tau raws li cov kev xav tau ntawm ntau yam ib puag ncig qhov siab thiab installation.
Optical theem nrab lub teeb faib los txhim kho illumination uniformity thiab kev nplij siab hauv thaj chaw teeb pom kev zoo.
Kev tiv thaiv siab (IP65) kev ntsuas rau ntau qhov chaw ua haujlwm hnyav.

Lub zog:100W / 150W / 200W

Input voltage:100V-240VAC 50/60HZ

Lumen:13000LM-26000LM

Beam Angle:60 ° / 90 ° / 120 °

IP Tus Nqi:IP 65

Xa email rau peb

NTAUB NTAWV

SPECIFICATON

APPLICATION

Download tau

Khoom cim npe

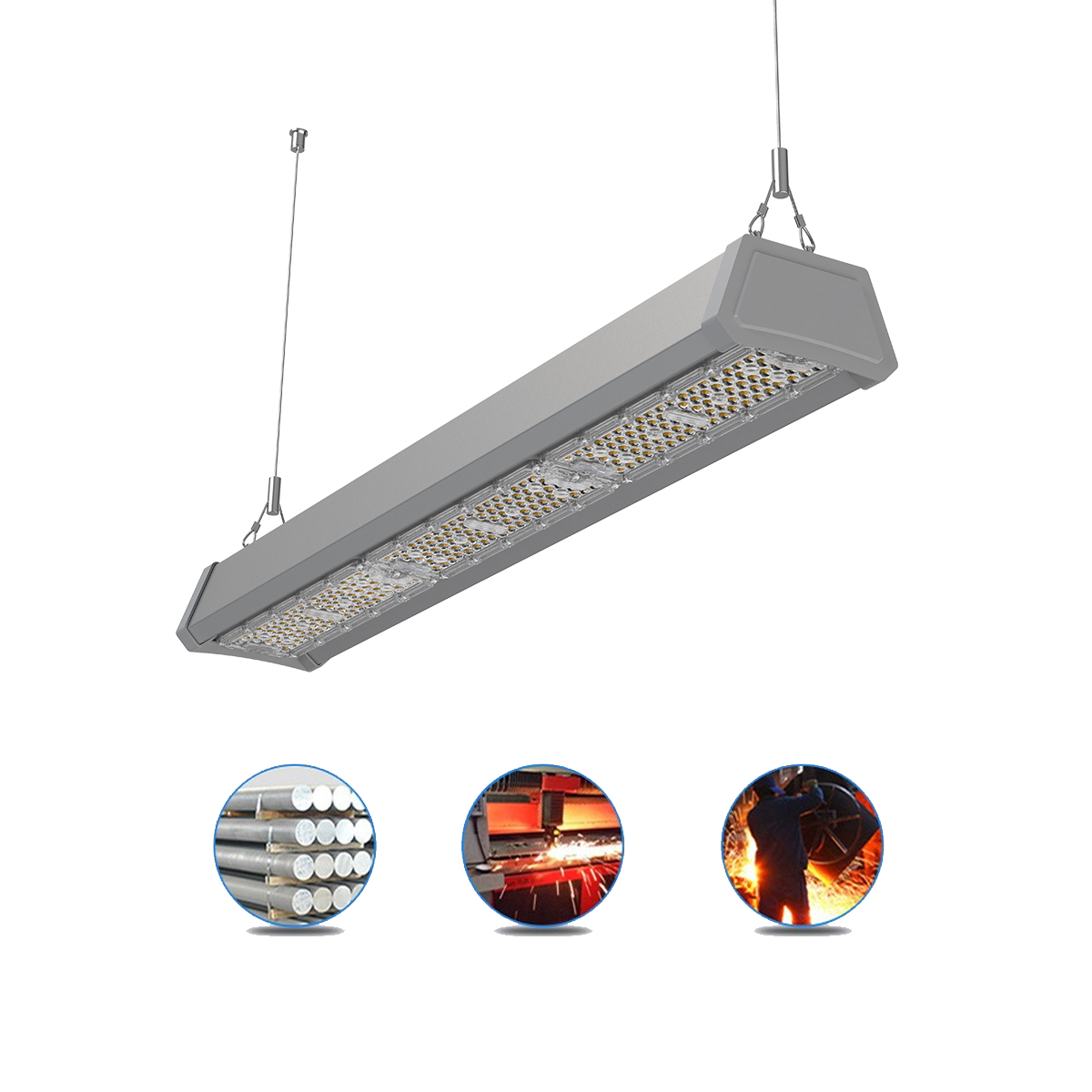

Lub teeb Linear yog tsim los nrog Txhuas Txhuas Vaj Tsev
thiab txhawb nqa ntau yam ntawm Mounting txoj kev xws li hlua,
Qab nthab thiab Bracket Mounting kom tau raws li ntau yam tshwj xeeb installation
Kev xav tau.

Lub teeb Linear yog tsim los nrog txhuas vaj tse tag nrho thiab txhawb nqa ntau yam ntawm Mounting Methods xws li hlua, Qab nthab thiab Bracket Mounting kom tau raws li ntau yam kev tsim tshwj xeeb.

Tag nrho cov khoom siv aluminium alloy, ntsev tsuag kuj, corrosion kuj, lub neej ntev

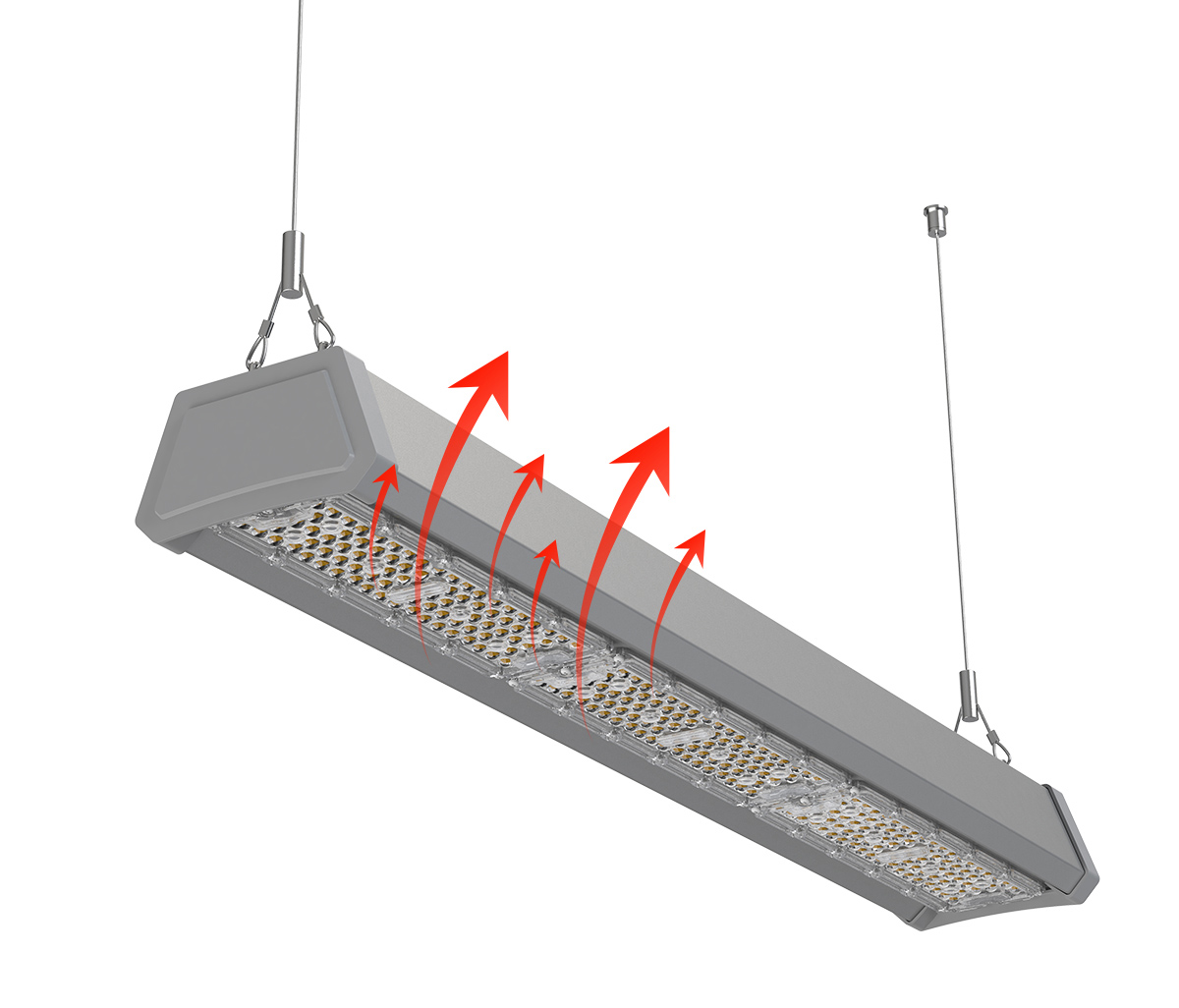

Linear coj high bay lub teeb yog ua los ntawm cov khoom zoo aluminium alloy, nrog zoo thermal conductivity thiab zoo cua sov dissipation.Cov khoom siv txhuas alloy muaj ib txheej ntawm tuab txhuas oxide nyob rau saum npoo, nrog zoo tsis kam rau oxidation thiab corrosion;tib lub sij hawm linear high bay muaj cov yas zoo, tuaj yeem ua tau yooj yim rau hauv ntau yam profiles, yooj yim rau kev nqa cov khoom, tab sis kuj tuaj yeem paub sai sai cov khoom tsim rau hauv lub cev khoom.Tom qab 48 teev ntawm kev ntsuas ntsev tsuag, qhov saum npoo ntawm high bay linear khoom yog zoo thiab corrosion kuj zoo heev.

coj-linear-high-bay-lub teeb-kub-dissipation

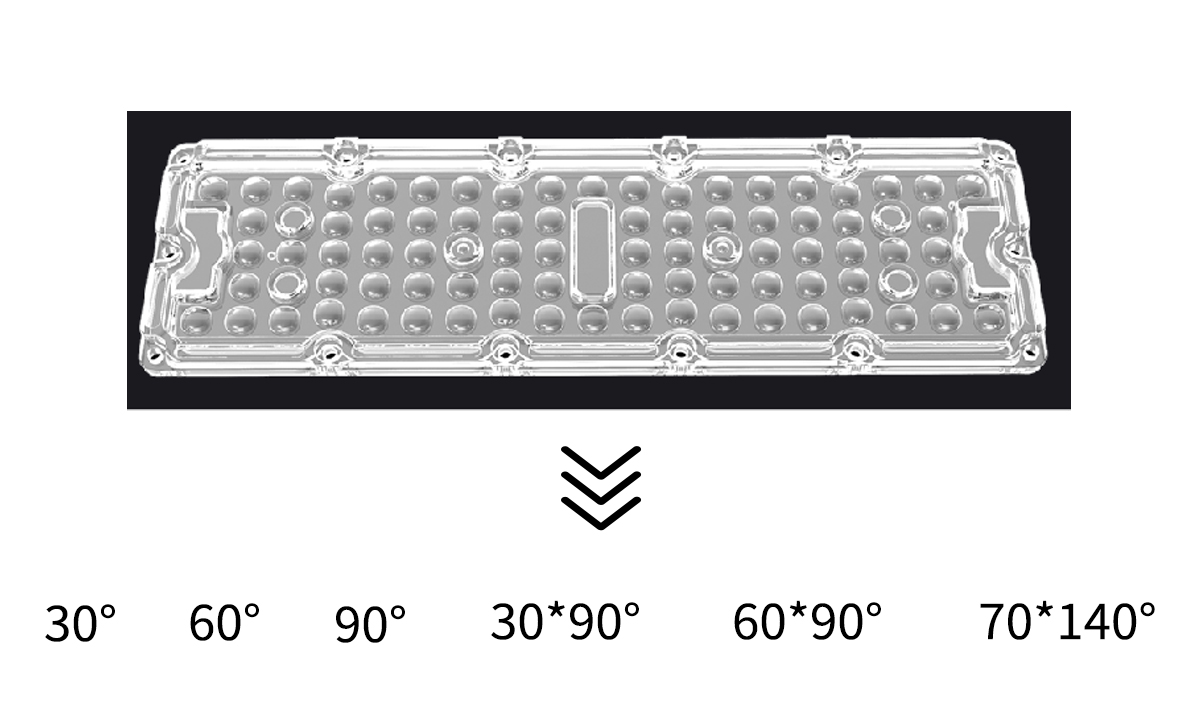

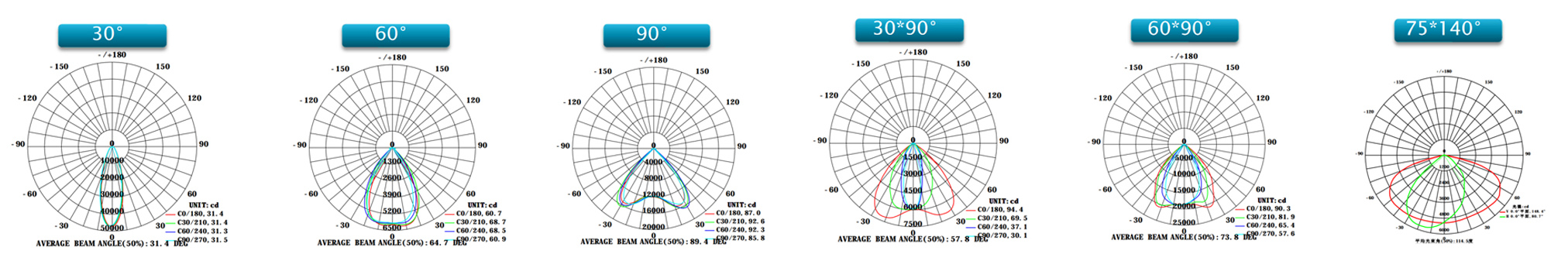

Ntau hom kev kho qhov muag xaiv los ntawm, haum rau ntau qhov chaw ntawm linear sab nrauv LED teeb pom kev zoo.
30 ° / 60 ° / 90 ° / 30 * 90 ° / 60 * 90 ° / 75 * 140 °
High bay linear coj muaj tag nrho lub zog tsim los ntawm 50W txog 400W, qhov siab qhov siab npog 3 txog 30 meters, paub txog high bay linear coj teeb daim ntawv thov hauv thaj chaw xws li superstores thiab kev ua kis las arenas.

Diversified configuration xaiv kom tau raws li cov kev xav tau ntawm txawv coj linear high bay fixtures khoom.
1. Txoj kev txhim kho: kev txhawb nqa dai hlua, qab nthab, bracket installation.
2. Kev ntsuas dej tsis zoo: IP44, IP65.
3. Khoom siv fais fab: built-in domestic fais fab mov, lwm hom fais fab mov, DOB fais fab mov kev pab cuam
4. Muaj ntau yam khoom siv hluav taws xob sib txuas, sib txuam tag nrho cov khoom siv hluav taws xob loj hauv kev lag luam.

SPECIFICATON

Module No.	VKS-HB50W-J	VKS-HB100W-J	VKS-HB150W-J	VKS-HB200W-J
Hwj chim	50 W	100 W	150 W	200 W
Khoom Loj	L256 * W132 * 193mm	L495 * W132 * 193mm	L734 * W132 * 193mm	L973 * W132 * 193mm
Beam Angle	30 ° / 60 ° / 90 ° / 30 * 90 ° / 60 * 90 ° / 75 * 140 °
Hom Tsav Tsheb	Meanwell
LED Chip	6 v3030
LED Chip QTY	8 S10 P*1	8 S10 P*2	8 S10 P*3	8 S10 P*4
Lub teeb Efficiency	140-150Lm / W
Kev ntsuas IP	IP44 / IK06
LED High Bay Linear Lub Teeb High-power Model
Module No.	PS-LP 200 W	PS-LP300W	PS-LP400W
Hwj chim	200 W	300 W	400 W
Khoom Loj	L528 * W276 * 208mm	L528 * W420 * 208mm	L528 * W564 * 208mm
Beam Angle	30 ° / 60 ° / 90 ° / 30 * 90 ° / 60 * 90 ° / 75 * 140 °
Hom Tsav Tsheb	Meanwell
LED Chip	6 v3030
LED Chip QTY	8 S10 P*4	8 S10 P*6	8 S10 P*8
Lub teeb Efficiency	140-150Lm / W
Kev ntsuas IP	IP44 / IK06

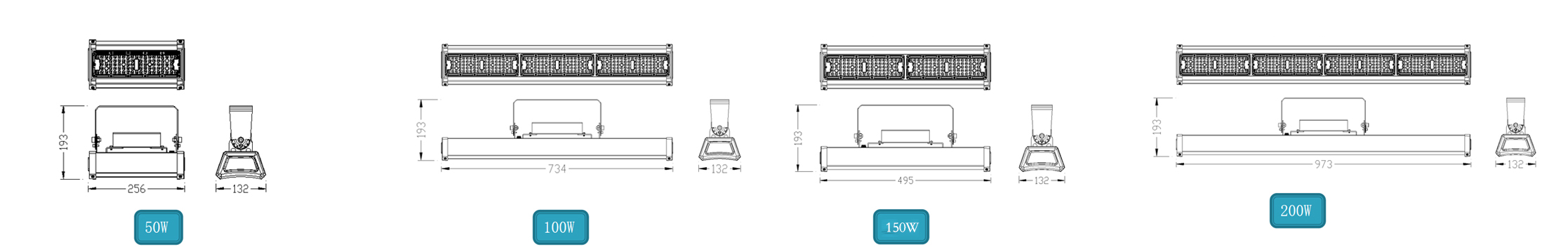

Sab nrauv Hom Fais Fab Cov Qauv Khoom Loj

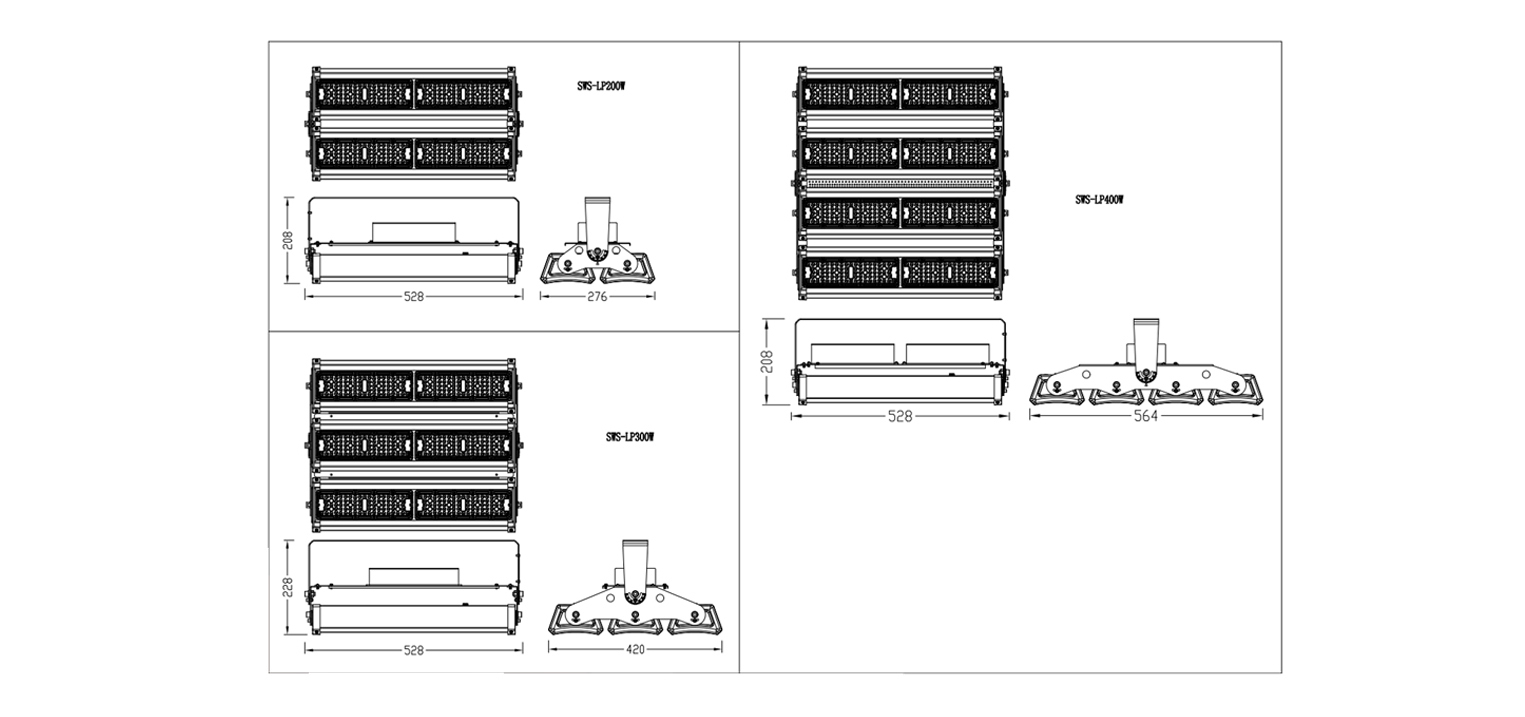

Multi-spelling High-power Models Khoom Loj

coj-linear-high-bay-lub teeb-multipower-size2

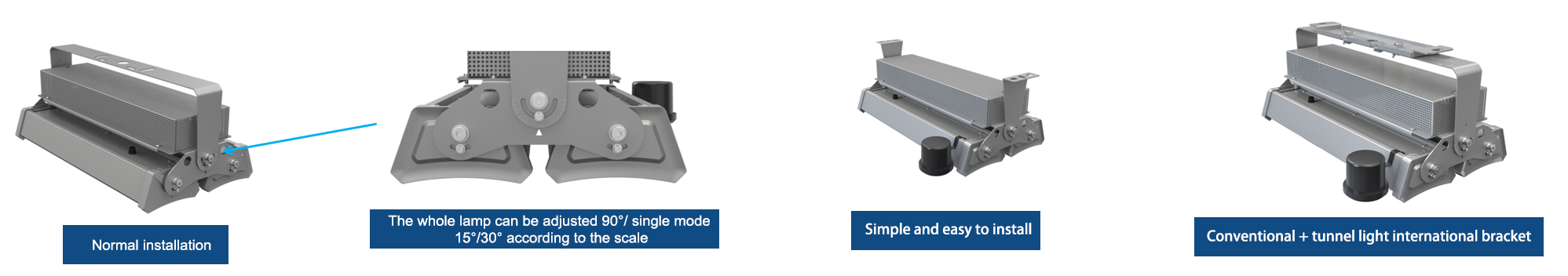

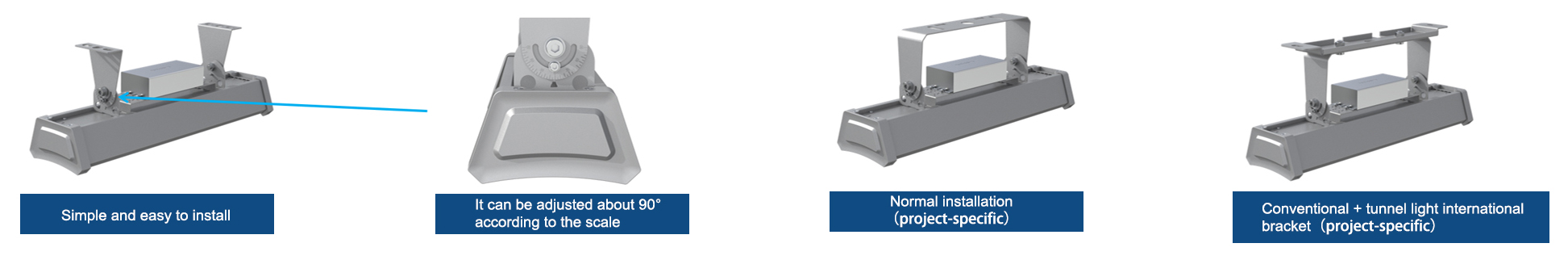

Linear LED High Bay Installation

Multi-spelling High-power Models Khoom Series Installation

led-linear-high-bay-light-installation-multipower2

APPLICATION

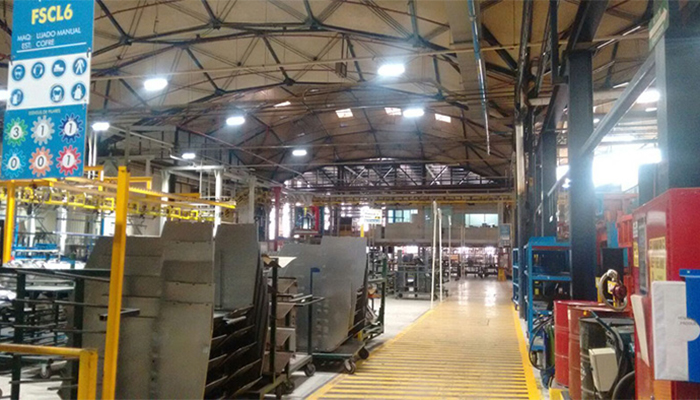

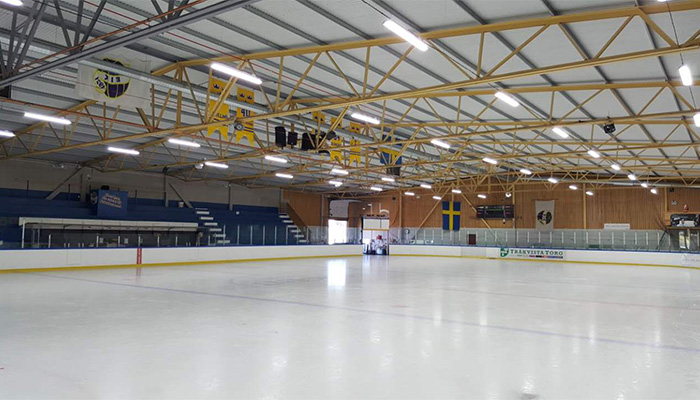

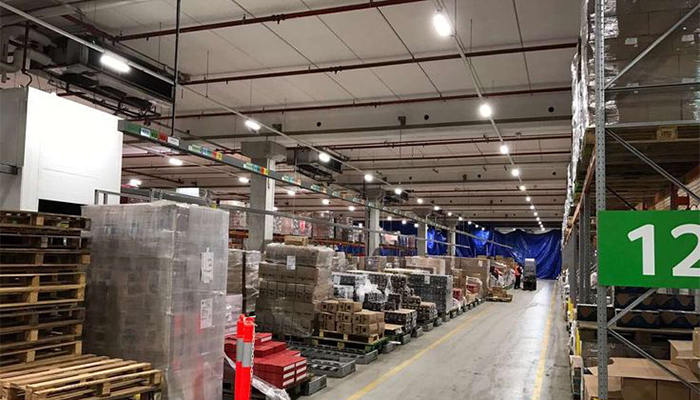

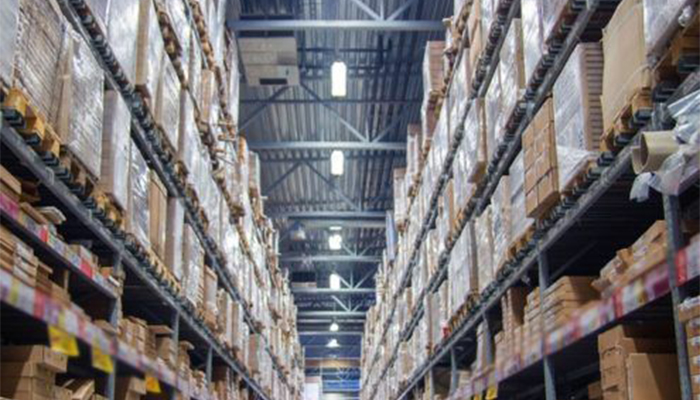

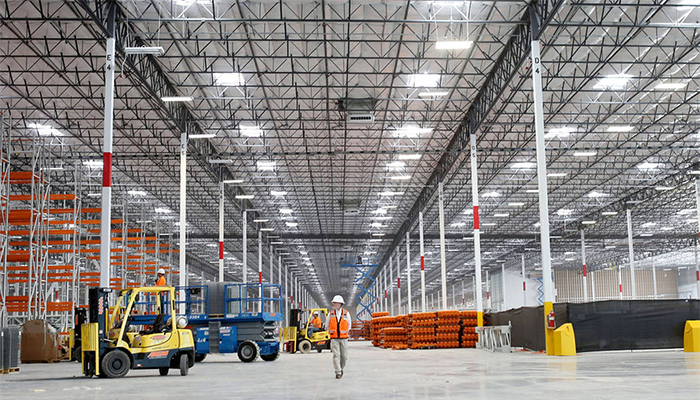

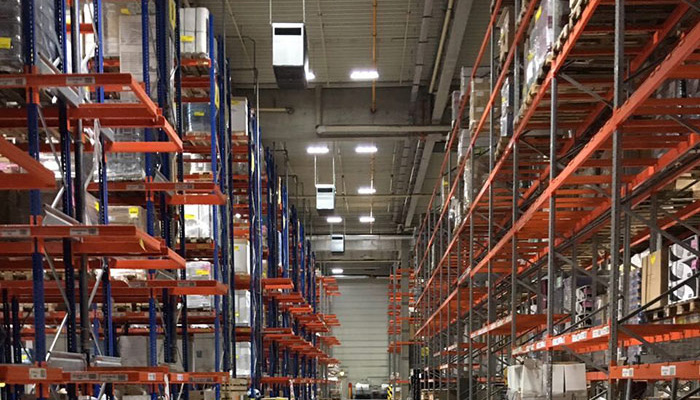

Linear high bay LED yog dav siv hauv Factory, Rhiav, Warehouse, Logistics Center Exhibition Hall, Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, thiab lwm yam. Tsis tas li ntawd tsim nyog rau kev siv teeb pom kev hauv tsev loj, warehouses, rhawv, cov nroj tsuag, kev ua si. chaw ntau pob thiab lwm qhov chaw.
