LED High Bay UFO Teeb

Lus piav qhia luv luv:

LED high bay UFO teeb yog luminum fins siab thermal conductivity kub dab dej.LED UFO siab bay lub teeb muaj txhuas tuag-casting plhaub integrated Meanwell tsav fais fab mov, siab thermal conductivity txhuas substrate;UFO high bay teeb kis tau tus mob PC dav hlau sealing npog;3030 3030 nti ntshuam high-brightness, nrog cov hlua khi thiab hlua khi ob qhov kev tuav pov hwm installation.


  • Lub zog:100W / 150W / 200W
  • Input voltage:100V-240VAC 50/60HZ
  • Lumen:13000LM-26000LM
  • Beam Angle:60 ° / 90 ° ± 10%
  • IP Tus Nqi:IP 65
  • NTAUB NTAWV

    SPECIFICATON

    APPLICATION

    Download tau

    Khoom cim npe

    Lub PC Lens Nrog Ntau tshaj 90% Lub teeb kis tau tus mob
    Muaj lub teeb zoo nkauj yam tsis muaj qhov tshwm sim
    ntawm Secondary Light Spots Tom qab Irradiation.

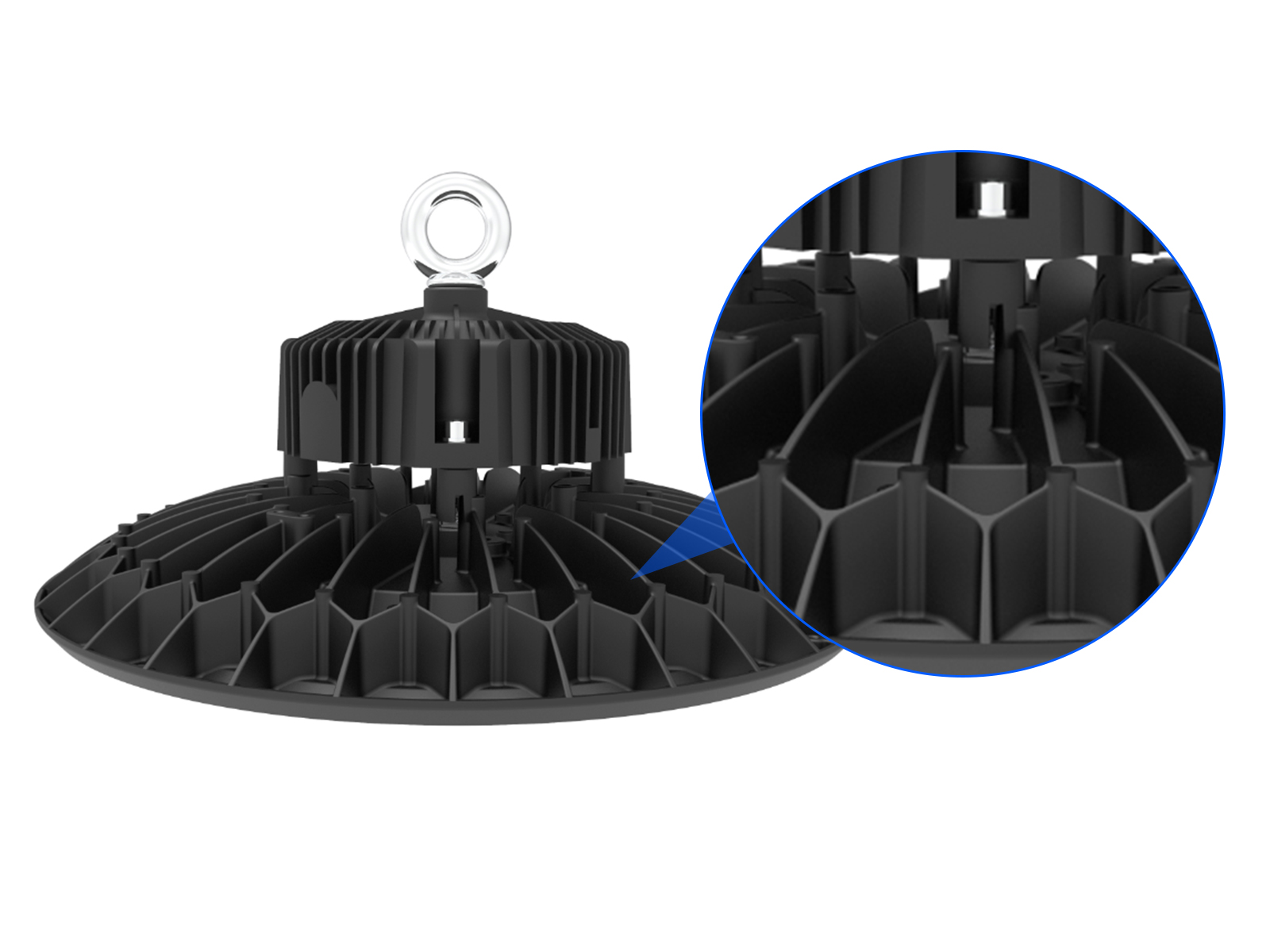

    LED UFOHigh Bay Bush Lub Plawv Sib Tw Cov Khaub Ncaws Hnav, nrog cov khoom siv hluav taws xob kom txau, nrog cov khoom siv hluav taws xob kom qhuav rau ntawm cov chaw ua haujlwm, sib sau ua hmoov av ;hmoov txheej tom qab kub kub ci leveling curing, rau hauv cov nyhuv ntawm cov txheej txheej sib txawv;Lub siab bay UFO teeb 'kev thov Vajtswv hauv kev siv lub zog, adhesion, corrosion resistance, aging resistance thiab lwm yam zoo dua li cov txheej txheem pleev xim.

    high bay ufo teeb

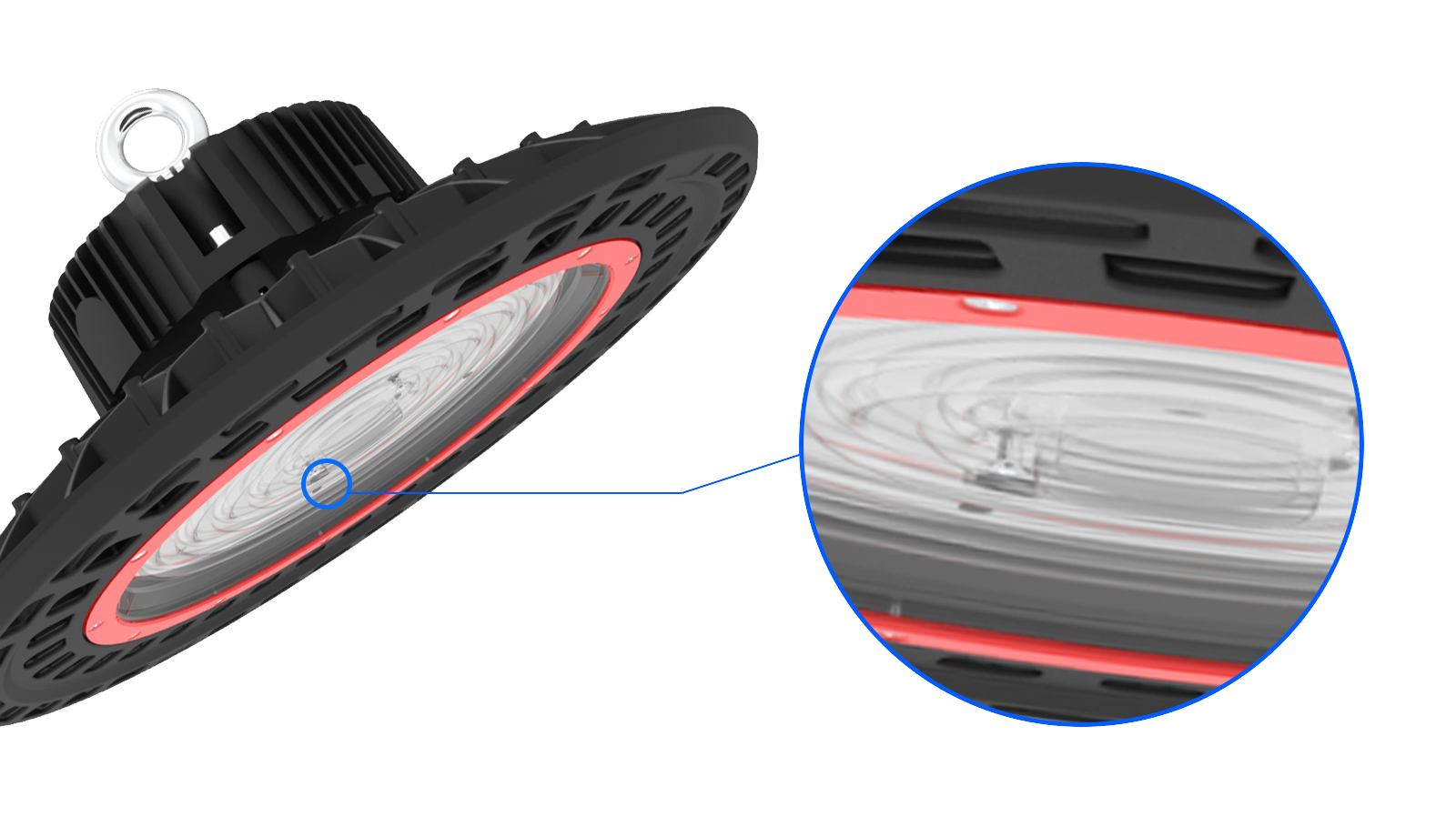

    UFO siab bay muaj ntau tshaj 90% lub teeb kis tau tus mob PC lens, kub tsis kam melting point ntawm 135 °, tag nrho cov kev xav txog kev tsim, tsim ntawm lub siab bay UFO lens nyob rau hauv pem hauv ntej nkag mus rau lub teeb sib sau ua ke, thaum lub tapered nto thiab tuaj yeem sau tag nrho. lub teeb los ntawm sab thiab xav txog tawm, thaum ob hom teeb sib tshooj tom qab siv, koj tuaj yeem tau txais lub teeb pom kev zoo meej.Lub kaum sab xis dav dav <60 °, tuaj yeem siv rau lub kaum sab xis me me thiab cov teeb ci saum toj no, tom qab irradiation yam tsis muaj qhov chaw teeb pom kev zoo, lub teeb pom kev zoo nkauj heev.

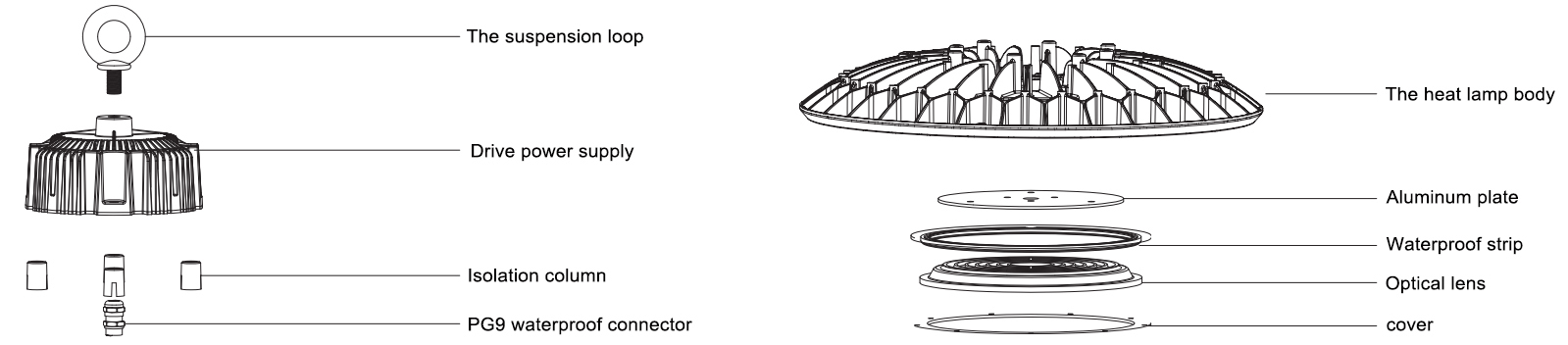

    UFO High Bay LED Cov Qauv Txheej Txheem Txheej Txheem

    SPECIFICATON

    Qauv VKS-HB100W-B VKS-HB150W-B VKS-HB200W-B
    Lub zog nkag 100 W 150 W 200 W
    Khoom Loj (mm) 280 * 280 * 164.8 hli 340 * 340 * 169 hli 400 * 400 * 185.3 hli
    Input voltage AC90-305V 50/60HZ
    LED Hom Lumileds (Philips) SMD 3030
    Fais fab mov Meanwell/SOSEN/Inventronics tsav tsheb
    Kev ua tau zoo (lm / W) ± 5% 130/140 lm/w
    Lumen tso zis ± 5% 13 000 LM 19500 LOJ 26 000 LM
    Beam Angle 60 ° / 90 ° ± 10%
    CCT (K) 4000K/5000K/5700K
    CRI Ra 70
    Tus nqi IP IP65
    PF ≥0.9
    SDCM ≤ 7
    IK Qib ib 07
    THD <20%
    Tsis tshua muaj Harmonics IEC 61000-3-2 Chav Kawm C
    Pib Sijhawm ≤0.5S (230V)
    Flicker <8%
    Warranty 5 xyoo
    QTY (PCS) / thawv 1 Pcs 1 Pcs 1 Pcs
    NW (KG / carton) 2.7 3.7 5
    GW (KG / thawv) 3.2 4.4 6
    Ntim Loj 330 * 330 * 185 hli 390 * 390 * 190 hli 445 * 445 * 195mm

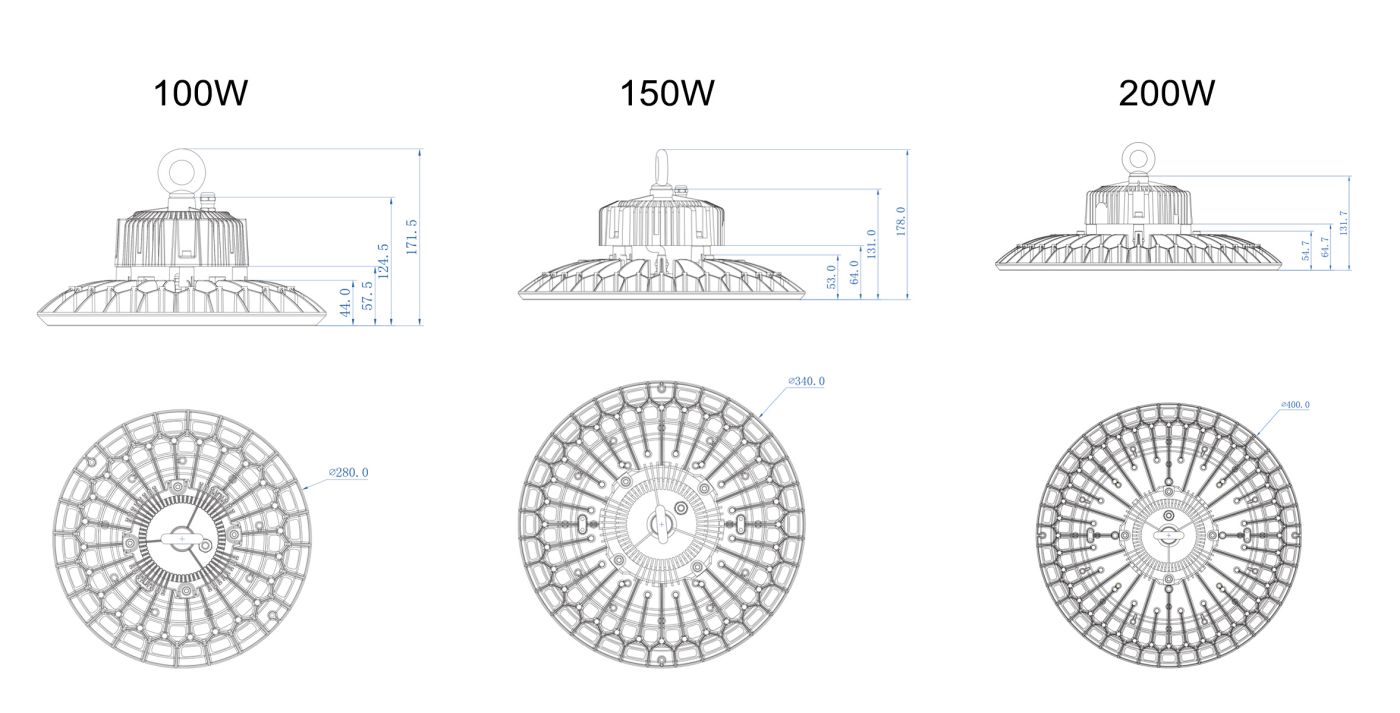

    LED High Bay UFO Lub Teeb Khoom Loj

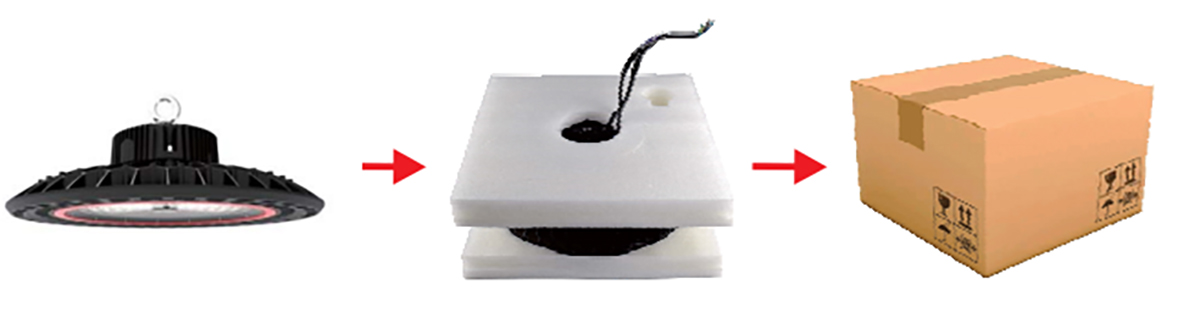

    High Bay LED UFO Teeb Ntim

    APPLICATION

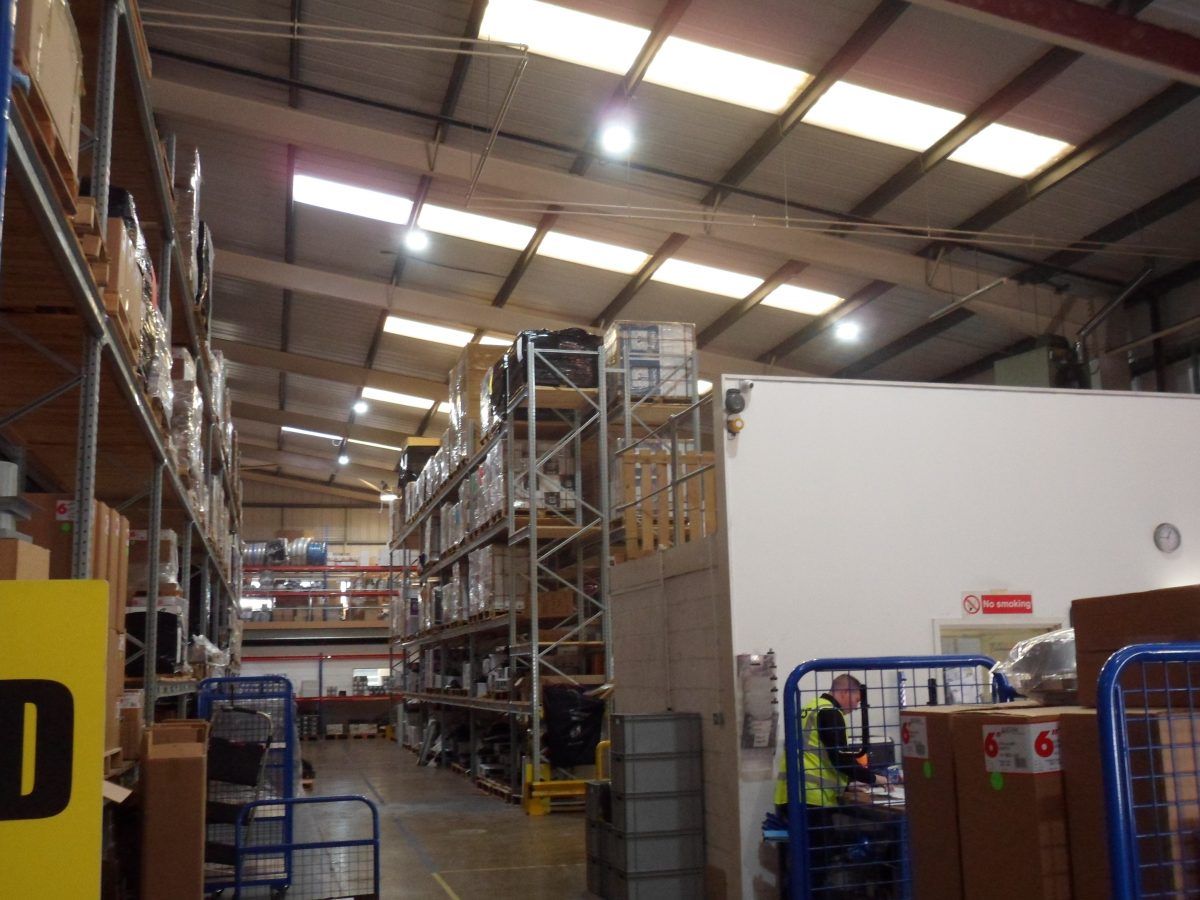

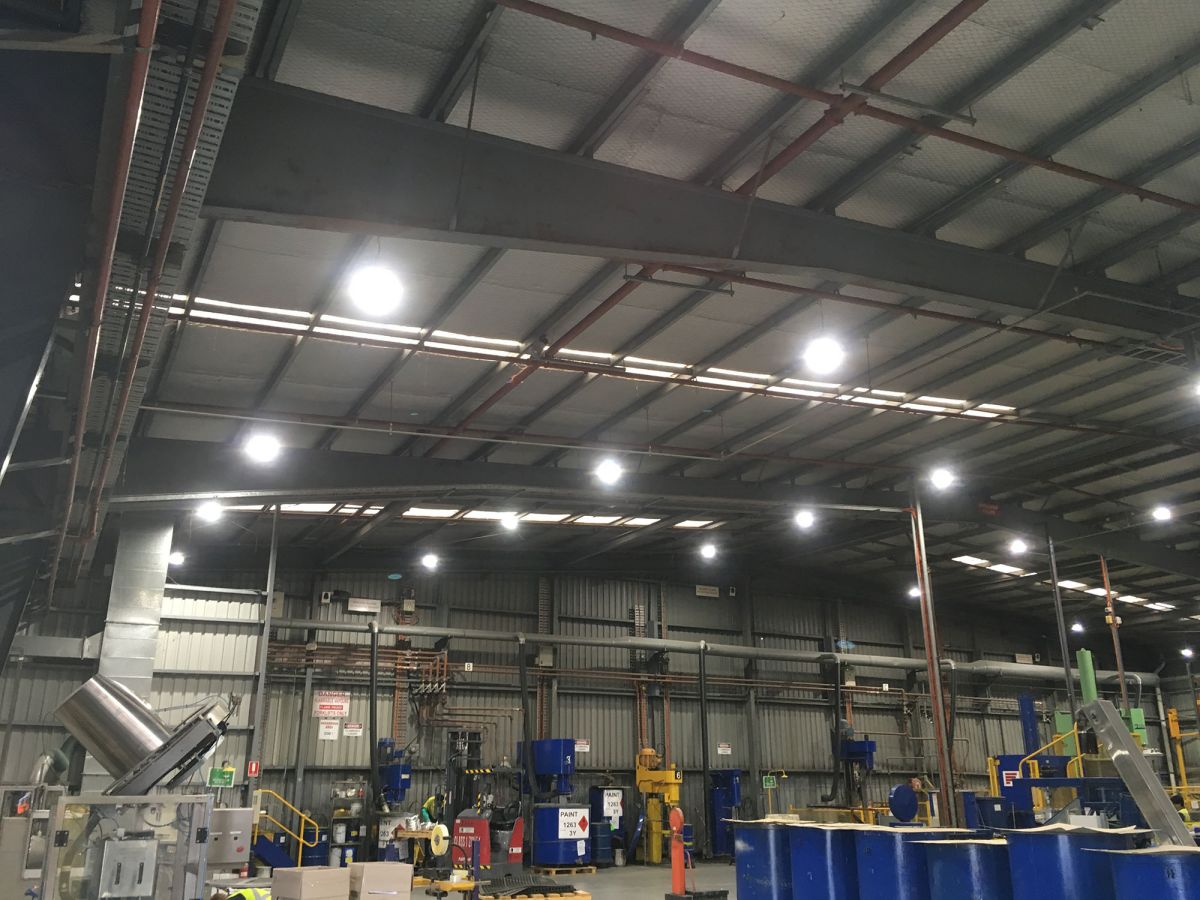

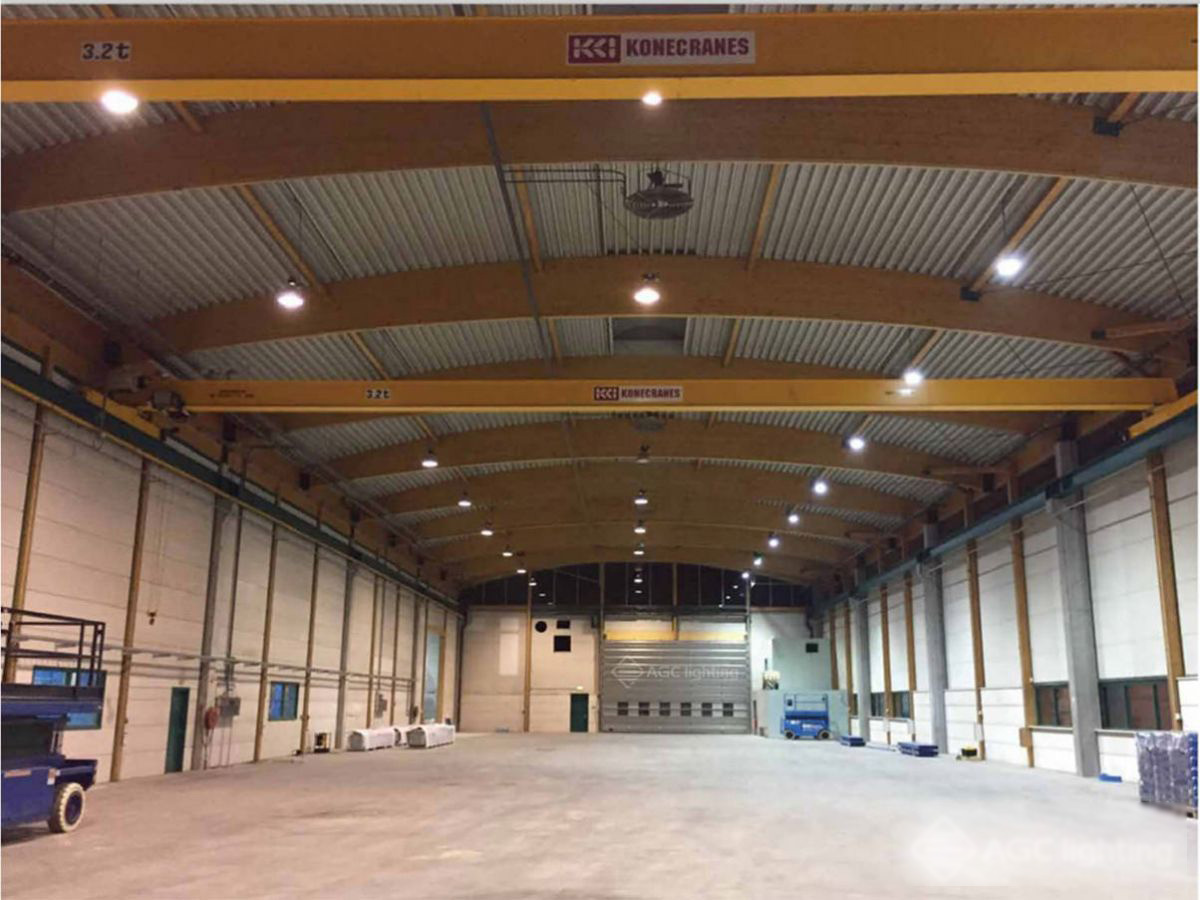

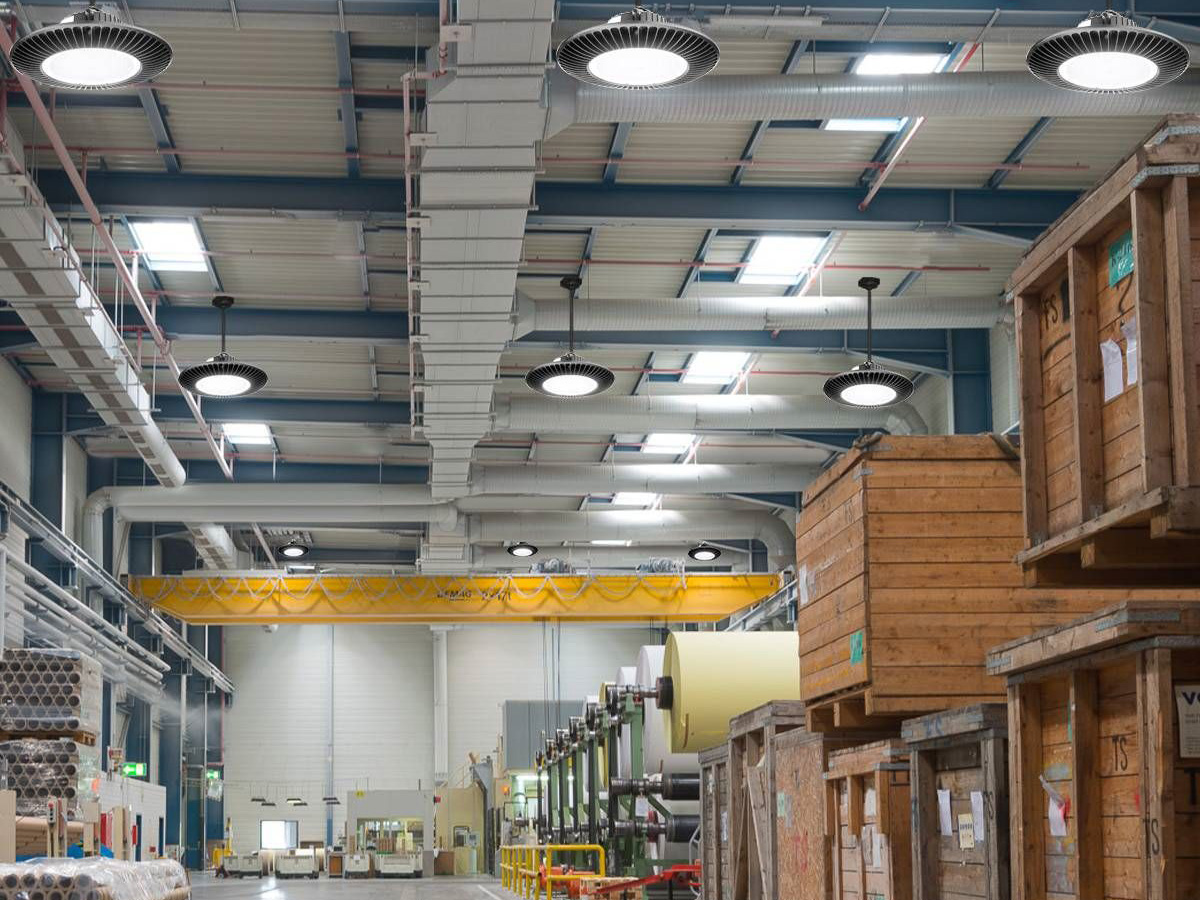

    UFO LED high bay teeb 100W 150W thiab 200W yog dav siv nyob rau hauv factories, warehouses, supermarkets, txiv hmab txiv ntoo khw thiab lwm yam loj qhov chaw uas xav tau high brightness teeb pom kev zoo.UFO LED siab bay tuaj yeem ncaj qha hloov cov tsoos E40 teeb lub taub hau interface teeb, yooj yim installation thiab txij nkawm.UFO high bay teeb pom kev zoo tuaj yeem hloov pauv cov tsoos E40 interface teeb 400 watts, kom ncav cuag lub zog txuag hluav taws xob.
