LED UFO High Bay Teeb

Lus piav qhia luv luv:

High bay teeb yog streamlined qauv, tiv thaiv plua plav tsub zuj zuj, zoo xyuas kom meej tias lub teeb thiab lanterns tshav kub dissipation, ncua lub neej kev pab cuam ntawm lub teeb thiab teeb.
High bay LED lub teeb yog High-density die-casting aluminium heat sink nrog anti-corrosion hmoov txheej kho ntawm qhov chaw.
High bay teeb LED ua ke nrog patented technology ntawm high thermal conductivity media daim ntawv thov, lub teeb yog me me thiab lub teeb nyob rau hauv hnyav, yooj yim rau thauj, nruab thiab tswj.

Lawv siab bay yog UFO saucer-zoo li tus tsim, zoo nkauj tsos, khoom qauv, kom tau raws li cov kev xav tau ntawm ntau yam ib puag ncig qhov siab thiab installation.
Optical theem nrab lub teeb faib los txhim kho illumination uniformity thiab kev nplij siab hauv thaj chaw teeb pom kev zoo.
Kev tiv thaiv siab (IP65) kev ntsuas rau ntau qhov chaw ua haujlwm hnyav.

Lub zog:100W / 150W / 200W

Input voltage:100V-240VAC 50/60HZ

Lumen:13000LM-26000LM

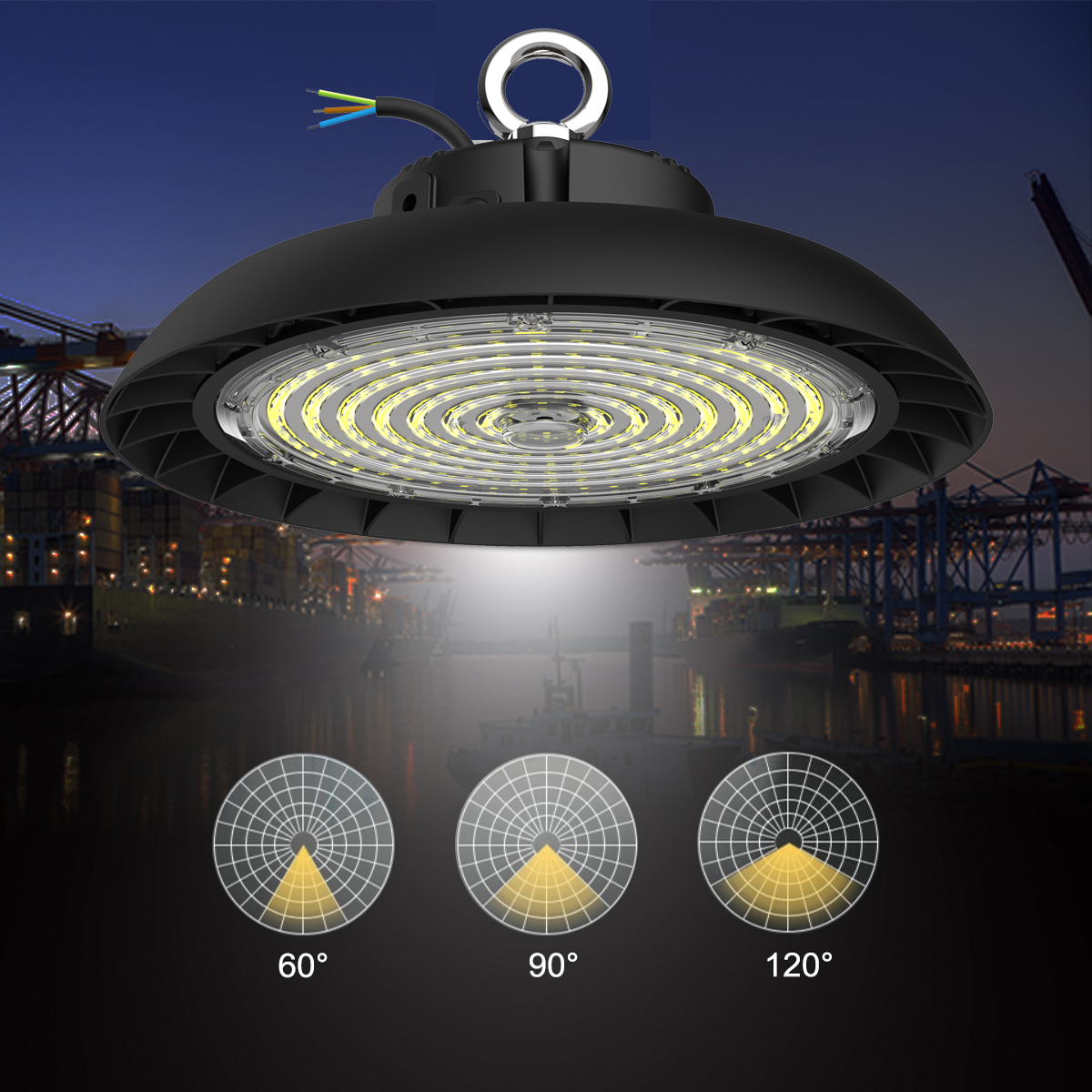

Beam Angle:60 ° / 90 ° / 120 °

IP Tus Nqi:IP 65

Xa email rau peb

NTAUB NTAWV

SPECIFICATON

APPLICATION

Download tau

Khoom cim npe

UFO Disc Shape Design, Ua ke nrog Patented
High Thermal Conductivity Media Application, Ua rau
Luminaire Me me thiab lub teeb, yooj yim rau kev thauj mus los, nruab thiab tswj.

LED round high bay lub teeb txais lub teeb pom kev zoo ntawm lub teeb pom kev, tsis muaj qhov cuam tshuam ntxiv lub teeb faib, tus nqi tsheb thauj mus los kuj qis dua.UFO high bay teeb muaj cov xim zoo, qhov kev nthuav qhia ntawm cov xim tiag tiag yog ntau dua.Ntau lub teeb xim tuaj yeem raug xaiv kom ua tau raws li qhov xav tau ntawm qhov chaw sib txawv, tshem tawm kev nyuaj siab los ntawm qhov kub siab lossis qis xim ntawm cov teeb ci thiab teeb ci, ua rau lub zeem muag zoo dua thiab txhim kho kev ua haujlwm ntawm cov neeg ua haujlwm.

Lub LED siab bay muaj teeb pom kev zoo cuam tshuam tiv thaiv fogging vim qhov kub ntawm qhov sib txawv, dej tsis zoo thiab tsis muaj plua plav.High bay led fixture muaj lub neej ntev, me me lub teeb lwj, higy bay coj teeb pom kev zoo tuaj yeem siv dav hauv sab nraum zoov thiab sab hauv tsev ntau yam kev thov hnyav.

SPECIFICATON

Qauv	VKS-HB100W-E	VKS-HB150W-E	VKS-HB200W-E
Lub zog nkag	100 W	150 W	200 W
Khoom Loj (mm)	φ260 × 163 hli	φ300 × 166mm	φ350 × 167mm
Input voltage	AC90-305V 50/60HZ
LED Hom	Lumileds (Philips) SMD 3030
Fais fab mov	Meanwell / ELG / SOSEN / Inventronics tsav tsheb
Kev ua tau zoo (lm / W) ± 5%	130/140 lm/w
Lumen tso zis ± 5%	13 000 LM	19500 LOJ	26 000 LM
Beam Angle	60 ° / 90 ° / 120 °
CCT (K)	4000K/5000K/5700K
CRI	Ra 70
Tus nqi IP	IP65
PF	≥0.9
SDCM	≤ 7
IK Qib	ib 07
THD	<20%
Tsis tshua muaj Harmonics	IEC 61000-3-2 Chav Kawm C
Pib Sijhawm	≤0.5S (230V)
Flicker	<8%
Warranty	5 xyoo

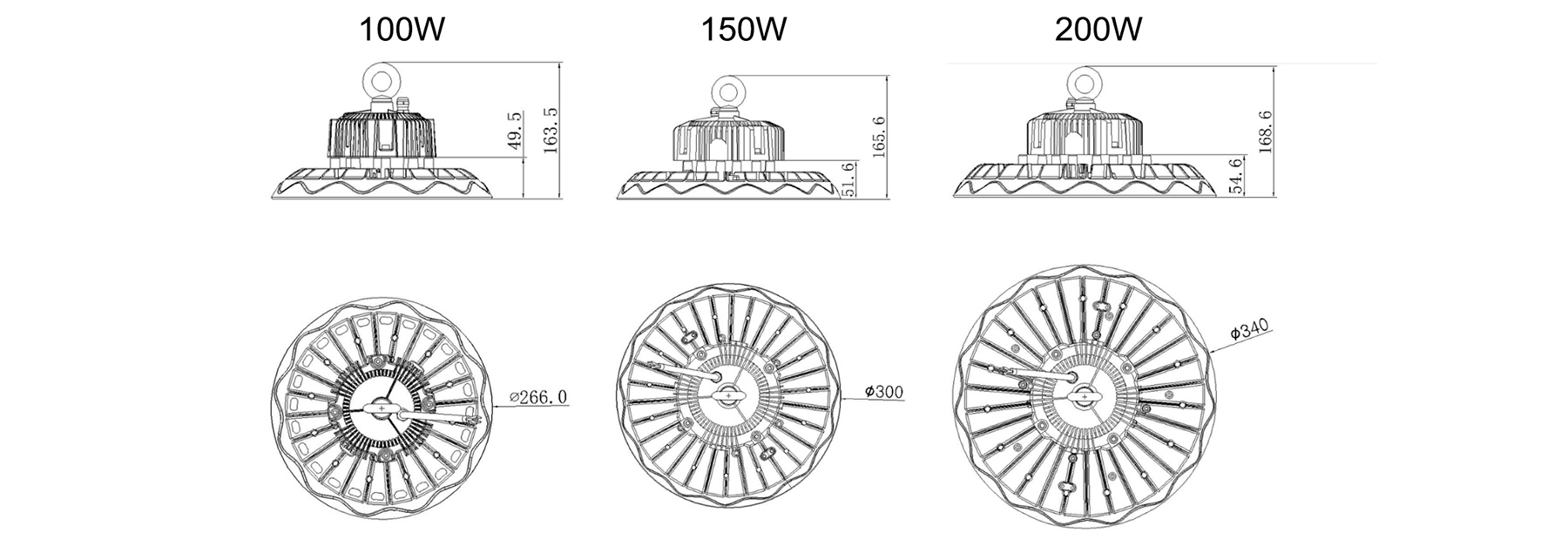

LED UFO High Bay Lub Teeb Khoom Loj

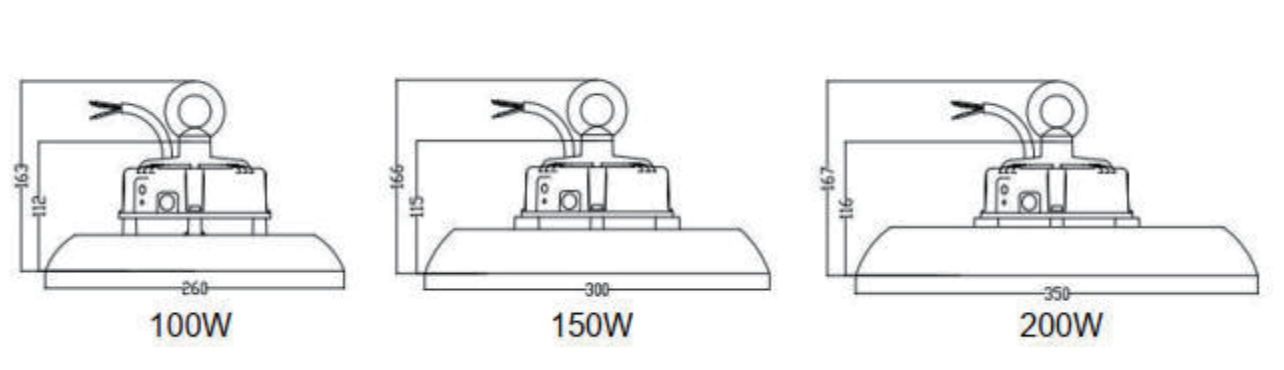

LED UFO High Bay Teeb Kev teeb tsa

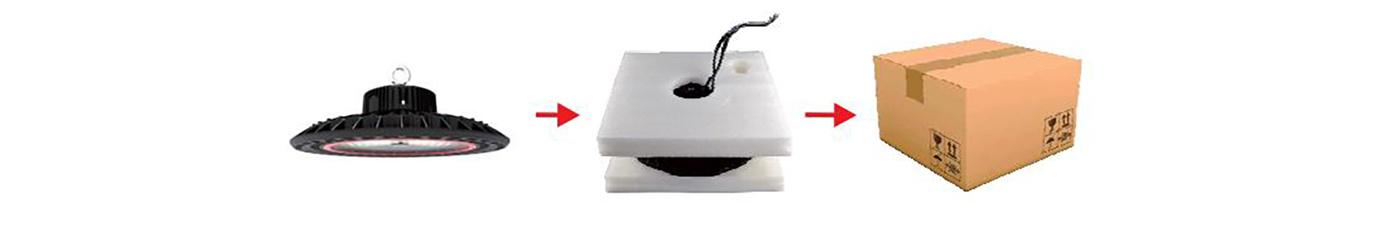

LED UFO High Bay Teeb Pob

APPLICATION

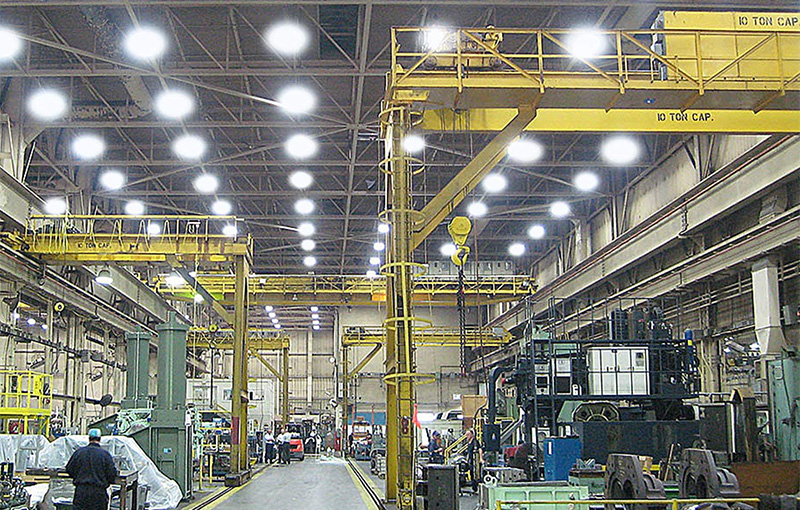

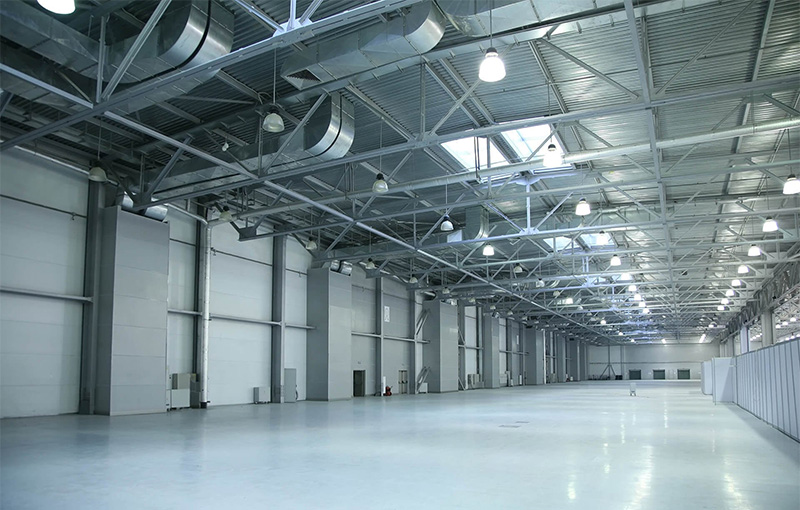

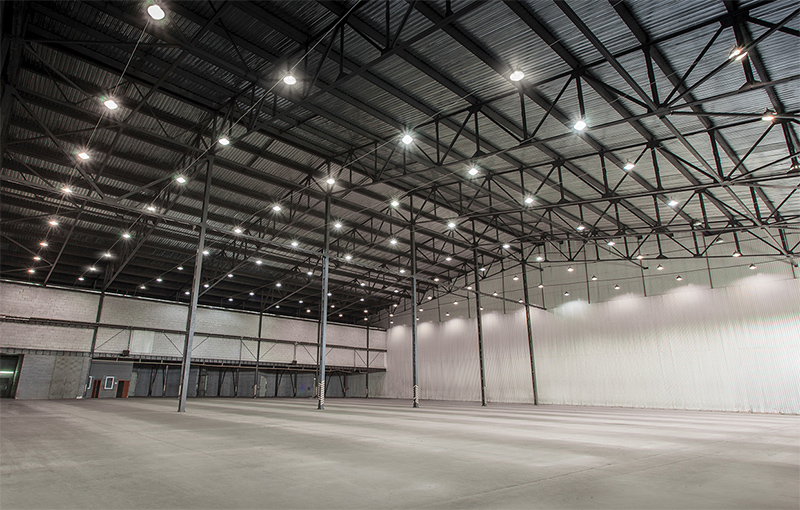

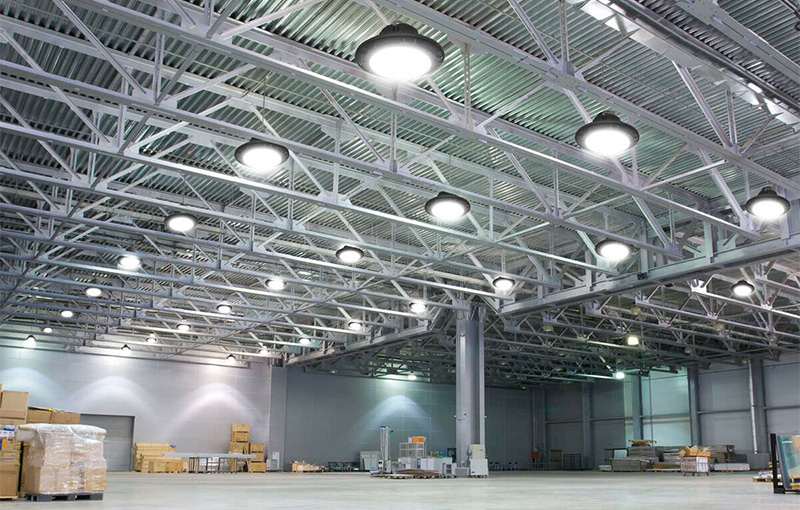

Tsev kawm ntawv auditorium, tsev so, Hoobkas, chaw nres tsheb roj, hauv tsev gymnasium, exhibition hall, tsheb ciav hlau chaw tos tsheb, tsev qiv ntawv, logistics warehouse, txias cia, thiab lwm yam.
