LED Sports Teeb
Modular Tsim, tuaj yeem sib dhos sib txawv

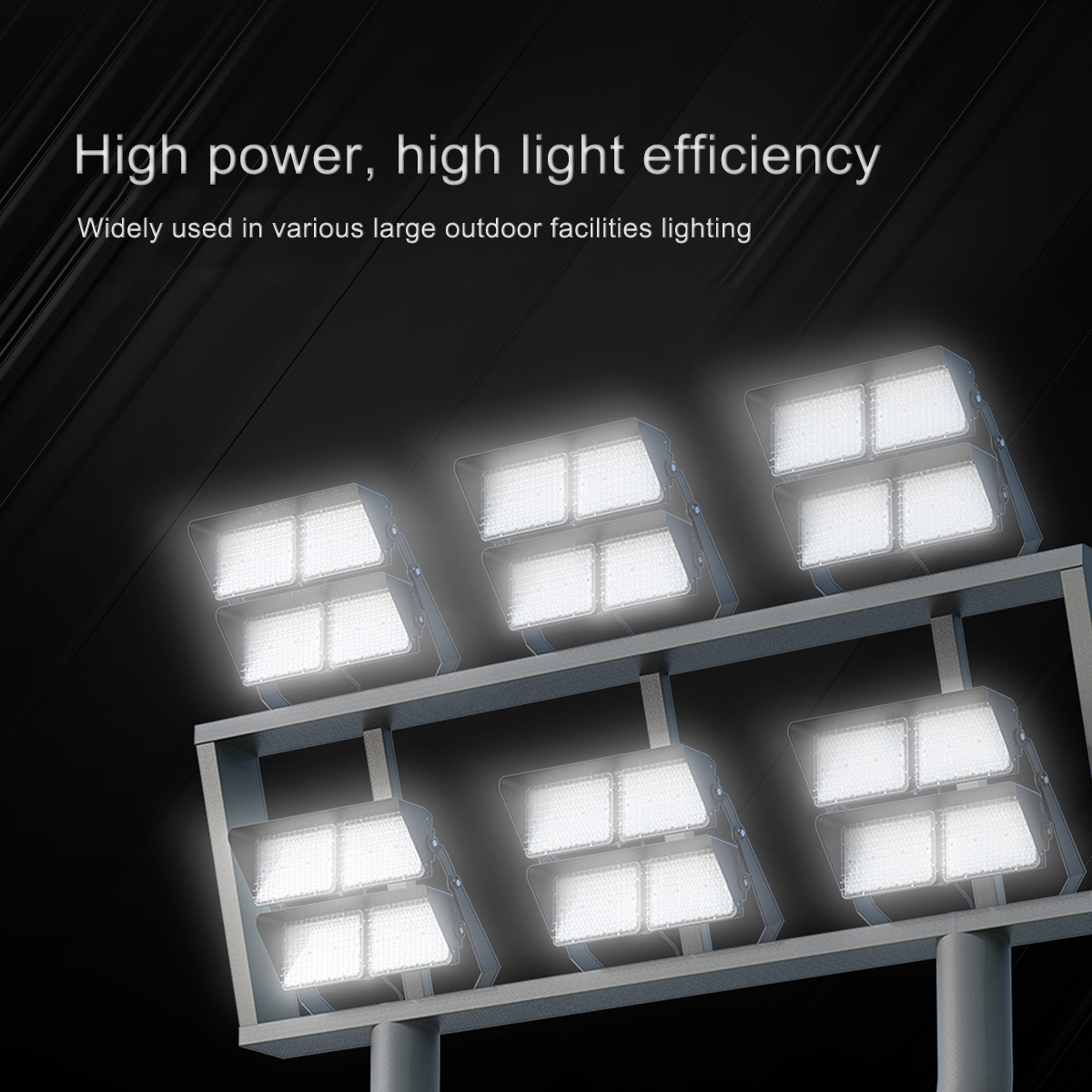

Lub zog loj ntawm 400W txog 2400W,
60,000LM-360,000LM High Luminous Efficiency.

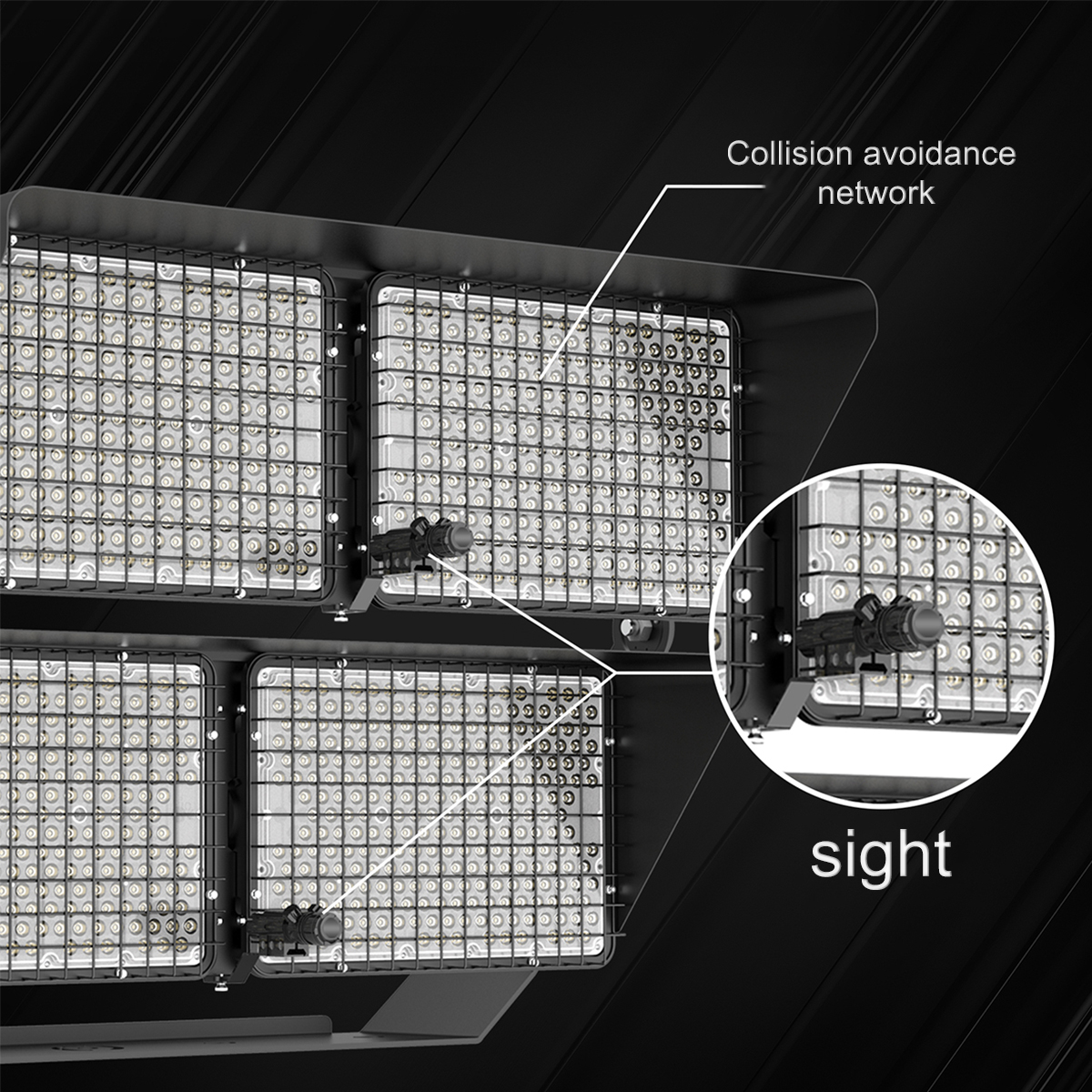

Lub tsev hais plaub kis las yog cov qauv tsim qauv, tuaj yeem sib sau ua ke nrog lub zog sib txawv kom tau raws li qhov xav tau ntawm cov chaw sib txawv.Cov kis las arena teeb pom kev zoo muaj qhov pom kev tsim, yooj yim rau cov neeg siv khoom los nruab qhov xav tau.Sab nraum zoov kev ua si lub teeb yog anti-kev sib tsoo net tsim, zoo tiv thaiv lub teeb nyob rau hauv cov kev ua si arena.

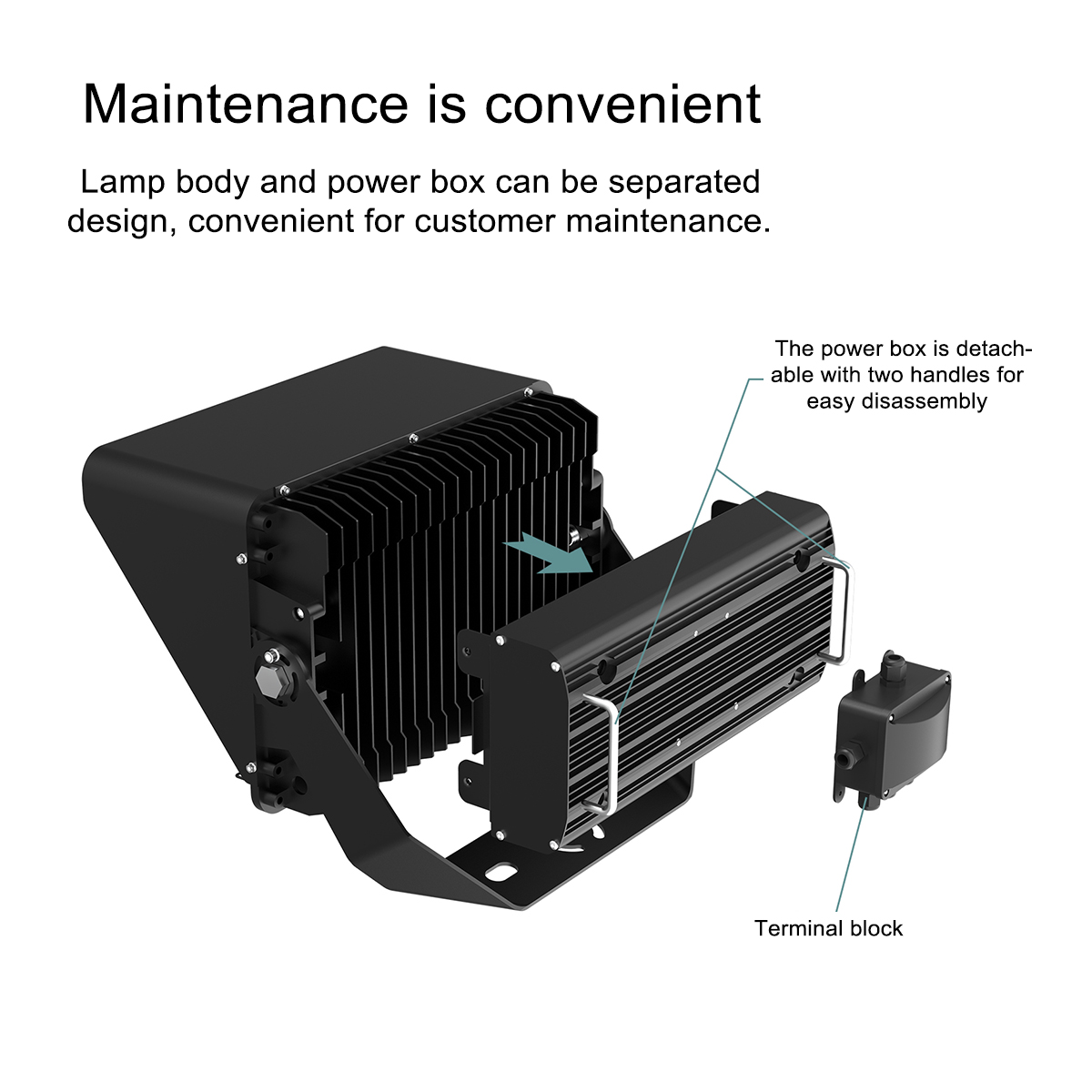

Cov kis las kis las teeb pom kev zoo lub cev thiab lub thawv fais fab tuaj yeem sib cais tsim, yooj yim rau kev saib xyuas cov neeg siv khoom, thiab ua tau raws li cov neeg siv khoom ua si dej nyab lub teeb xav tau cov khoom siv hluav taws xob hauv lub thawv fais fab.thiab ua tau raws li cov kev xav tau ntawm kev ua kis las ntawm cov neeg siv khoom uas xav tau cov khoom siv hluav taws xob nruab rau hauv lub thawv fais fab.
Rau qhov yooj yim ntawm cov neeg siv khoom installation, cov teeb pom kev zoo uas twb muaj lawm coj dej nyab teeb ua kis las cov khoom lag luam bracket tsim rau khoov bracket, thiab xauv lub hau ntswj tuaj yeem tig los kho qhov kev teeb tsa.
Lub zog muaj zog high-altitude kev ua si dej nyab teeb teeb thiab teeb, thiab rau cov neeg siv khoom xav txog kev cai tiv thaiv xob laim.
Txhawm rau txiav txim siab txog kev coj ua kis las sab nraum zoov teeb pom kev zoo thiab tsim qauv nrog cov hlua khi los tiv thaiv.
Cov kev ua si hauv av teeb pom kev zoo yog qhov ua tau zoo luminous 150Lm / W, wattage tuaj yeem ua 400W txog 2400W, ntau yam kev siv, tuaj yeem ua tau raws li cov khoom siv sib txawv.
| Qauv | VKS-SFL400WB | VKS-SFL500WB | VKS-SFL600WB | VKS-SFL800WB | VKS-SFL1000WB | VKS-SFL1200WB | VKS-SFL1600WB | VKS-SFL2000WB | VKS-SFL2400WB |
| Lub zog nkag | 400 W | 500 W | 600 W | 800 W | 1000 W | 1200 W | 1600 W | 2000 W | 2400 W |
| Khoom Loj (mm) | 485 * 453 * 340 hli | 966 * 340 * 453 / 530 * 683 * 680 | 1012 * 732 * 736 hli | ||||||
| Input voltage | AC90-305V 50/60Hz | ||||||||
| LED Hom | Philips 5050/Tiandian 5050 | ||||||||
| Fais fab mov | Meanwell/SOSEN/Inventronics tsav tsheb | ||||||||
| Kev ua tau zoo (lm / W) ± 5% | 150Lm / W ± 10% | ||||||||
| Lumen tso zis ± 5% | 60000 | 75 000 | 9 0000 | 120000 | 150000 | 18 0000 | 24 0000 | 300000 | 360 000 ib |
| Beam Angle | 25° / 40° | ||||||||
| CCT (K) | 4000K / 5000K | ||||||||
| CRI | Ra 70 | ||||||||
| Tus nqi IP | IP65 | ||||||||
| PF | ≥0.95 | ||||||||
| Driver Surge Protection | <20% | ||||||||
| IK Qib | ib 08 | ||||||||
| Ripple Tam sim no | <8% | ||||||||
| Kev tiv thaiv Surge | 10 KV | ||||||||
| Khoom siv | customizable overflow cover / tiv thaiv kev sib tsoo net / pom / DMX512 converter / noog pos / casing / teeb pom kev zoo / lub tes tsho pas nrig | ||||||||
| Khoom siv tsev | ADC12 Aluminium alloy & RAL9007 | ||||||||
| Cov khoom siv diffusion | PC | ||||||||
| QTY (PCS) / thawv | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
| NW (KG / carton) | 18.47 Nws | 35.57 / 42.5 | 59 (tsis muaj tsav tsheb) | ||||||
| GW (KG / thawv) | 19.67 Nws | 37.57 / 44.5 | 62.2 (tsis muaj tsav tsheb) | ||||||
| Packing Loj (mm) | 525 * 375 * 300 hli | 1035 * 395 * 300 / 900 * 605 * 300 | 1095 * 990 * 210 hli | ||||||

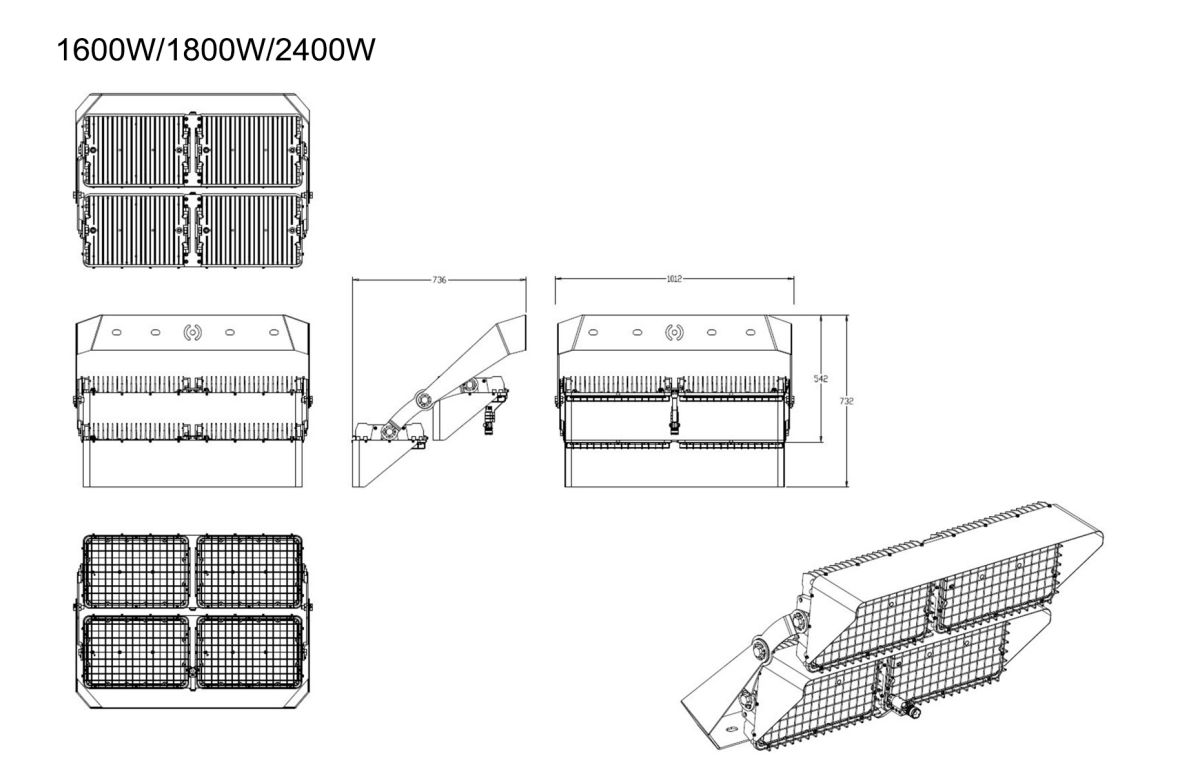

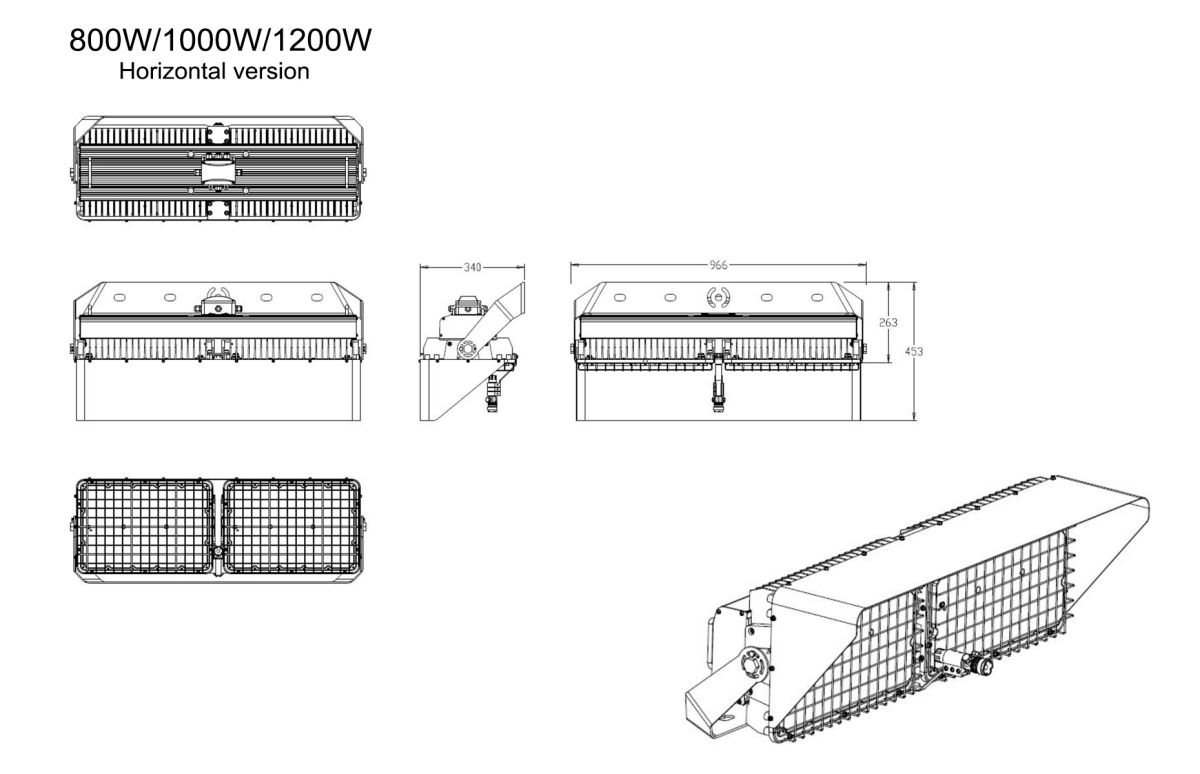

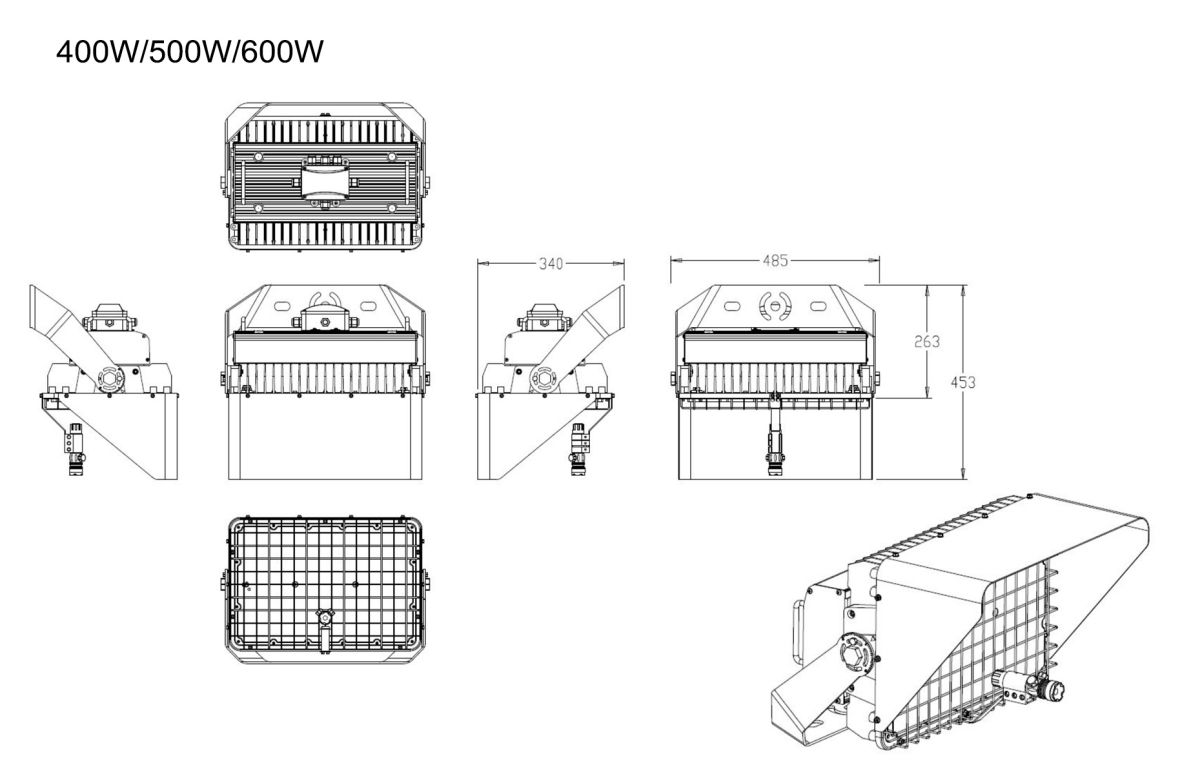

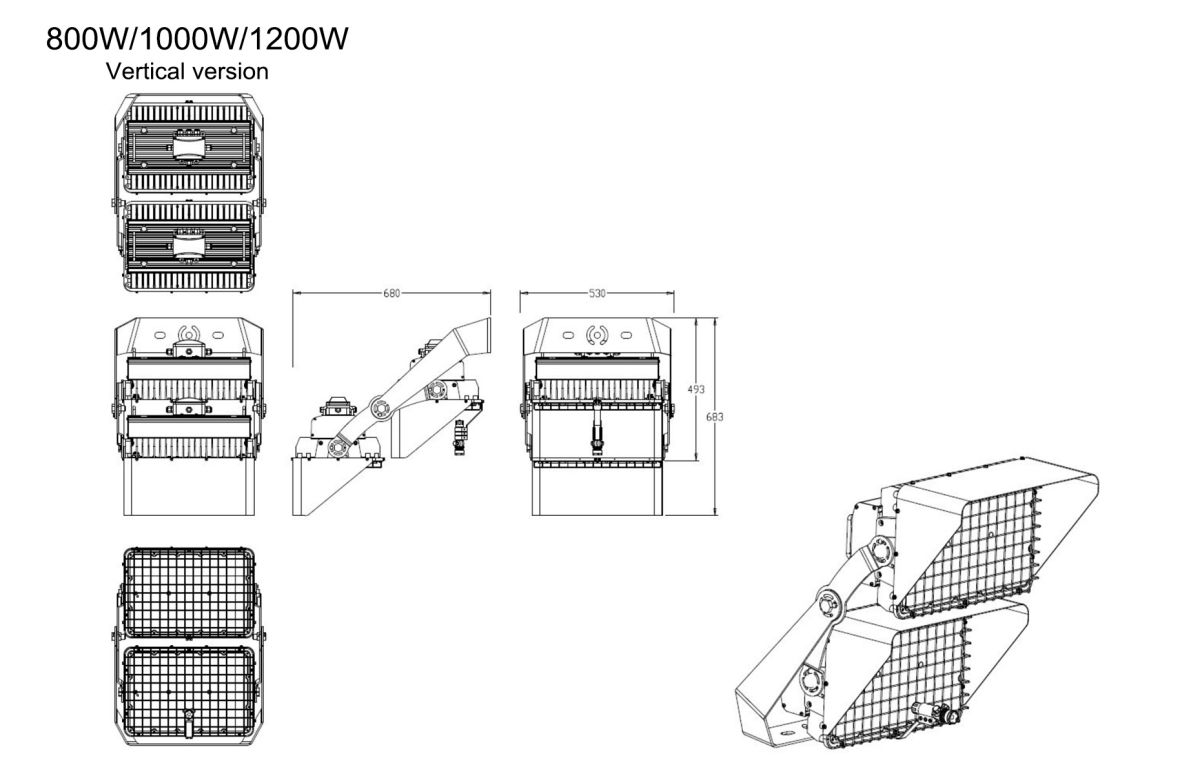

Kev ua si nawv teeb LED Khoom Loj

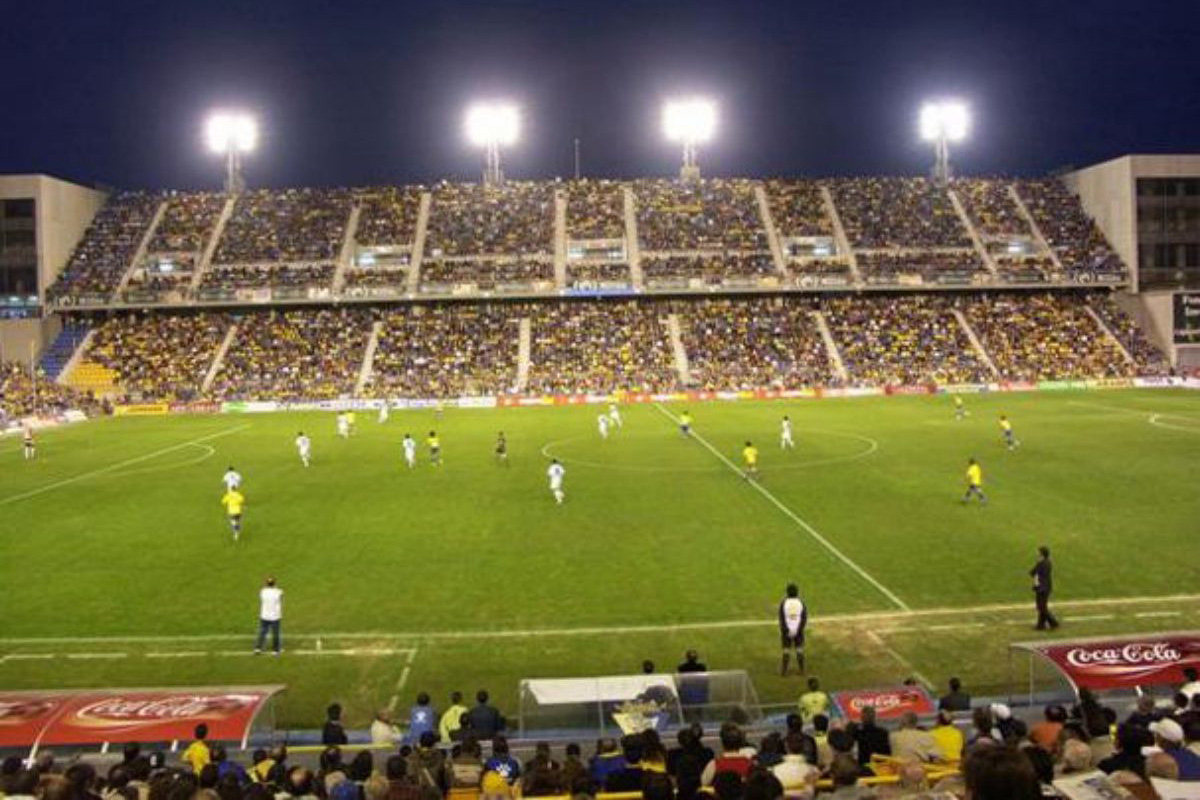

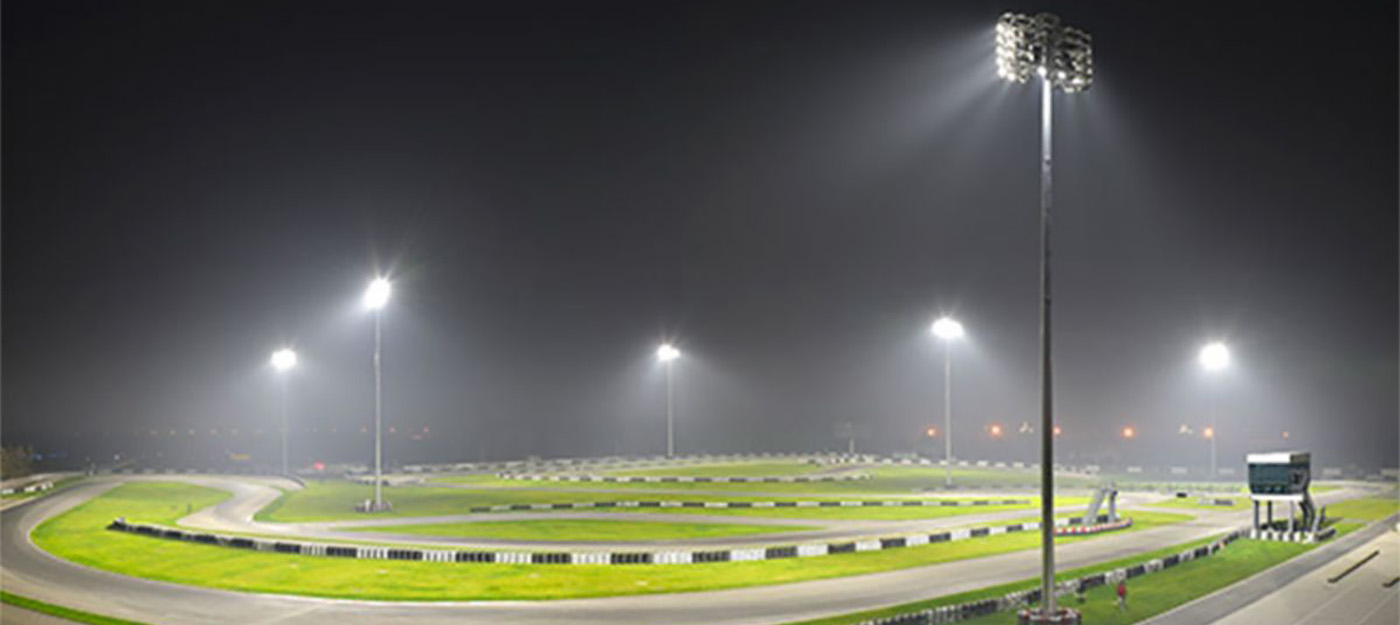

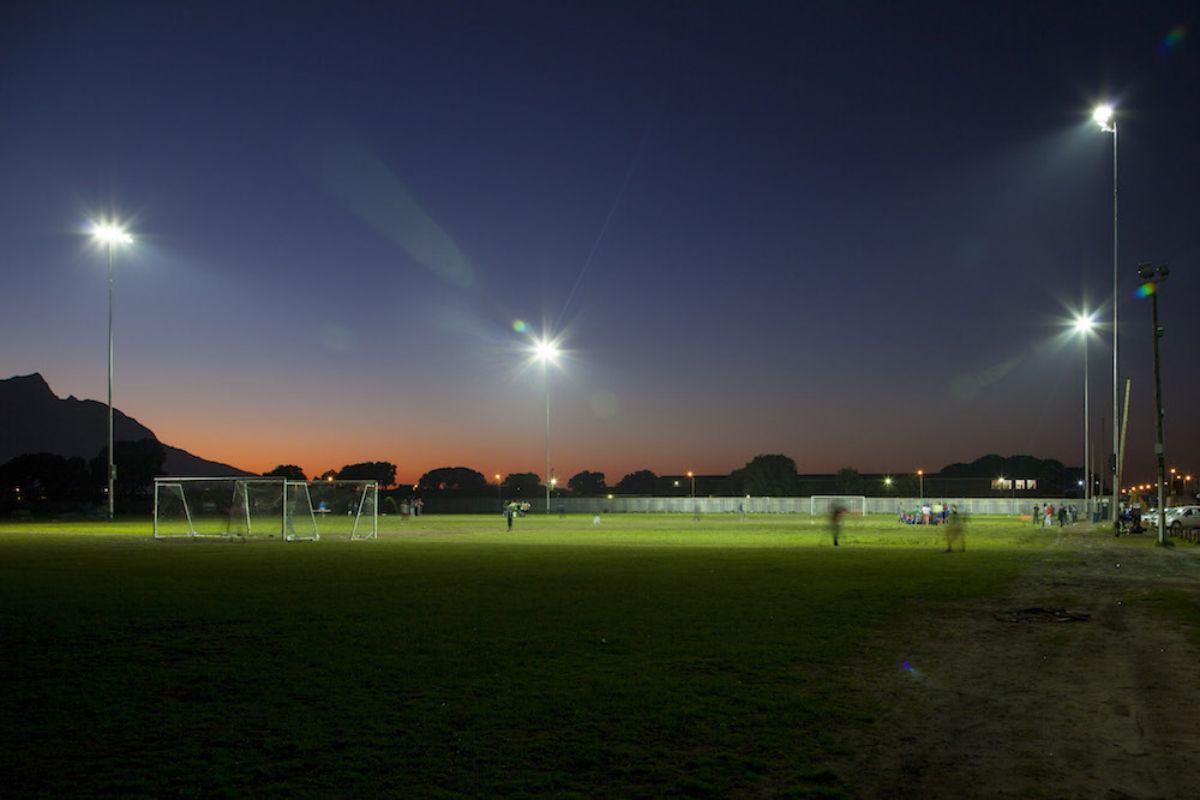

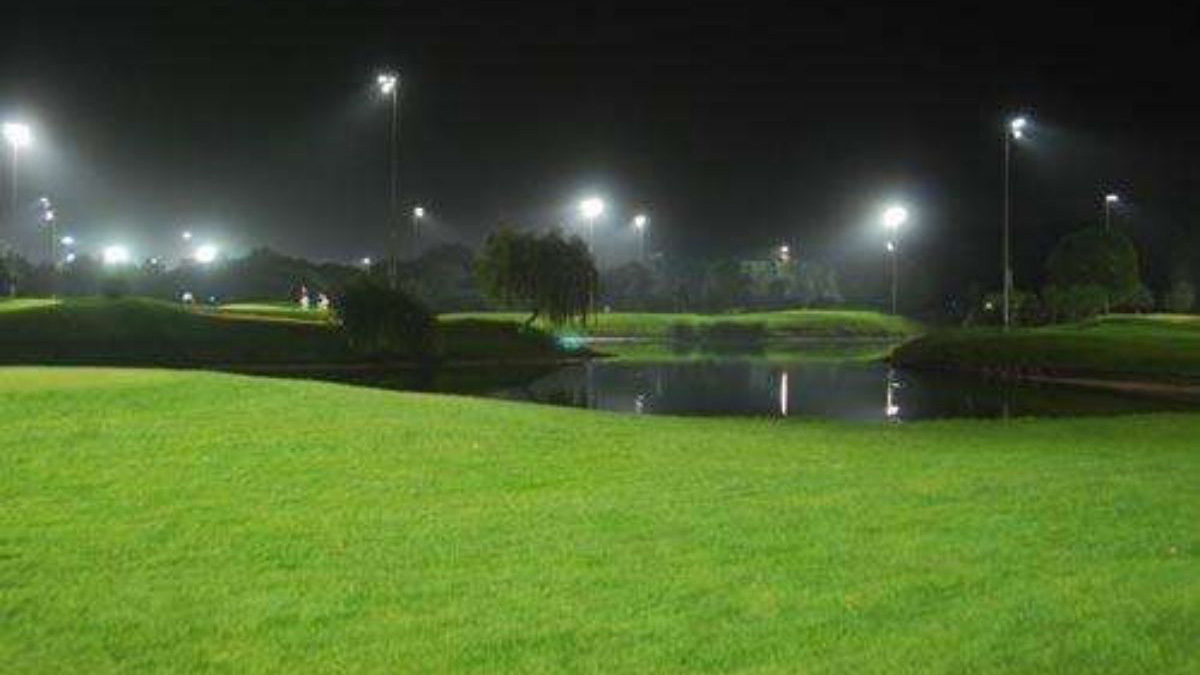

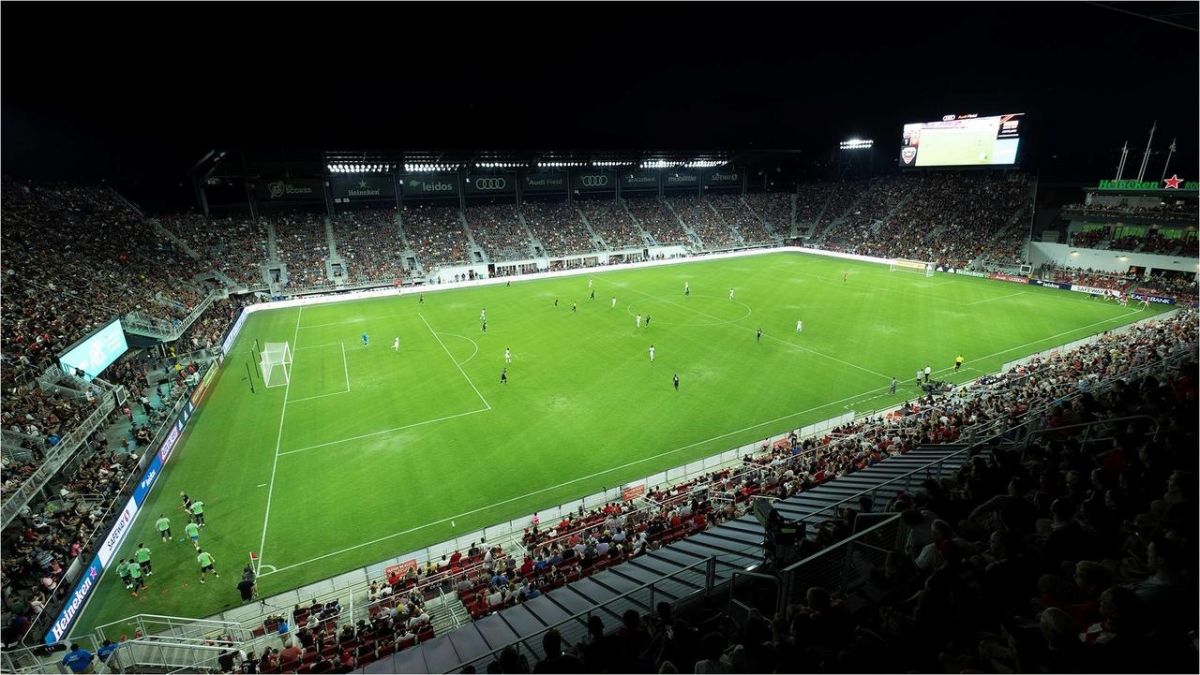

Cov teeb pom kev ua kis las kis las yog siv dav hauv nroog squares, chaw nres tsheb, chaw nres tsheb, chaw thauj khoom, txoj kev loj, chaw ntau pob, hla dhau.
