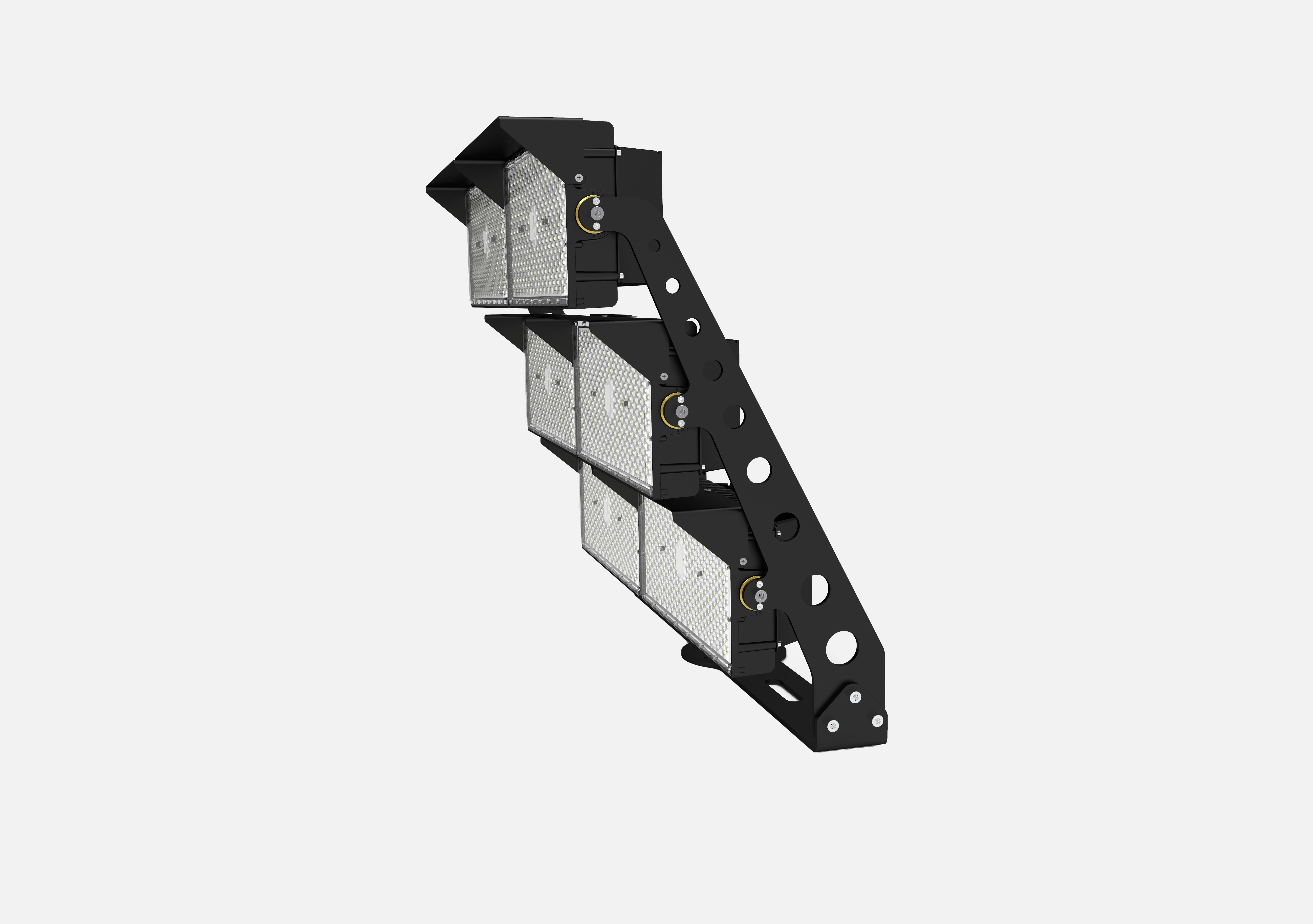

150LM / W LED Chaw Ua Si Siab Mast Teeb pom kev zoo

Lus piav qhia luv luv:

Qhov siab bar suab lub teeb no yog ua los ntawm cov tub rog aluminium vaj tse nrog cov cua kub dissipation Performance index thiab ceev thermal conductivity.Kev tsim teeb pom kev zoo tshaj plaws tiv thaiv glare thiab sab nraud lub teeb tawg.Thawj lub teeb hlaws hlaws nrog lub teeb pom kev zoo PC khoom, txhim kho lub teeb siv los ntawm 15%.Optimized optical tsim nrog plaub lub lens lub teeb faib lub kaum sab xis ntawm 10/25/45/60 ° muaj rau lub teeb muag muag.Zoo tagnrho rau siv nyob rau hauv ntau yam kev ua si sab nraum zoov xws li football, basketball thiab golf kawm.

Lub zog::250W / 500W / 750W / 1000W

Input voltage::AC90-305V 50/60HZ

Lumen::75,000 LM-225,000 LM

Beam Angle::10 ° / 25 ° / 45 ° / 60 ° / 90 °

IP Tus Nqi::IP65

Xa email rau peb

NTAUB NTAWV

SPECIFICATON

daim ntawv thov

Download tau

Khoom cim npe

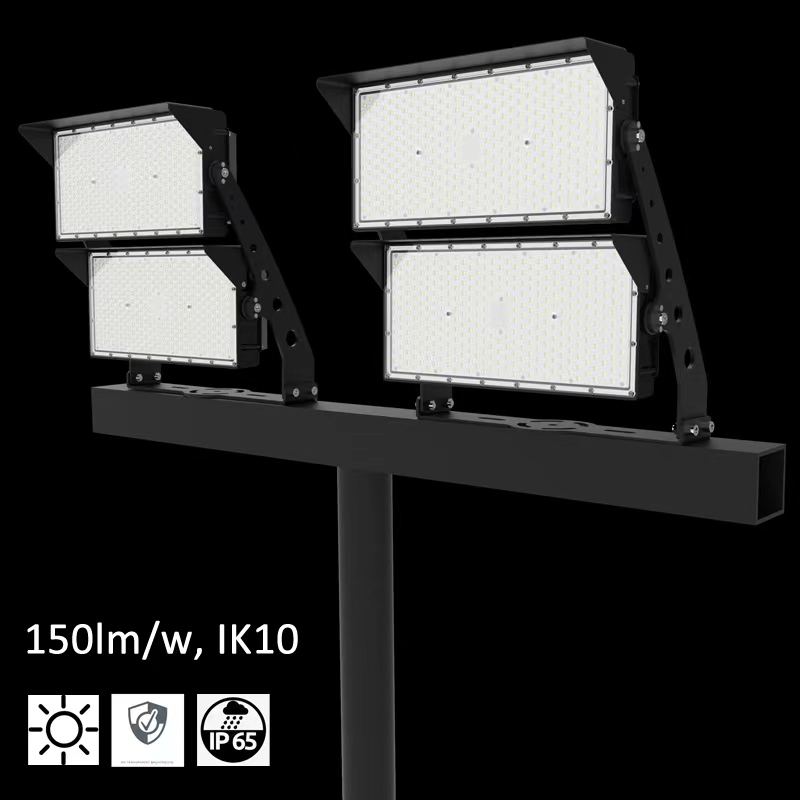

Feature

Lub teeb bar siab no yog ua los ntawm aluminium alloy tuag,
thermal breather tsim, siab thermal conductivity
aluminium substrate, 4 hauv 1 3030 teeb hlaws tsim,
optical PC lens, branded fais fab mov, siab brightness
thiab lub neej ntev.

Tuag-cam khwb cia aluminium teeb lub cev
Kev ua tau zoo Thaum tshav kub kub Dissipation
Qhov siab bar suab lub teeb no yog ua los ntawm siab purity ADC12 txhuas radiator vaj tse, txhua tus ntsia hlau yog ua los ntawm 304 stainless hlau thiab tag nrho precision tuag-casting txheej txheem.Qhov saum npoo yog electrostatically txau rau muaj zog corrosion kuj, ua rau lub teeb muaj zog thiab ruaj khov.Cov duab peb-dimensional yog tsim nrog cov kab tuab, tawv.Ib qho module flange txhua qhov ntsuas 5 degrees kev hloov kho lub kaum sab xis, kho qhov chaw txau, tiv thaiv corrosion, oxidation tsis kam, tsis kam mus rau hydrochloric acid, tuaj yeem dhau ib puas daim phiaj xeem.Cov ntaub ntawv zoo, kev siv thev naus laus zis zoo, cov khoom lag luam ruaj khov thiab kev ua haujlwm ntev.

150lm/W High Brightness Teeb hlaws tsim teeb pom kev zoo
Txais cov thawj coj tuaj txawv teb chaws SMD3030 lub teeb ci, siab transmittance uas tsis yog daj daj optical PC lens, txhim kho 15% kev siv lub teeb.Professional lub teeb faib tsim, zoo tiv thaiv glare, txeej lub teeb, nrog 15/30/60/90 ° plaub lub teeb faib lub kaum ntse ntse.Kev ua haujlwm ruaj khov, ib qho qauv qauv nrog lub teeb thaiv, txo lub teeb poob, muab tag nrho cov teeb pom kev zoo PC cov khoom siv lens, sab sauv txiav lub teeb eaves, tiv thaiv lub teeb rau saum ntuj tawg, tshem tawm lub teeb pov tseg, tuaj yeem ua kom zoo dua ntawm lub teeb, ci ntsa iab loj, zoo reflectivity, ntau yam kaj thiab mos lub teeb.

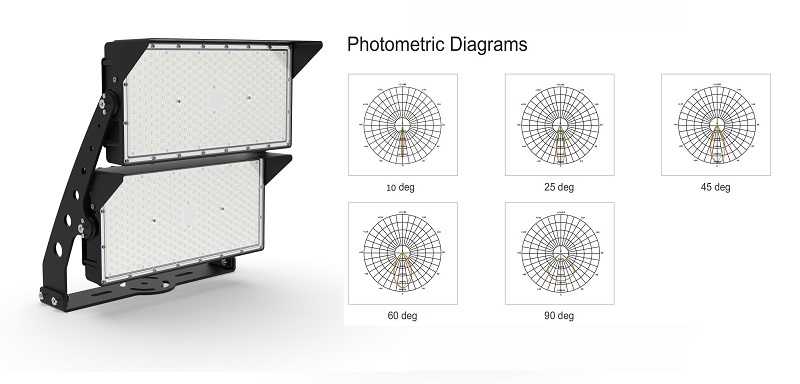

LED chaw ntau pob siab mast lub teeb beam kaum

Adjustable Bracket Yooj yim rau nruab
Nrog adjustable stainless hlau txiv ntseej, ntau lub kaum sab xis hloov ntawm irradiation, lub teeb lub taub hau bracket muaj lub kaum sab xis hloov lub rooj, tuaj yeem teem lub kaum sab xis rau qhov sib txawv lub teeb teeb pom kev zoo tsim nyog, qauv yooj yim, yooj yim thiab yooj yim installation, muab kev yooj yim rau cov neeg siv.ik kev tiv thaiv qib 10, thaum cov khoom ntsib kev sib tsoo, yuav tsis ua rau cov khoom siv sab hauv, kom ua tau raws li kev tiv thaiv.

Specification

Qauv	VKS-SFL250W-L	VKS-SFL500W-L	VKS-SFL750W-L	VKS-SFL1000W-L
Lub zog nkag	250 W	500 W	750w ua	1000 W
Khoom Loj (mm)	237 * 398 * 114 hli	427 * 398 * 114 hli	651 * 398 * 114 hli	741 * 427 * 114 hli
Input voltage	AC90-305V 50-60Hz
LED Hom	TIAB SA 3030
Fais fab mov	Meanwell / SOSEN Tsav Tsheb
Kev ua tau zoo (lm / W)	150 LM / W
Beam Angle	10 ° / 25 ° / 45 ° / 60 ° / 90 °
CCT (K)	3000K / 4000K / 5000K
CRI	Rau 70/80
Tus nqi IP	IP65
PF	> 0.95
Khoom siv	Tuag Casting Aluminium
Ua haujlwm kub	-30 ° C ~ 60 ° C
Cov av noo	10% ~ 90%
Nto tiav	Hmoov Txheej
Warranty	5 xyo
QTY/Carton	1 pcs	1 pcs	1 pcs	1 pcs
NW	4.8 KG	9 KG	13.2 KWG	17,5 KG

Qauv	VKS-SFL250W-L	VKS-SFL500W-L	VKS-SFL750W-L	VKS-SFL1000W-L
Lub zog nkag	250 W	500 W	750w ua	1000 W
Khoom Loj (mm)	273 * 368 * 114 hli	427 * 368 * 114 hli	651 * 398 * 114 hli	741 * 427 * 114 hli
Input voltage	AC90-305V 50-60Hz
LED Hom	TIAB SA 3030
Fais fab mov	Meanwell / SOSEN Tsav Tsheb
Kev ua tau zoo (lm / W)	150 LM / W
Beam Angle	10 ° / 25 ° / 45 ° / 60 ° / 90 °
CCT (K)	3000K / 4000K / 5000K
CRI	Rau 70/80
Tus nqi IP	IP65
PF	> 0.95
Khoom siv	Tuag Casting Aluminium
Ua haujlwm kub	-30 ° C ~ 60 ° C
Cov av noo	10% ~ 90%
Nto tiav	Hmoov Txheej
Warranty	5 xyo
QTY/Carton	1 pcs	1 pcs	1 pcs	1 pcs
NW	4.8 KG	9 KG	13.2 KWG	17,5 KG

Qauv	VKS-SFL250W-L	VKS-SFL500W-L	VKS-SFL750W-L	VKS-SFL1000W-L
Lub zog nkag	250 W	500 W	750w ua	1000 W
Khoom Loj (mm)	273 * 398 * 114 hli	427 * 398 * 114 hli	651 * 398 * 114 hli	741 * 427 * 114 hli
Input voltage	AC90-305V 50-60Hz
LED Hom	TIAB SA 3030
Fais fab mov	Meanwell / SOSEN Tsav Tsheb
Kev ua tau zoo (lm / W)	150 LM / W
Beam Angle	10 ° / 25 ° / 45 ° / 60 ° / 90 °
CCT (K)	3000K / 4000K / 5000K
CRI	Rau 70/80
Tus nqi IP	IP65
PF	> 0.95
Khoom siv	Tuag Casting Aluminium
Ua haujlwm kub	-30 ° C ~ 60 ° C
Cov av noo	10% ~ 90%
Nto tiav	Hmoov Txheej
Warranty	5 xyo
QTY/Carton	1 pcs	1 pcs	1 pcs	1 pcs
NW	4.8 KG	9 KG	13.2 KWG	17,5 KG

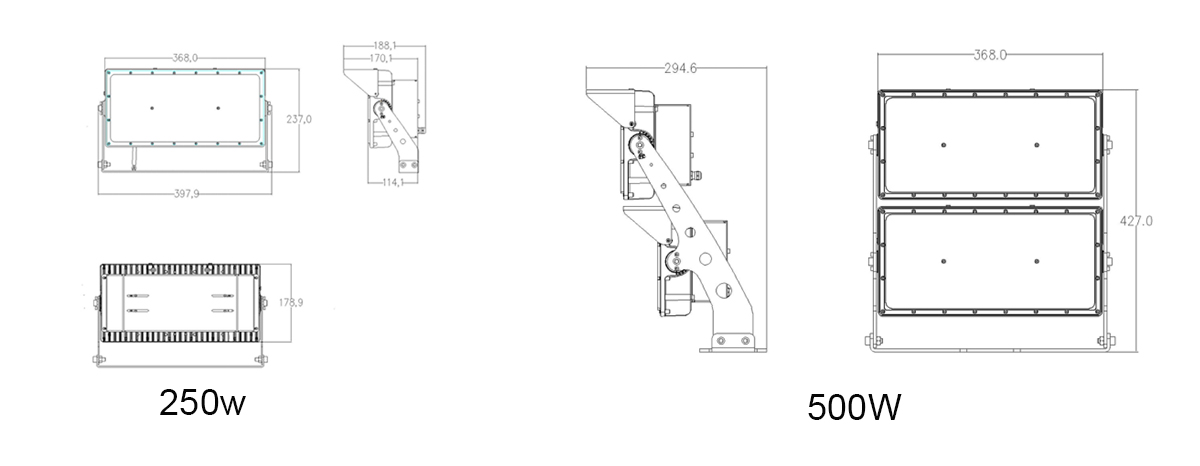

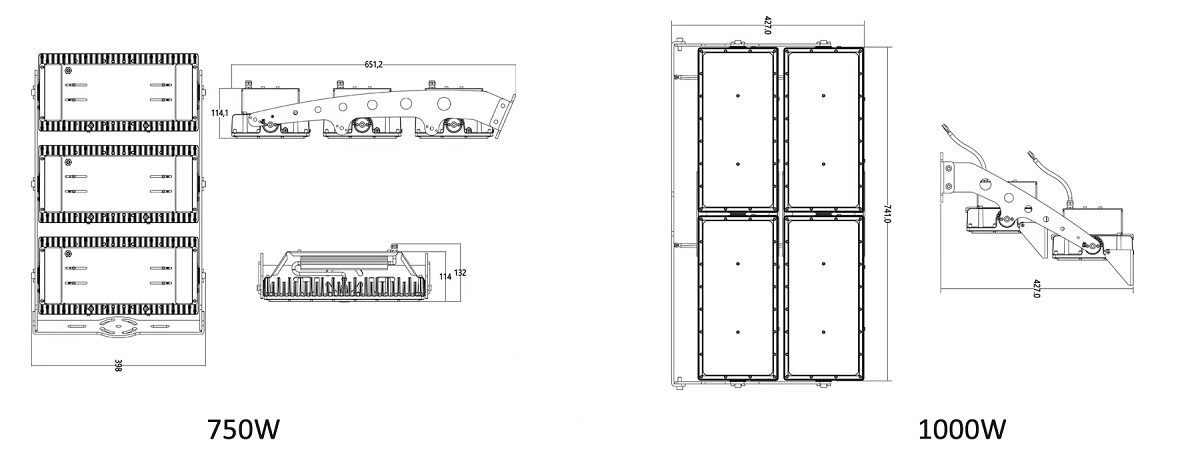

Loj

APPLICATION

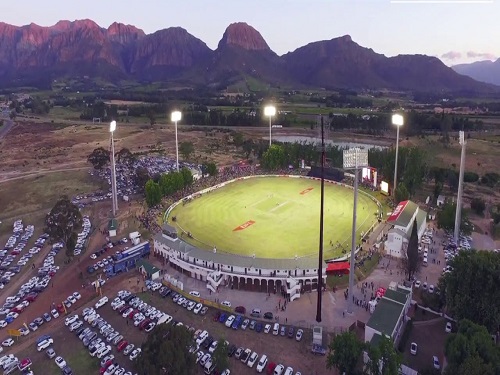

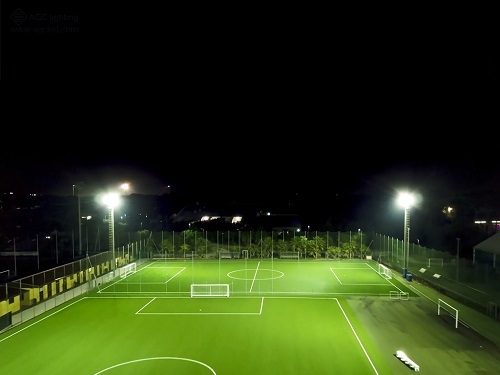

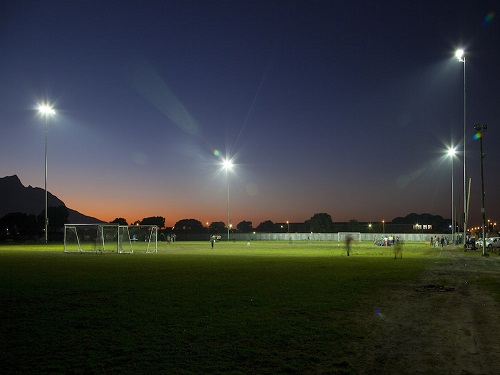

LED Stadium siab mast teeb pom kev zoo nrog nws qhov dav illumination cheeb tsam, lub teeb ncej siab yog tshwj xeeb tshaj yog tsim rau siv nyob rau hauv ib puag ncig uas yuav tsum tau loj cheeb tsam teeb pom kev zoo, xws li chaw ua si squares, nroog squares, chaw nres tsheb, docks, stadiums, thiab lwm yam. Lub Stadium High Ncej teeb yog zoo tagnrho. rau kev teeb tsa ntawm lub suab, nrog rau thaj chaw loj teeb pom kev zoo, lub teeb pom kev zoo, lub teeb pom kev zoo, lub teeb pom kev zoo, me dazzle, yooj yim los tswj thiab tswj, thiab lub teeb tsis hnyav, tsis muaj kuab paug, thiab yooj yim rau kev khiav lag luam nrog hluav taws xob nqa. .
