280,000lm LED Dej nyab teeb pom kev zoo rau chaw ntau pob teeb pom kev zoo

Lus piav qhia luv luv:

500W-1800W Loj watt coj dej nyab teeb pom kev zoo IP66 coj kev ua si nawv teeb pom kev zoo, honeycomb tshav kub dissipation tsim, multi-module tuaj yeem txuas rau siv, lub teeb pom kev zoo txog li 160lm / w, ntau lub kaum sab xis yog tsim rau ntau qhov chaw, dav siv hauv chaw ntau pob loj, lub nroog squares, Choj thiab tunnels, chaw ntau pob, chaw tsim kho thiab lwm yam.


  • Lub zog: :400W, 500W, 800W, 1200W, 1800W
  • Input voltage::AC90-305V 50/60Hz
  • Lumen::44000-288000 lm
  • Beam Angle::7/15/30/60/90/120 °/T2M/T3M/T4M
  • IP tus nqi: :IP66
  • NTAUB NTAWV

    SPECIFICATON

    APPLICATION

    Download tau

    Khoom cim npe

    kev

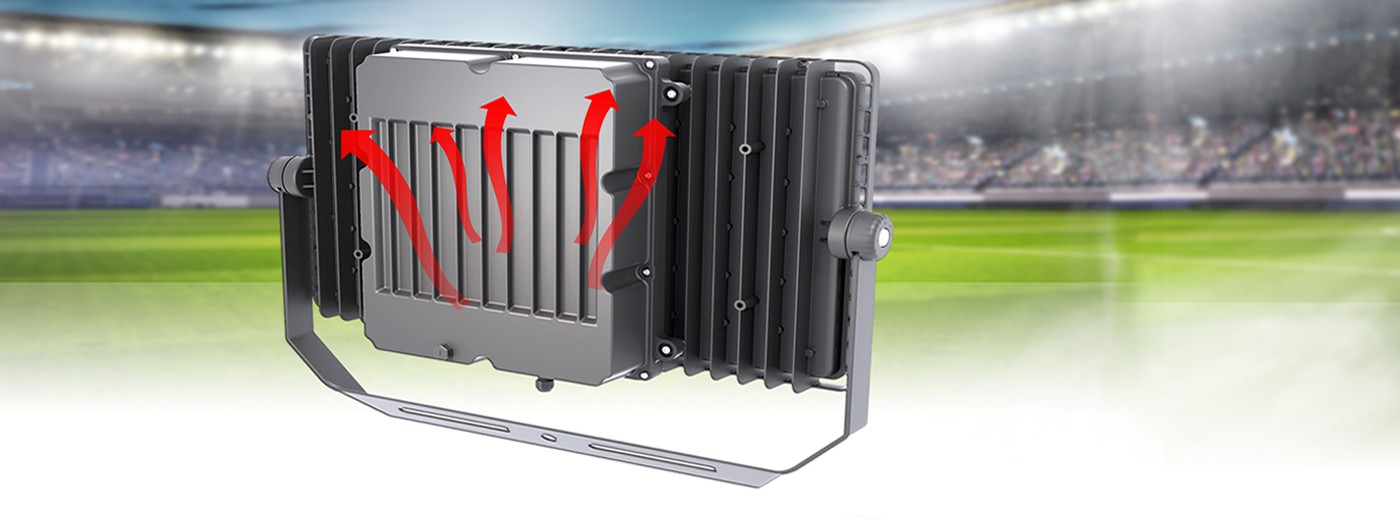

    Cov tsos tshwj xeeb thiab kev ua haujlwm zoo heev thaum tshav kub kub dissipation, cuam tshuam tsis kam thiab corrosion kuj

    VKS FL4 series loj cheeb tsam coj dej nyab lub teeb zoo honeycomb tshav kub dissipation tsim, electronics thiab lub teeb qhov chaw kab noj hniav sib cais, nrog exquisite cim tsos thiab zoo heev tshav kub dissipation, zoo tswj ntawm kub nce ntawm ntau yam Cheebtsam, ntev kev pab cuam lub neej ntawm LED thiab lwm yam hluav taws xob Cheebtsam. , xyuas kom lub sij hawm ntev ruaj khov thiab txhim khu kev qha ua haujlwm ntawm lub teeb thiab teeb, lub plhaub yog ua los ntawm lub zog siab aluminium alloy tuag-casting txoj kev, nto sib npaug txau ua, Muaj zog cuam tshuam thiab corrosion kuj.

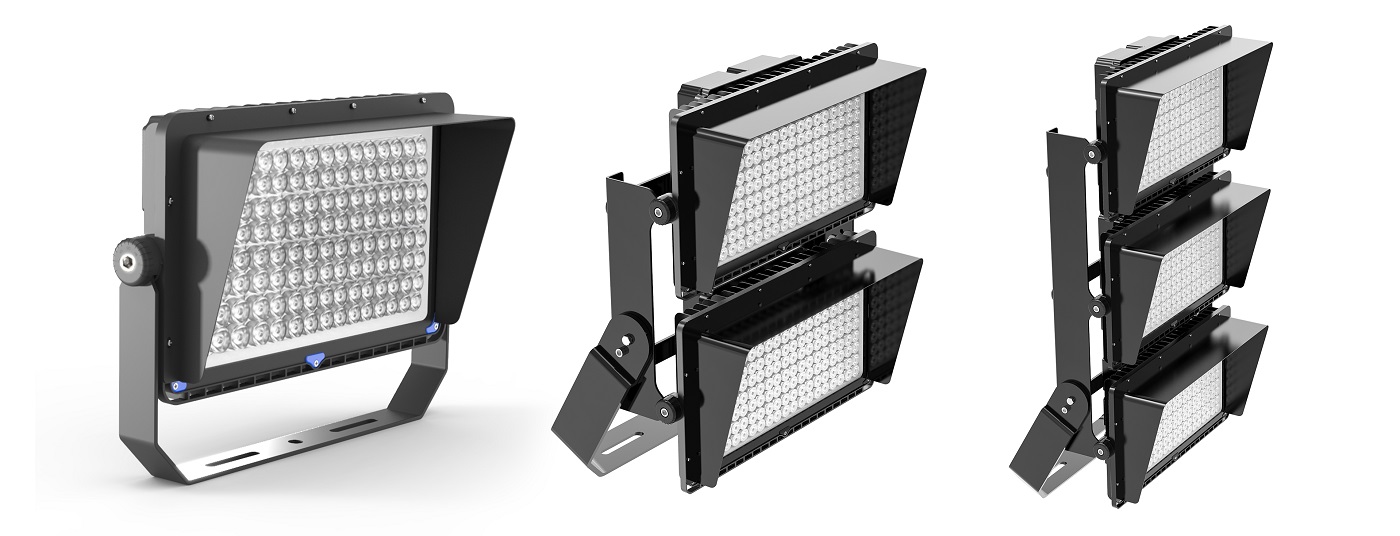

    Private qauv patent khoom, modular tsim

    VKS FL4 series coj dej nyab lub teeb rau arena ntiag tug pwm patent khoom, 500W-1800W siab zog sab nraum zoov lub tsev hais plaub teeb, integrated aluminium alloy tuag-casting, yuav ua tau multi-module splice siv, ntau yam duab, yooj yim installation thiab txij nkawm, nce kev lag luam kev sib tw, thoob ntiaj teb RAL xim daim npav qauv, dub, nyiaj grey ob xim muaj.

    280000lm-LED-Flood-Lighting-rau-Stadium-Lighting-3

    Lub teeb ua haujlwm txog li 160Im / w, txuag hluav taws xob thiab tiv thaiv glare

    Muaj ntau hom kev kho qhov muag lo ntsiab muag, 4 nyob rau hauv ib / 12 nyob rau hauv ib / 16 nyob rau hauv ib / 24 nyob rau hauv ib tug, kom ua tau raws li qhov yuav tsum tau ntawm txawv sab nraum zoov teeb pom kev zoo lumens, VKS 1500W coj dej nyab lub teeb rau Stadium efficiency mus txog 160lm / W, siab teeb efficiency, txuag hluav taws xob siab, muaj txiaj ntsig zoo, thiab ua kom cov qauv shading kom txo qis glare, thiab tiv thaiv lub teeb dhau, tsis cuam tshuam rau qib kev ua si, thiab tsis cuam tshuam rau cov neeg tuaj saib.

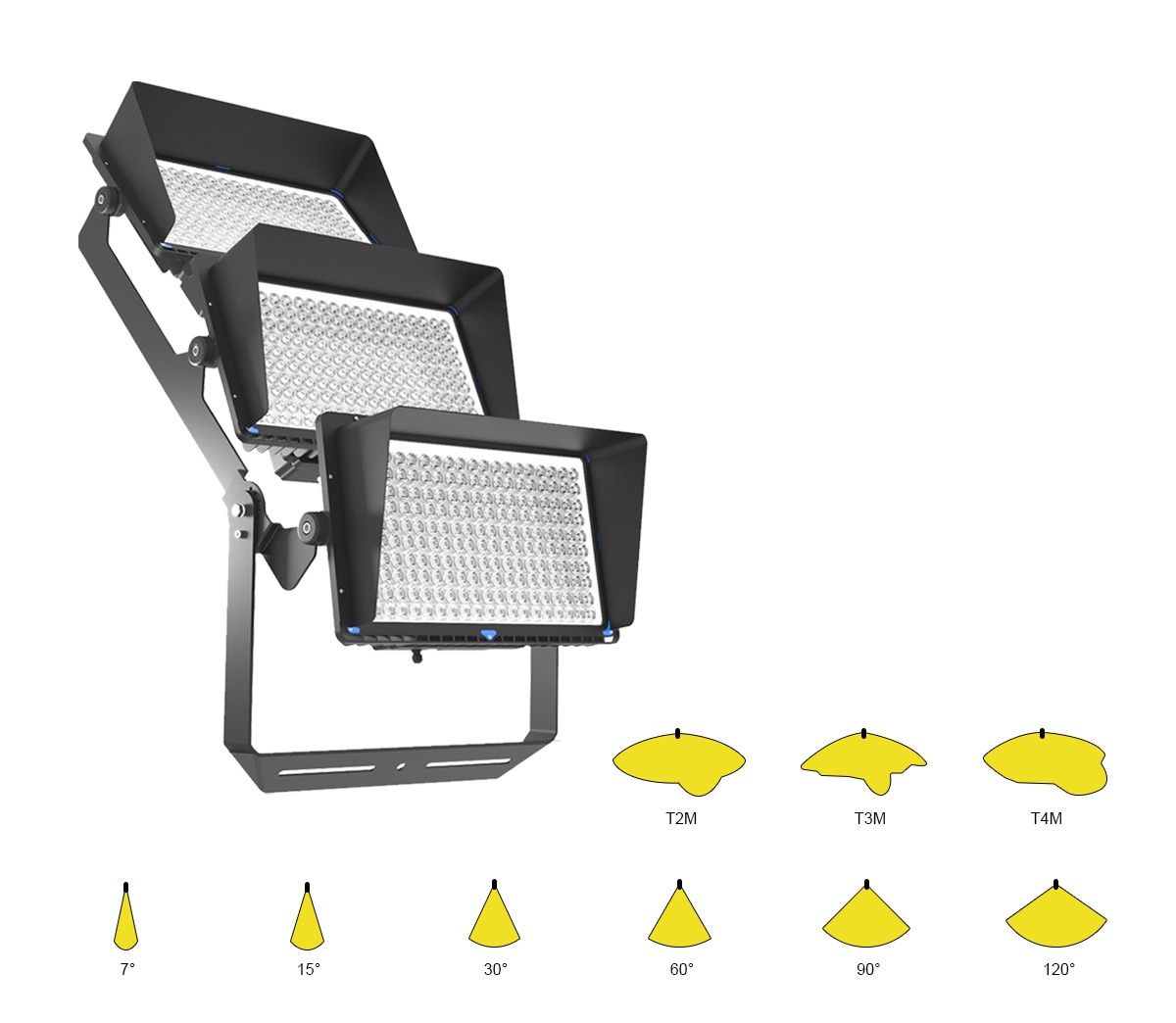

    9 hom teeb pom kev zoo, muaj ntau hom kev xaiv, kom ua tau raws li cov qauv tsim ntawm cov scenes sib txawv

    VKS FL4 coj chaw ntau pob dej nyab lub teeb faib ntau yam series, xaiv tau 9 yam ntawm txoj kev teeb pom kev zoo, xws li kev ua kis las teeb pom kev zoo tsis yog tsuas yog xav tau kom txaus siab rau lub dav hlau kab rov tav thiab ntsug ntawm lub teeb pom kev zoo thiab cov kev xav tau sib xws, tab sis kuj tswj lub teeb pom kev zoo lub kaum sab xis tsis yog rau cov players thiab Cov neeg saib ua rau pom kev ci ntsa iab, ntau lub teeb thiab cov teeb ci yuav tsum tau txais kev pom zoo rau kev sib koom ua ke ntawm cov nqaj, kev sib koom ua ke, cov teeb pom kev zoo, kev siv tsis zoo ntawm cov teeb pom kev dav dav thiab cov teeb ci.

    280,000lm LED Dej nyab teeb pom kev zoo rau chaw ntau pob teeb pom kev zoo (4)

    SPECIFICATON

    Qauv VKS-SFL400W-R VKS-SFL500W-R VKS-SFL800W-R VKS-SFL1200W-R VKS-SFL1800W-R
    Hwj chim

    400 W

    500 W

    800 W

    1200 W

    1800 W

    Cov khoom loj (mm) L531 * W377 * 129mm L637 * W462 * 134mm L763 * W573 * 152mm L847 * W656 * 303mm L1224 * W656 * 303mm
    Input voltage

    AC90-305V 50/60Hz

    LED Hom

    Lumileds (Philips) SMD 3030/3535

    Fais fab mov

    Meanwell / SOSEN / Inventronics tsav tsheb

    Kev ua tau zoo (lm / W) ± 5%

    110-160LM / W (5000K, Ra70)

    Lumen tso zis ± 5%

    44000-64000 LM

    55000-80000LM

    88000-128000 LM

    132000-192000 LWM

    198000-288000 LWM

    Beam Angle

    7/15/30/60/90/120 °/T2M/T3M/T4M

    CCT (K)

    3000K/4000K/5000K/5700K

    CRI

    Ra70 (Ra80 rau xaiv)

    Tus nqi IP

    IP66

    PF

    > 0.95

    Dimming

    Tsis-dimming (Default) / 1-10V Dimming / Dali dimming

    Intelligent Control

    Motion Sensor

    Khoom siv

    Die-Cast + PC Lens

    Kev ua haujlwm Tenperature

    -40 ℃ ~ 65 ℃

    Cov av noo

    10% ~ 90%

    Ua kom tiav

    Hmoov Txheej

    Kev tiv thaiv Surge

    4kV kab-kab (10KV, 20KV rau kev xaiv)

    Mounting Option

    Bracket

    Warranty

    5 Xyoo

    Q'TY (PCS) / thawv

    1 Pcs

    1 Pcs

    1 Pcs

    1 Pcs

    1 Pcs

    NW (KG / carton)

    10.5 kg ib

    15kg ua

    22kg ua

    31kg ua

    46kg ua

    Carton Loj (mm) 558 * 432 * 172 hli 666x548x200mm 817 * 605 * 190 hli 910 * 700 * 220 hli 1285 * 700 * 220 hli
    GW (KG / thawv)

    12kg ua

    17kg ua

    24, 3kg

    34.5kg 3

    50k ib

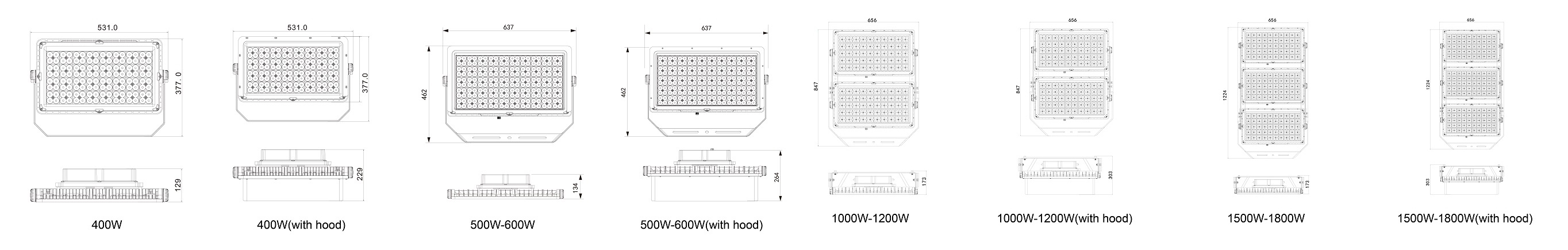

    280,000lm LED Dej nyab teeb pom kev zoo rau chaw ntau pob teeb pom kev zoo khoom loj

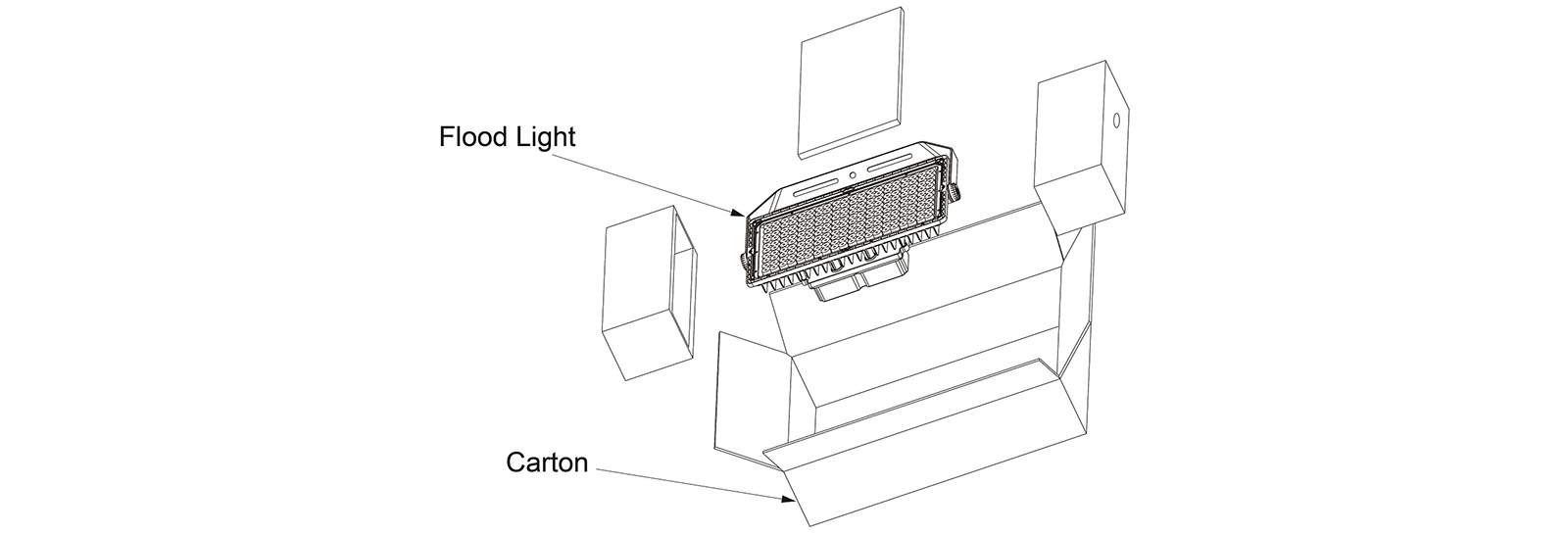

    280,000lm LED Dej nyab teeb pom kev zoo rau chaw ntau pob teeb pom kev zoo ntim

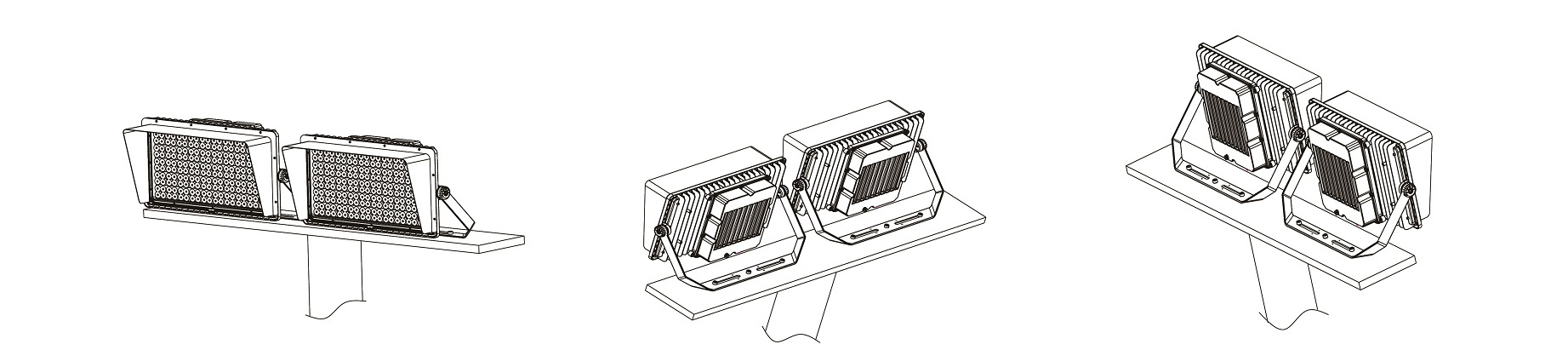

    280,000lm LED Dej nyab teeb pom kev zoo rau kev teeb pom kev hauv chaw ntau pob

    los ntawm kev kho lub bracket ntawm qhov chaw ruaj khov nrog screws ces txuas lub cable thiab kho lub teeb lub cev kom raug

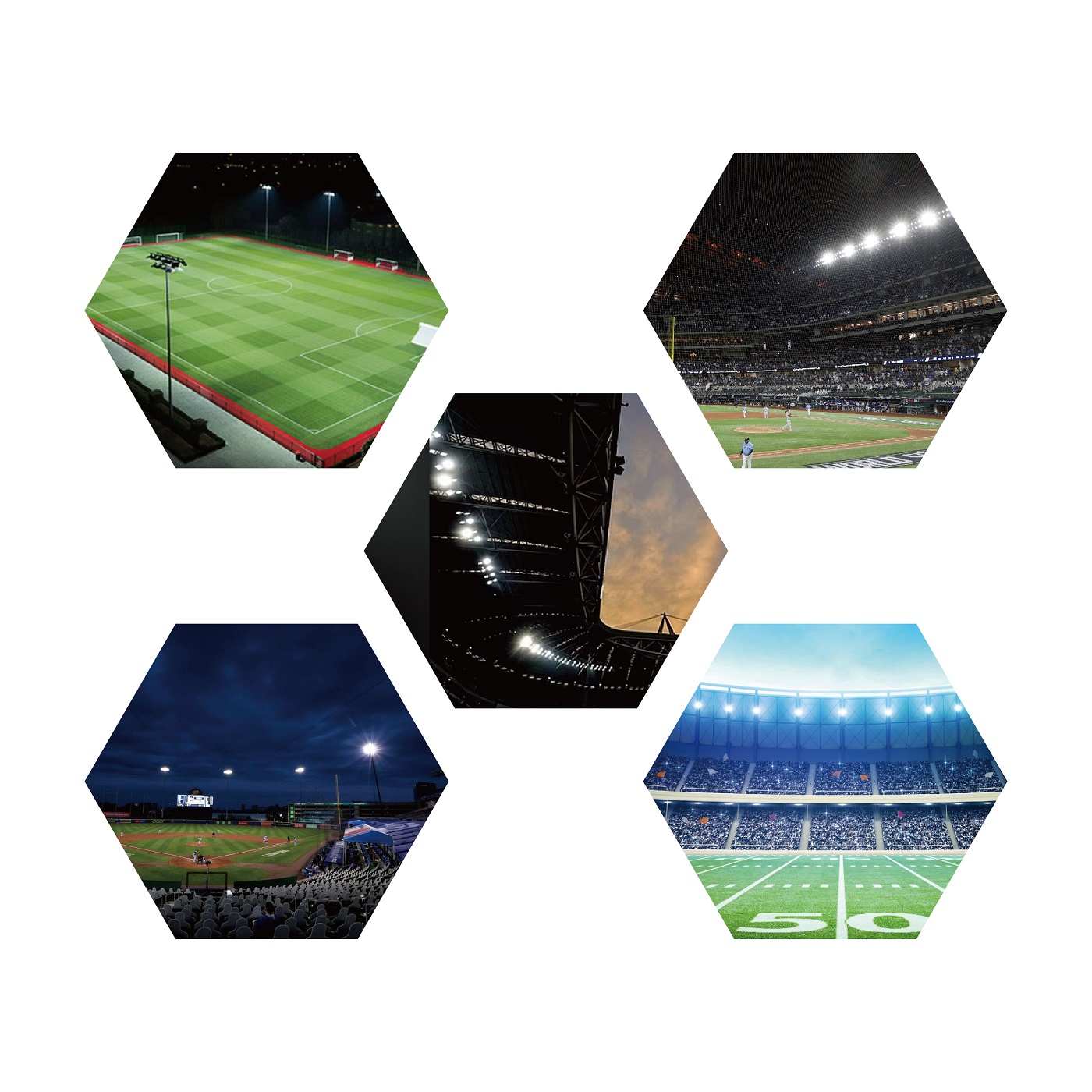

    APPLICATION

    VKS FL3 series sab nraum zoov coj dej nyab teeb lub teeb, xim rendering Performance index ntau dua Ra80, lub teeb yog mos, yog rendered raws li ntuj xim ntawm cov khoom yuav ua tau nyob rau hauv tag nrho cov kev taw qhia txawm illuminate lub teeb qhov chaw, nws muaj peev xwm kho lub illumination ntawm Scope, kev ua tau zoo. nyob rau hauv lub scene rau ib tug zoo octahedral nraaj, yog dav siv nyob rau hauv omni tsev so phab ntsa, square hmo ntuj scene, vaj teeb pom kev zoo, sab hauv kho kom zoo nkauj, Sab nraum zoov floodlight yog lub feem ntau lug siv teeb nyob rau hauv toj roob hauv pes teeb pom kev zoo.

    VKS FL3 series sab nraum zoov coj dej nyab teeb lub zog txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, tsis muaj stasmoscopic, zoo xim rendering, xim kub ntawm 2700K txog 6500K raws li qhov xav tau ntawm cov neeg siv khoom xaiv, thiab tuaj yeem ua rau xim xim, rau lub vaj kho kom zoo nkauj teeb pom kev zoo, pom Lub teeb feem ntau tshaj 80%, pom kev pom zoo, muaj lub zog loj, tsis tshua muaj kev sib haum xeeb, qhov hluav taws xob tsis tu ncua, cov khoom siv hluav taws xob tas li, Siv dav hauv factories, gymnasiums, docks, billboards, vaj tsev, nyom, horticultural tsim, teeb pom kev zoo thiab lwm yam teeb pom kev zoo thiab teeb pom kev zoo xav tau qhov chaw.
