Ultra Nyias LED UFO High Bay Teeb

Lus piav qhia luv luv:

100W / 150W / 200W UFO coj lub teeb pom kev siab teeb pom kev zoo, 130-140lm / w, IP65 waterproof high-quality vaj tse nrog cov cua sov ua haujlwm zoo, sib phim nrog cov lens zoo optic, Philips Lumileds 3030 coj nti thiab hom IP65 tsav tsheb, lub neej ntev ntau tshaj 5 xyoos, dav siv hauv kev lag luam sab hauv tsev thiab sab nraum zoov.


  • Lub zog::100W, 150W, 200W
  • Input voltage::AC90-305V 50/60Hz
  • Lumen::13500-26000 hli
  • Beam Angle::60/90/120 °
  • IP Tus Nqi::IP65
  • NTAUB NTAWV

    SPECIFICATON

    daim ntawv thov

    Download tau

    Khoom cim npe

    Feature

    ib
    b

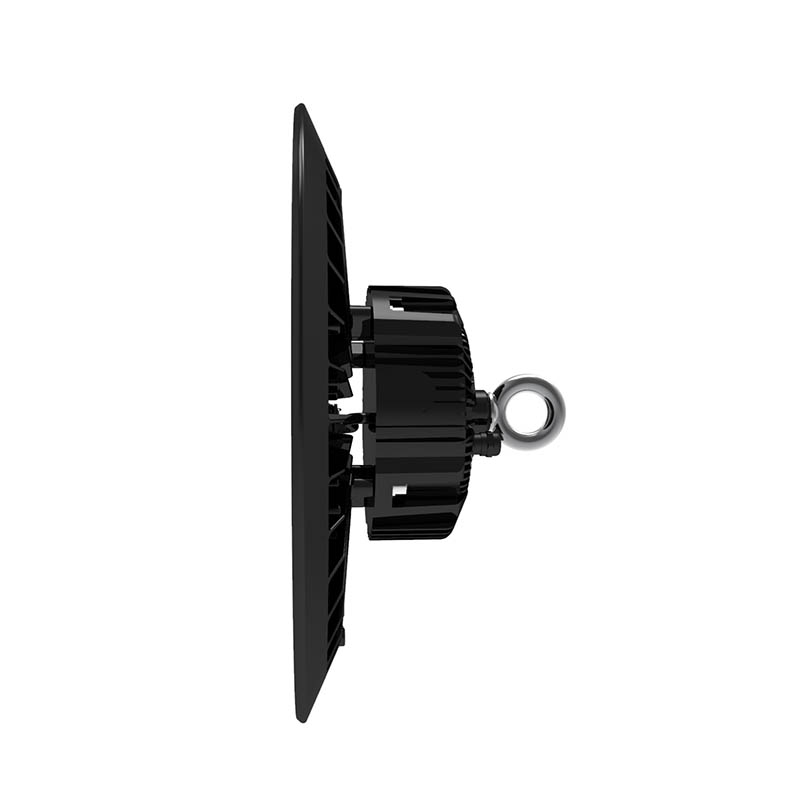

    Ultra-nyias UFO, 100W tsuas yog 38.6mm tuab
    Peb qhov kev sib tw tshiab ultra-nyias UFO teeb yog ua raws li qhov ua tau zoo ntawm cov cua kub dissipation ntawm Philips lub teeb qhov chaw, siv cov txheej txheem ntshiab aluminium spinning, ultra-thin duab tsim, lub teeb yuag, zoo nkauj tsos.Nws muaj kev nyab xeeb dua li cov qauv UFO LED ua haujlwm lub teeb, qhov tuab ntawm 100W tsuas yog 38.6 hli, qhov hnyav tsuas yog 1.42KG, uas yog ntau dua 50% sib dua li cov qauv UFO ua haujlwm, qhov hnyav yuav tsum tau ua ntawm cov qauv nyiaj siv ua haujlwm qis dua, thiab qhov hnyav ntawm cov khoom siv installation, xws li cov hlua dai thiab boom kuj qis dua, muaj kev nyab xeeb dua thiab txuag cov nqi installation.

    VKS Makalo series coj high bay teeb pom kev zoo vaj tsev yog ua los ntawm 6063 tuag-cam khwb cia txhuas, tom qab 15 nto ua technology, thiab muaj peev xwm tiv taus mus txog 600 teev ntawm ntsev tsuag tshuaj ntsuam yog tseem nondestructive, muaj zog thiab zoo tiv thaiv ntsev corrosion, nyob rau hauv ntug hiav txwv dej, ntub, heev corrosive hiav txwv cua tseem tsis cuam tshuam nws cov kev pab cuam lub neej.

    c
    d

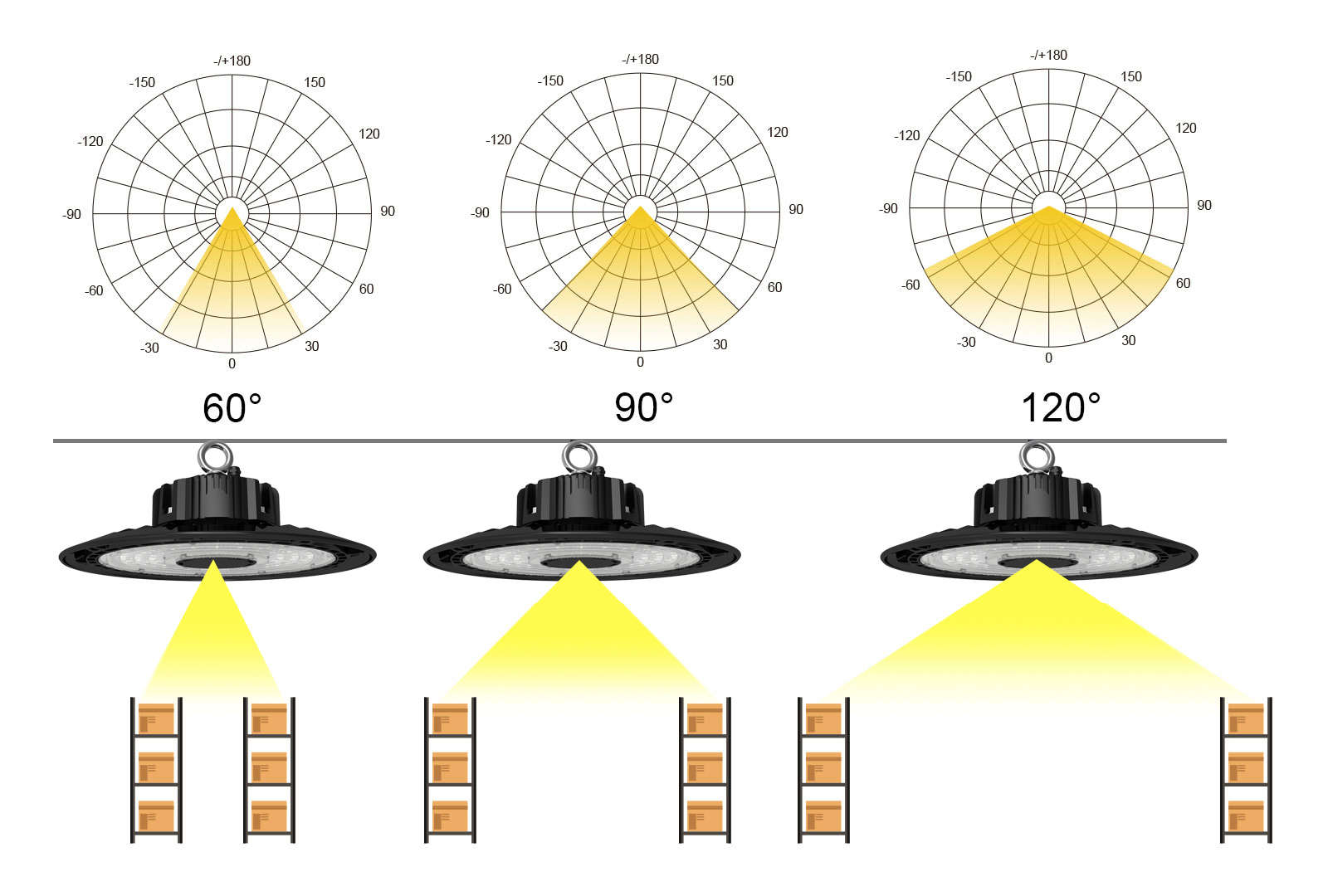

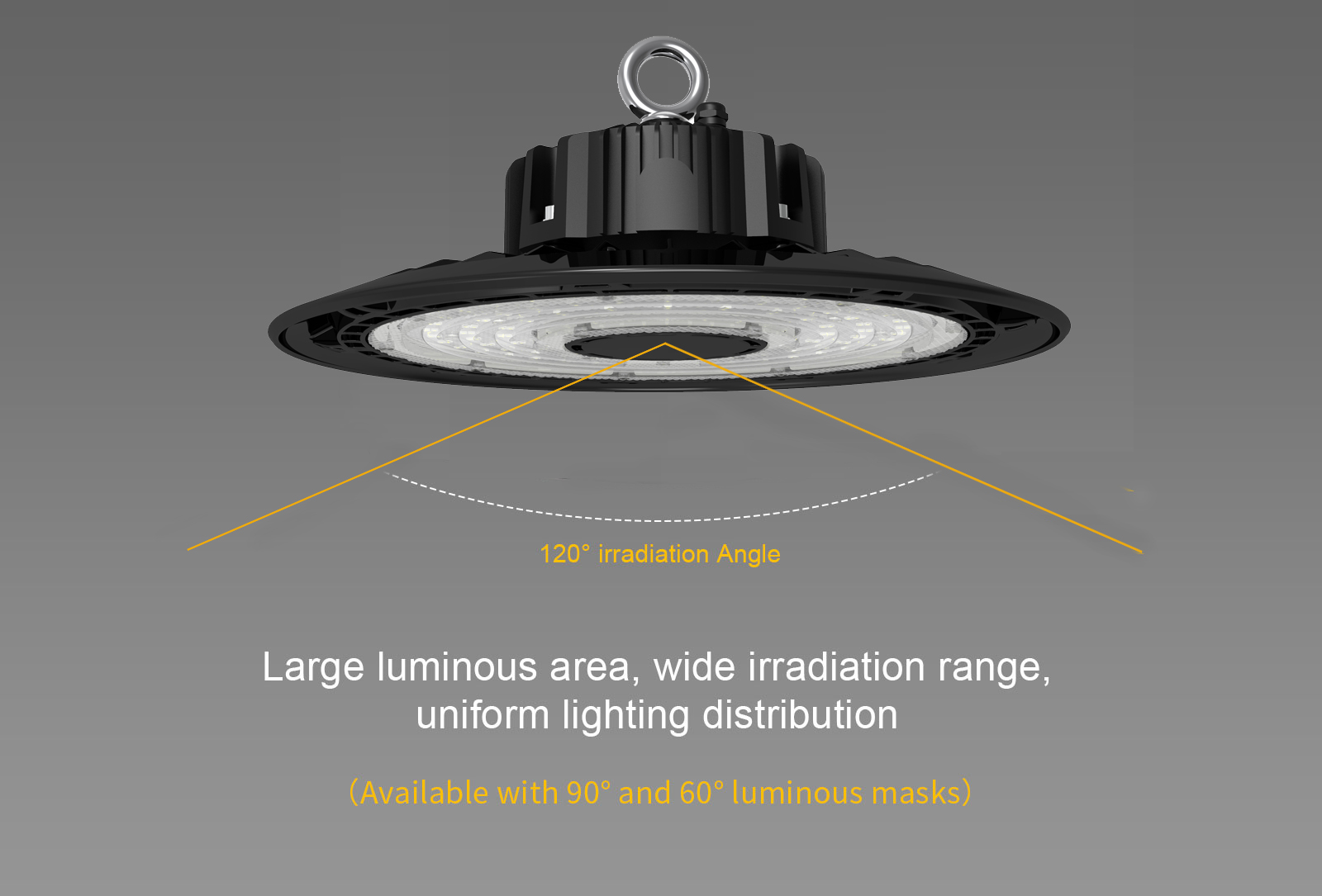

    Ultra nyias UFO LED siab bay lub teeb tawg los ntawm lub teeb faib txoj kev ntawm cov tsoos LED teeb, ua kom zoo tshaj plaws ntawm kev siv txhua lub teeb ntawm LED teeb thiab txo cov zis ntawm lwm yam teeb pom kev zoo, kom lub teeb thiab teeb pom kev zoo, Peb hom teeb tuaj yeem xaiv tau, kom ua tau raws li lub kaum sab xis ntawm yuav luag txhua qhov chaw nyob sab hauv tsev siab.

    VKS Makalo series 130-140LM ​​/ W LED UFO teeb, 50% -70% dua li cov tsoos kev lag luam thiab mining lub teeb ua kev zoo siab, kom haum rau LUB CONCEPT ntawm VKS ntsuab txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, kev ua haujlwm siab heev, kev sib tw ufo coj lub teeb.

    e

    Specification



    Qauv VKS-HB100 W-M VKS-HB150 W-M VKS-HB200W-M
    Hwj chim 100 W

    150 W

    200 W
    Cov khoom loj (mm) Φ285 * 152.6 hli Φ345 * 154.2mm Φ398.2 * 153.1mm
    Input voltage

    AC90-305V50/60Hz

    LED Hom

    Lumileds (Philips) SMD 3030

    Fais fab mov

    Meanwell / SOSEN / Inventronics tsav tsheb

    Kev ua tau zoo (lm / W)± 5%

    130-140LM ​​/ W (5000K, Ra70)

    Lumen tso zis ± 5%

    13 500 LM

    20 250 LOJ

    26 000 LM

    Beam Angle

    60° /90 °/ 120°

    CCT (K)

    3000K /4000 K/5000K/5700K

    CRI

    Ra 70(Ra80 rau kev xaiv)

    Tus nqi IP

    IP65

    PF > 0.95
    Dimming

    Nntawm- dimming(default)/1-10V Dimming/ Dali dimming

    Intelligent Control

    Motion Sensor

    Khoom siv

    Die-Cast + PC Lens

    Kev ua haujlwm Tenperature

    -40 ℃ ~65 ℃

    Cov av noo

    10% ~ 90%

    Ua kom tiav

    Hmoov Txheej

    Kev tiv thaiv Surge

    4kV kab(10 KV,20KV rau kev xaiv)

    Mounting Option

     Bracket

    Warranty

    5 Xyoo

    Q'TY (PCS) / thawv

    1 Pcs

    1 Pcs

    1 Pcs

    NW (KG / carton)

    1.42 ibkg

    2.1kg

    2.65 ibkg

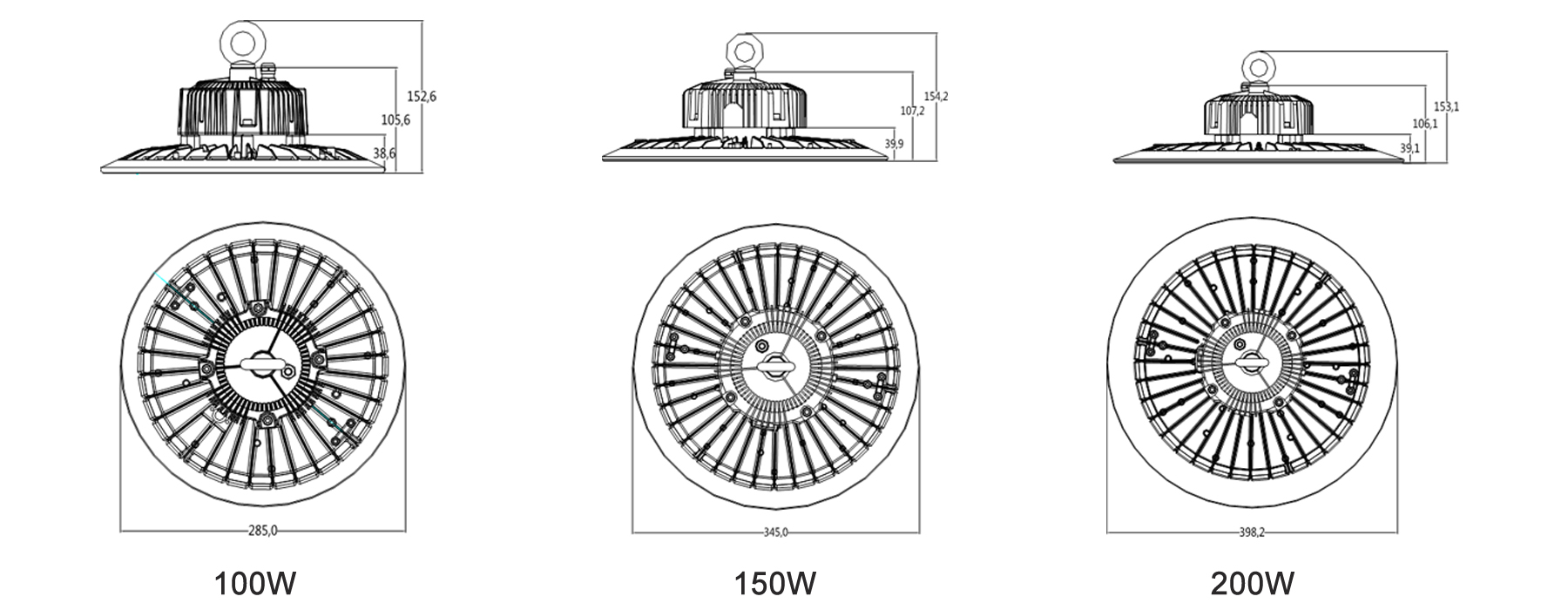

    Khoom Loj

    f

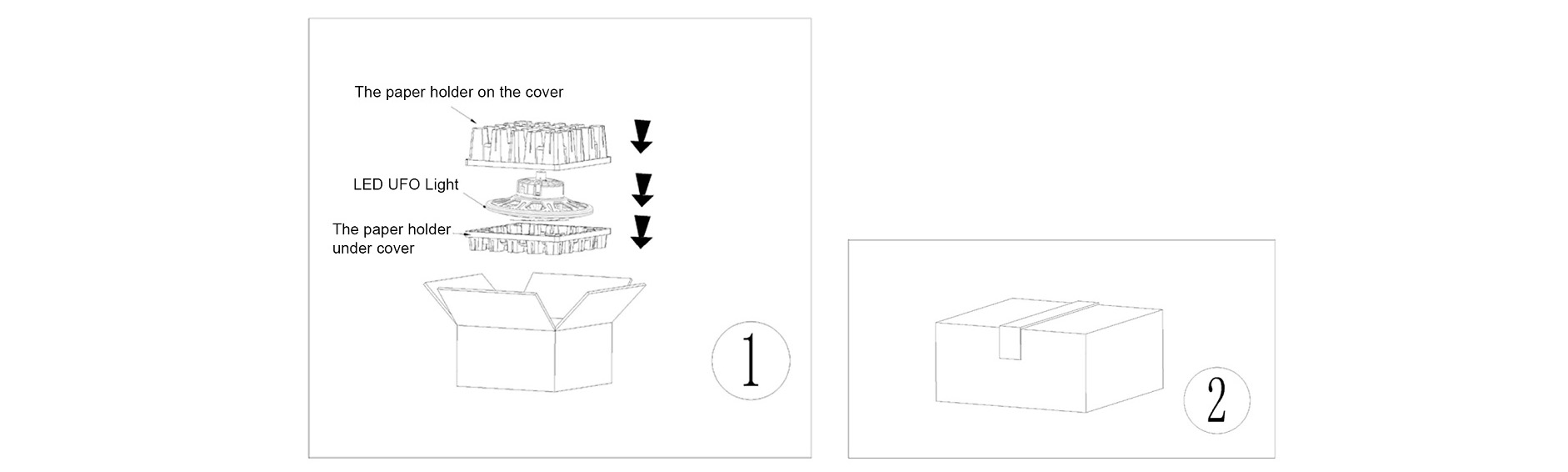

    Sab nraum zoov LED Chaw Ua Si Dej Dej Teeb Pakage

    g

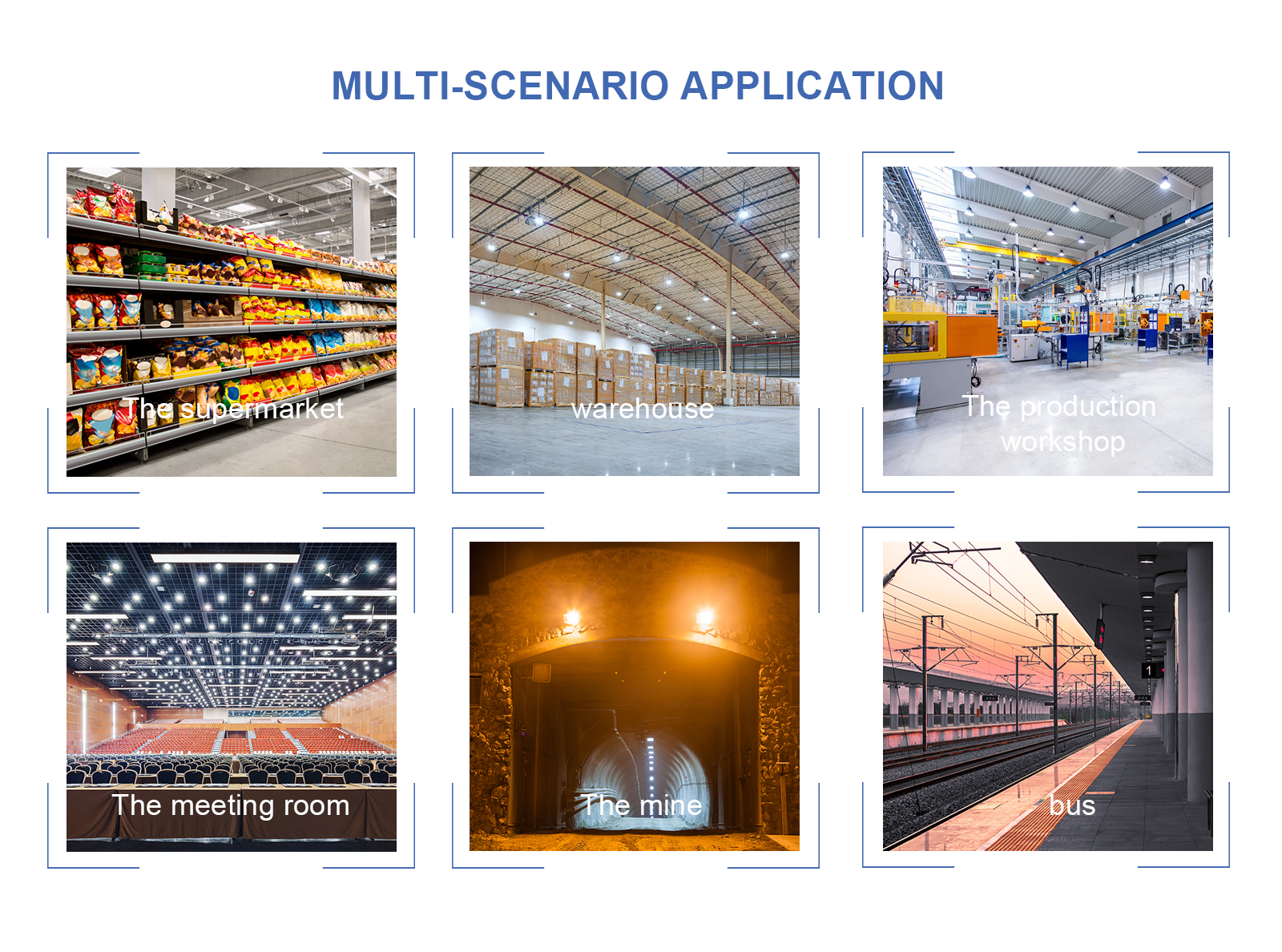

    APPLICATION

    q

    VKS Makalo series muaj high bay LED teeb pom kev zoo yog tsim los rau cov cua kub dissipation los ntawm sab saum toj mus rau hauv qab, nrog super tshav kub dissipation kev ua tau zoo, kom ntseeg tau lub neej ntawm lub teeb qhov chaw thiab lub hwj chim mov, thiab lub zog efficiency yog 50% ntau tshaj li cov zoo tib yam hlau halide teeb thiab tsis yog ncej teeb.Lub teeb alloy cov ntaub ntawv, tshwj xeeb sealing thiab txheej txheej kho kom ntseeg tau tias lub teeb yuav tsis corrode thiab tsis xeb nyob rau hauv qhov chaw ntub dej thiab kub kub, thiab cov xim rendering zoo.Tshem tawm cov tsoos teeb xim kub yog siab lossis qis los ntawm kev nyuaj siab, txhawm rau txhim kho tib neeg kev ua haujlwm zoo, siv dav hauv kev cob qhia, mines, factories, shipyards, warehouses, highway call stations, gas stations, loj supermarkets, exhibition tube, sports tube thiab lwm qhov chaw uas xav tau kev lag luam warehouse teeb pom kev zoo.

    VKS Makalo series UFO LED high bay lub teeb yeej yog siv nyob rau hauv cov chaw xws li factories thiab qhauj, rhiav, rhiav ntau, vim hais tias ntawm nws muaj zog applicability, kom tau raws li cov kev xav tau ntawm daim ntawv thov ntawm industrial sites, thiab nyob rau hauv huab mob hnyav tej yam kev mob kom ua tau yooj yim thiab ruaj khov installation, txij nkawm dawb thiab xis teeb pom kev zoo rau lub sijhawm ntev, los pab cov neeg ua haujlwm muaj teeb pom kev zoo ntawm cov chaw tsim khoom los txhim kho kev ua haujlwm thiab kev nyab xeeb ntawm cov neeg ua haujlwm, Feem ntau hais lus, muaj ntau qhov chaw siv, pib npog qee qhov kev cob qhia thiab lwm yam.Tsis tas li ntawd, exhibition halls thiab gymnasiums yog siv los ua teeb pom kev zoo.Hauv cov chaw no, peb tuaj yeem pom cov teeb ci siab bay.
